FRAME COVER (MODEL K2/K3)

GSF600S BANDIT 2001 (K1) USA (E03)

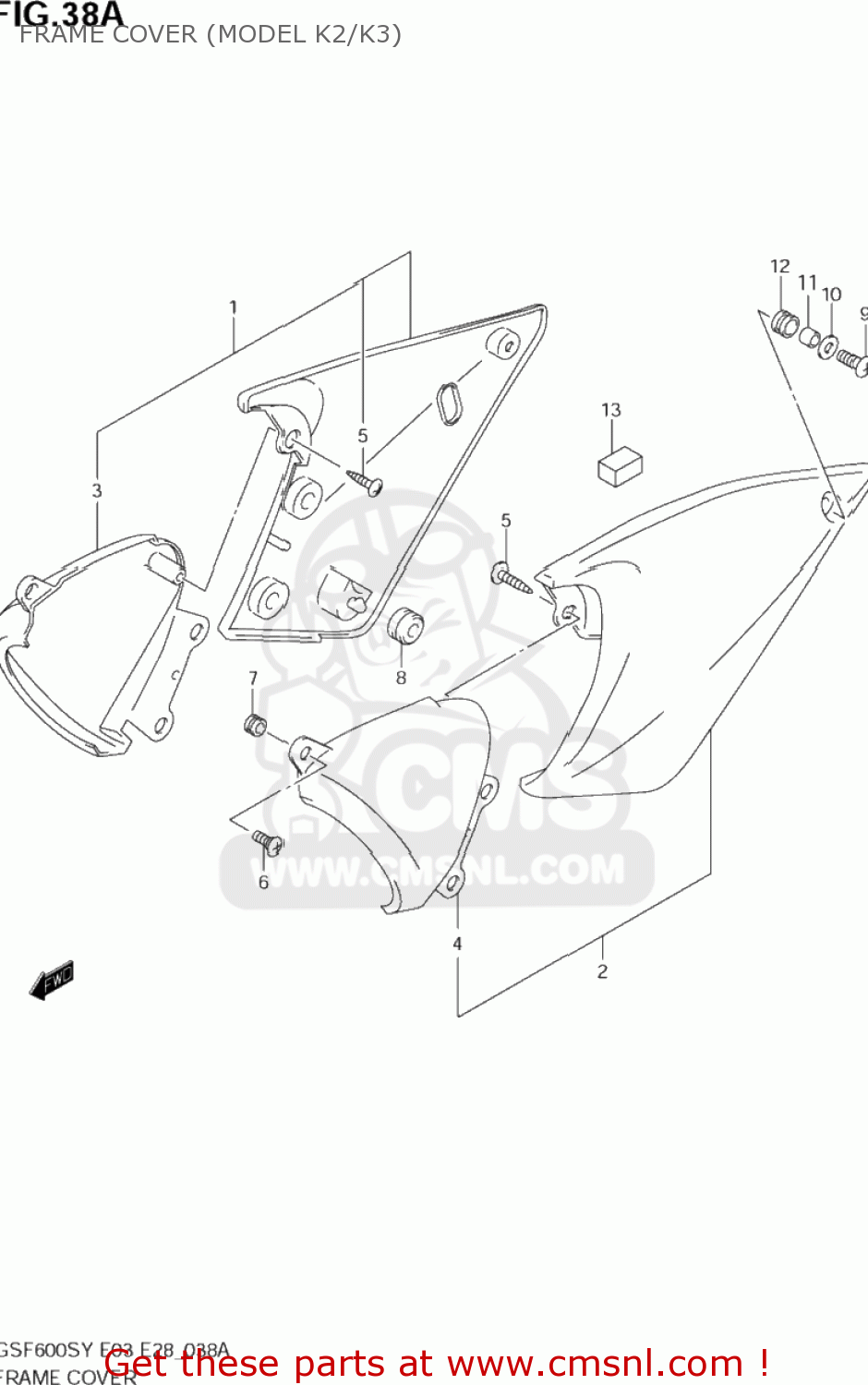

Frame cover (model k2/k3) diagram GSF600S BANDIT 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711031F00Y7L
ref: 1-1

COVER,FRAME,R(BLACK)

€ 91.00

1-2

4711031F00019
ref: 1-2

COVER,FRAME,R(BLACK)

€ 112.50

2-1

4721031F01Y7L
ref: 2-1

COVER,FRAME,L(BLACK)

€ 91.00

2-2

4721031F01019
ref: 2-2

COVER,FRAME,L(BLACK)

€ 112.50

4712131F00
ref: 3

COVER,FRAME FR,R

€ 32.50

4722131F01
ref: 4

COVER,FRAME FR,L

€ 33.50

0354115123
ref: 5
03541-1512B

SCREW

€ 2.50

0913905070
ref: 6

SCREW(5X16)

€ 7.00

4782231F00
ref: 7

CUSHION,FRAME COVER FR

€ 6.00

0932008018
ref: 8

CUSHION

€ 4.00

0913906030
ref: 9

SCREW(6X16)

€ 3.50

0916006028
ref: 10

WASHER(6.5X18X1)

€ 1.50

0918006263
ref: 11

SPACER(6.5X9X9)

€ 2.00

0932009016
ref: 12

CUSHION

€ 2.50

4716104A00
ref: 13
47191-22D00

PAD,HEAD COVER CAP

€ 3.00

FRAME COVER (MODEL K2/K3)
