HEADLAMP

GSF600S BANDIT 2001 (K1) USA (E03)

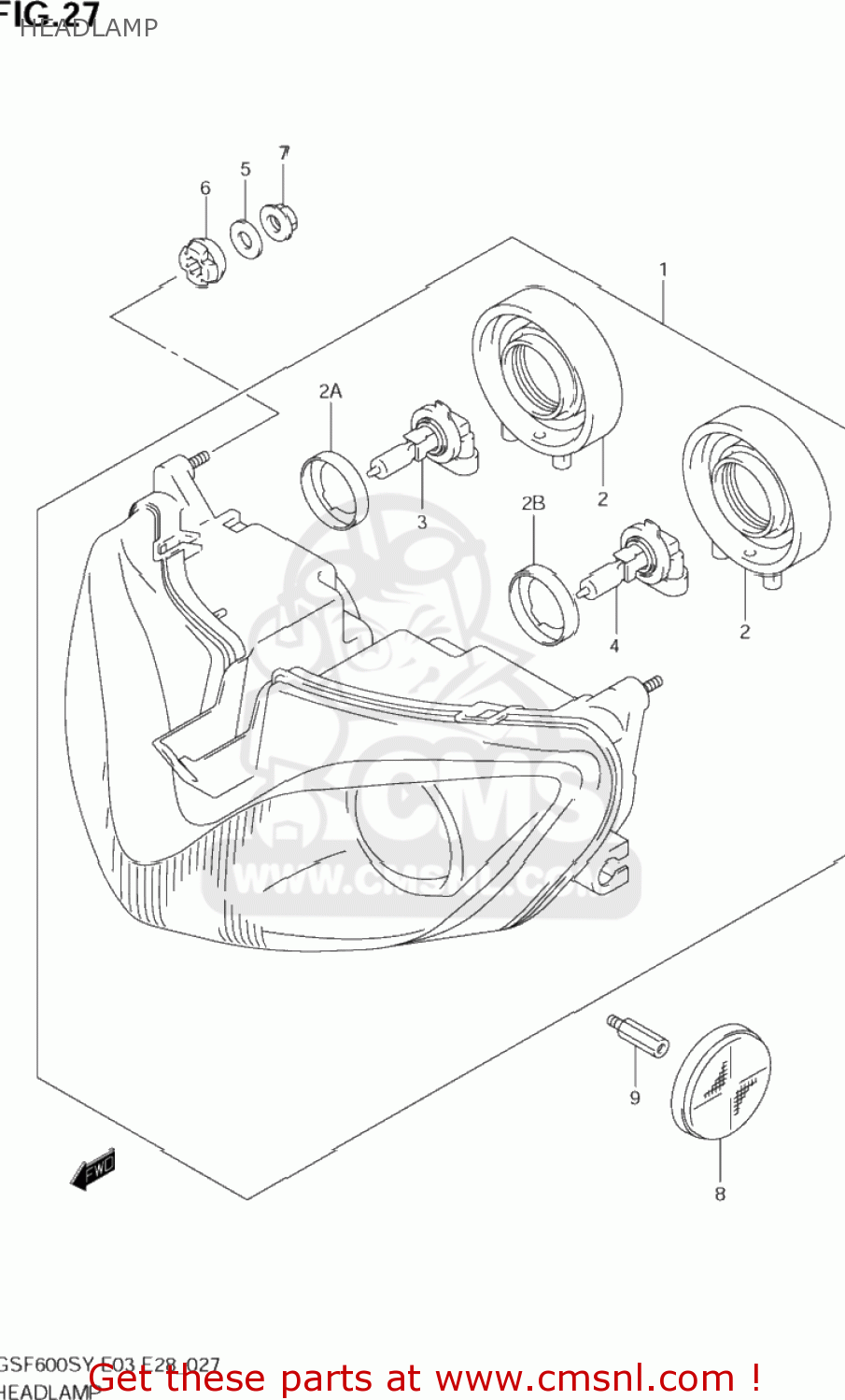

Headlamp diagram GSF600S BANDIT 2001 (K1) USA (E03)

HEADLAMP GSF600S BANDIT 2001 (K1) USA (E03)

HEADLAMP GSF600S BANDIT 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510031F30999
ref: 1

HEADLAMP ASSY

€ 685.00

2

3512524F00
ref: 2

SOCKET,COVER

€ 22.50

2A

3512731F50
ref: 2A

RING,HEADLAMP BULB,R

€ 10.50

2B

3532731F50
ref: 2B

RING,HEADLAMP BULB,L

€ 8.00

3

0947112151
ref: 3

BULB(12V60W,HB3,#9005)

€ 56.50

3

0947112151
ref: 3

BULB(12V60W,HB3,#9005)

€ 56.50

4

0947112150
ref: 4

BULB(12V51W,HB4,P22D)

€ 14.50

4

0947112150
ref: 4

BULB(12V51W,HB4,P22D)

€ 14.50

5

0916006088
ref: 5

WASHER(6.5X20X1.6)

€ 2.00

6

0932009010
ref: 6

CUSHION

€ 2.50

7

0831610063
ref: 7
08316-1006B

NUT

€ 2.50

8

3595014A00
ref: 8

REFLECTOR,REFLEX FR

€ 15.00

9-1

3595905900
ref: 9-1
09119-05023

BOLT,FRONT SIDE,REAR

€ 7.50

9-2

0911905023
ref: 9-2

BOLT(5X10)

€ 7.50
