FUEL COCK

GSF600S BANDIT 2001 (K1) USA (E03)

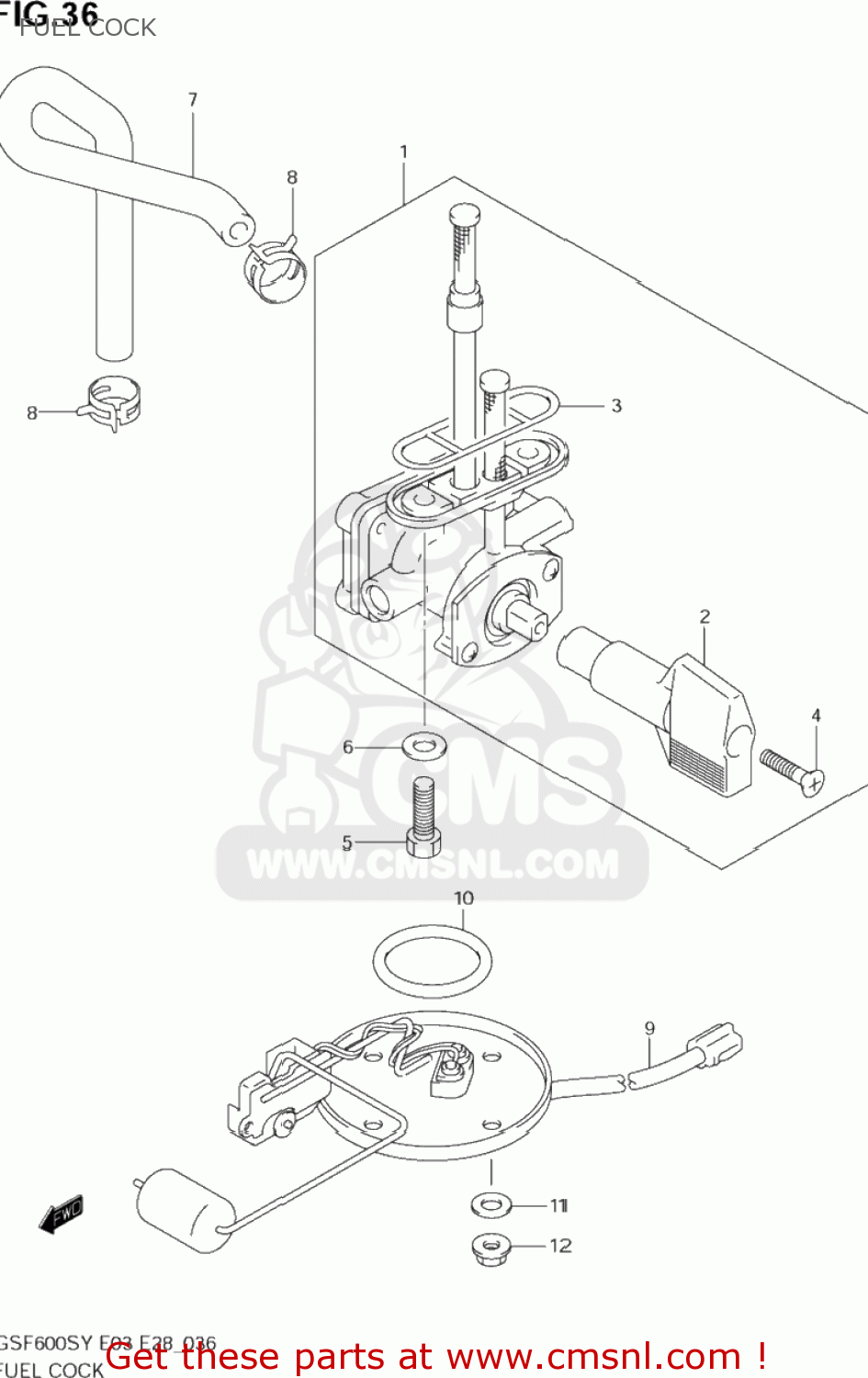

Fuel cock diagram GSF600S BANDIT 2001 (K1) USA (E03)

FUEL COCK GSF600S BANDIT 2001 (K1) USA (E03)

FUEL COCK GSF600S BANDIT 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4430026E01
ref: 1

COCK ASSY,FUEL

€ 124.00

2

4430626E00
ref: 2

LEVER,FUEL COCK

€ 21.50

3

4434887420
ref: 3

GASKET,JOINT (NAS)

€ 5.00

4

0212204203
ref: 4
02122-0420A

SCREW

€ 2.00

5-1

3482603F00
ref: 5-1
09128-06086

BOLT,FUEL LEVEL GAUGE

€ 3.00

5-2

0912806086
ref: 5-2

BOLT(6X20)

€ 3.00

6

0916806026
ref: 6

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

7

0935570125600
ref: 7
44421-12FR0

HOSE(7X12X600)

€ 26.00

8

0940111407
ref: 8
09401-11415

CLIP

€ 2.50

9

3481031F00
ref: 9

GAUGE ASSY,FUEL LEVEL

€ 171.00

10

3482531F00
ref: 10

O RING

€ 4.50

11

0916006128
ref: 11

WASHER(6.5X15X1.6)

€ 2.50

12

0831921063
ref: 12
08319-2106B

NUT

€ 2.50
