AIR CLEANER (MODEL Z)

GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

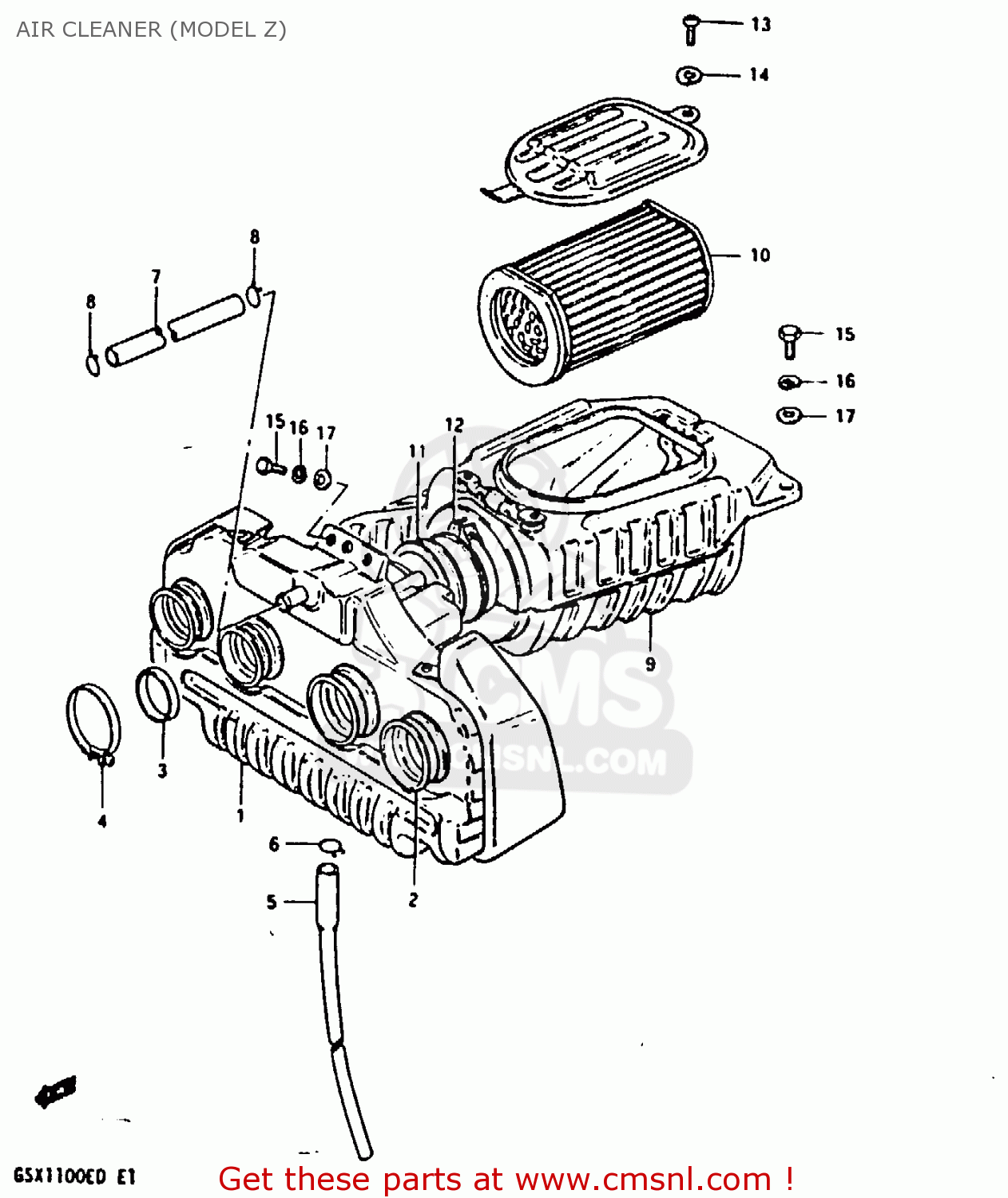

Air cleaner (model z) diagram GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

AIR CLEANER (MODEL Z) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
AIR CLEANER (MODEL Z) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
AIR CLEANER (MODEL Z) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1
1371049500
ref: 1
CASE COMP,AIR CLEANER
€ 0.00
2
1388149020
ref: 2
TUBE,AIR CLEANER OUTLET
1388149020
€ 16.00
3
1388547030
ref: 3
RING,CARBURETOR AIR INLET HOSE
1388547030
€ 8.00
4
0940264306
ref: 4
CLAMP
€ 6.00
5
1387000010
ref: 5
DRAIN TUBE
€ 13.50
6
0940114301
ref: 6
CLIP
0940114301
€ 2.00
7
1385100220
ref: 7
TUBE,BREATHER
1385100220
€ 13.50
8
0940114301
ref: 8
CLIP
0940114301
€ 2.00
9
1370049840
ref: 9
CASE SET, REAR
€ 181.50
10
1378049310
ref: 10
FILTER ASSY
1378049310
€ 29.50
11
1379549000
ref: 11
HOSE,AIR CLEANER
1379549000
€ 34.50
12
1379649000
ref: 12
BAND
1379649000
€ 6.00
13
0211205128
ref: 13
SCREW
€ 2.50
14
0832121058
ref: 14
LOCK WASHER
0832121058
€ 2.00
15
0110706208
ref: 15
BOLT
0110706208
€ 2.00
16
0832121068
ref: 16
LOCK WASHER
0832121068
€ 2.50
17
0832221068
ref: 17
WASHER
0832221068
€ 2.00
