CRANKCASE COVER (MODEL D)

GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

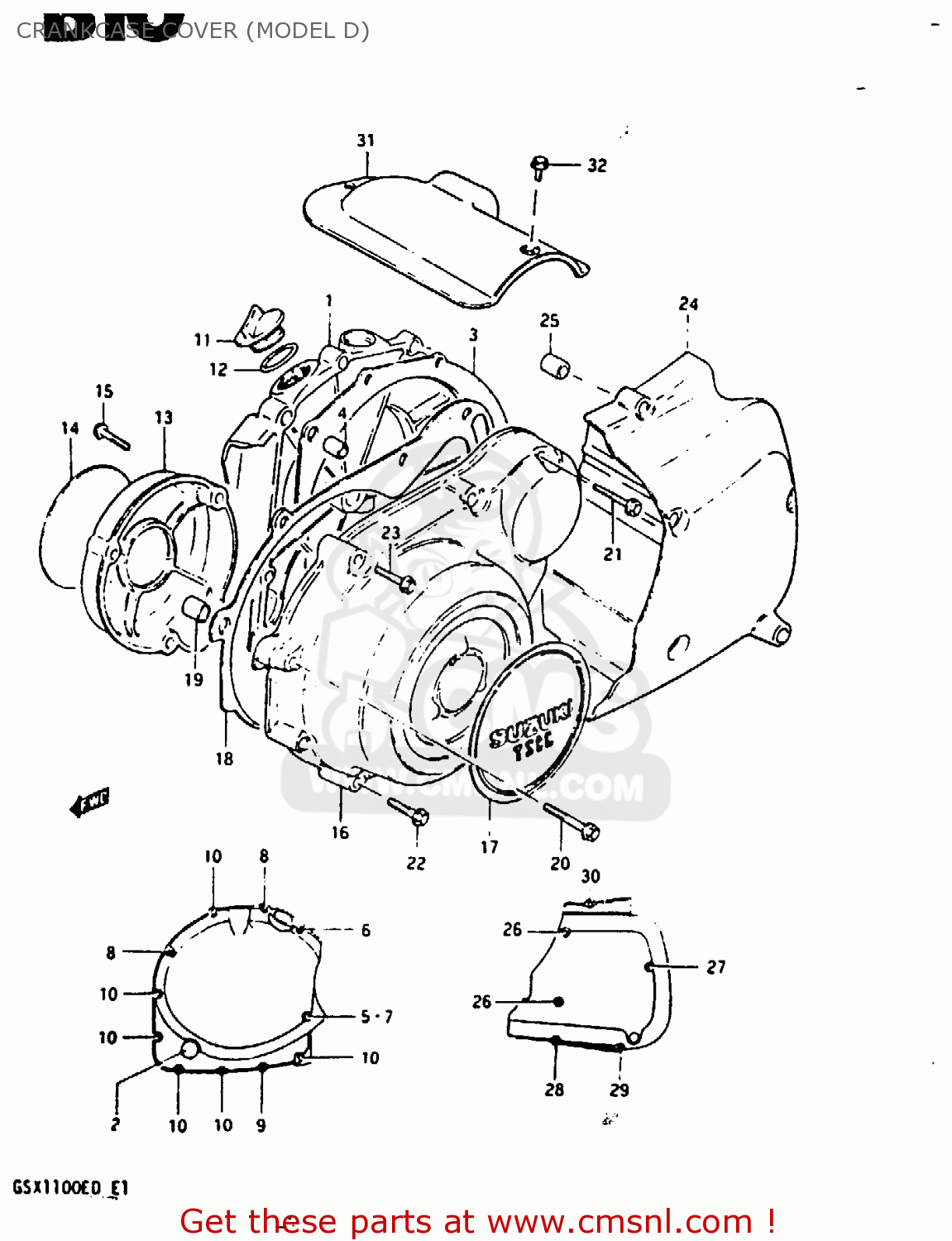

Crankcase cover (model d) diagram GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CRANKCASE COVER (MODEL D) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CRANKCASE COVER (MODEL D) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

1134049220
ref: 1

COVER,CLUTCH

€ 260.50

2

1197145010
ref: 2

LENS,OIL LEVEL CHECK

€ 13.00

3

1148249201
ref: 3

GASKET,CLUTCH COVER (MCA)

€ 39.00

4

0421109129
ref: 4

PIN

€ 2.00

5

0916806009
ref: 5

GASKET (NAS)

€ 2.00

6

0154706405
ref: 6

BOLT (6X40)

€ 3.00

7

0154706355
ref: 7

BOLT (6X35)

€ 3.00

8

0154706305
ref: 8

BOLT (6*30)

€ 2.50

9

0154706255
ref: 9

BOLT (6X25)

€ 2.50

10

0154706205
ref: 10

BOLT 6X20

€ 2.50

11

0925930001
ref: 11

CAP

€ 8.50

12

0928032005
ref: 12

O RING(D:2.2,ID:32)

€ 2.00

13

1138145412
ref: 13

COVER,CONTACT BREAKER

€ 54.00

14

6823549500
ref: 14

EMBLEM

€ 21.50

15

0154705305
ref: 15

BOLT (5X30)

€ 2.50

16

1135149220
ref: 16

COVER,MAGNETO

€ 200.50

17

6823349500
ref: 17

EMBLEM,MAGNETO COVER

€ 23.50

18

1148349200
ref: 18

GASKET,MAGNETO COVER (MCA)

€ 13.00

19

0920613001
ref: 19

PIN

€ 2.50

20

0154706455
ref: 20

BOLT (6X45)

€ 3.00

21

0154706405
ref: 21

BOLT (6X40)

€ 3.00

22

0154706355
ref: 22

BOLT (6X35)

€ 3.00

23

0154706308
ref: 23

BOLT (6X30)

€ 2.50

24

1136045411
ref: 24

COVER,ENGINE SPROCKET

€ 141.50

25

0421109129
ref: 25

PIN

€ 2.00

26

0154706955
ref: 26

BOLT (6X95)

€ 3.50

27

0154706855
ref: 27

BOLT (6X85)

€ 2.50

28

0154706705
ref: 28

BOLT (6X70)

€ 3.00

29

0154706555
ref: 29

BOLT (6X55)

€ 3.00

30

0154706305
ref: 30

BOLT (6*30)

€ 2.50

31

1138245410
ref: 31

COVER,STARTER MOTOR

€ 35.00

32

0154705085
ref: 32

BOLT (5X8)

€ 2.50
