STEERING STEM (GSX1100EZ)

GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

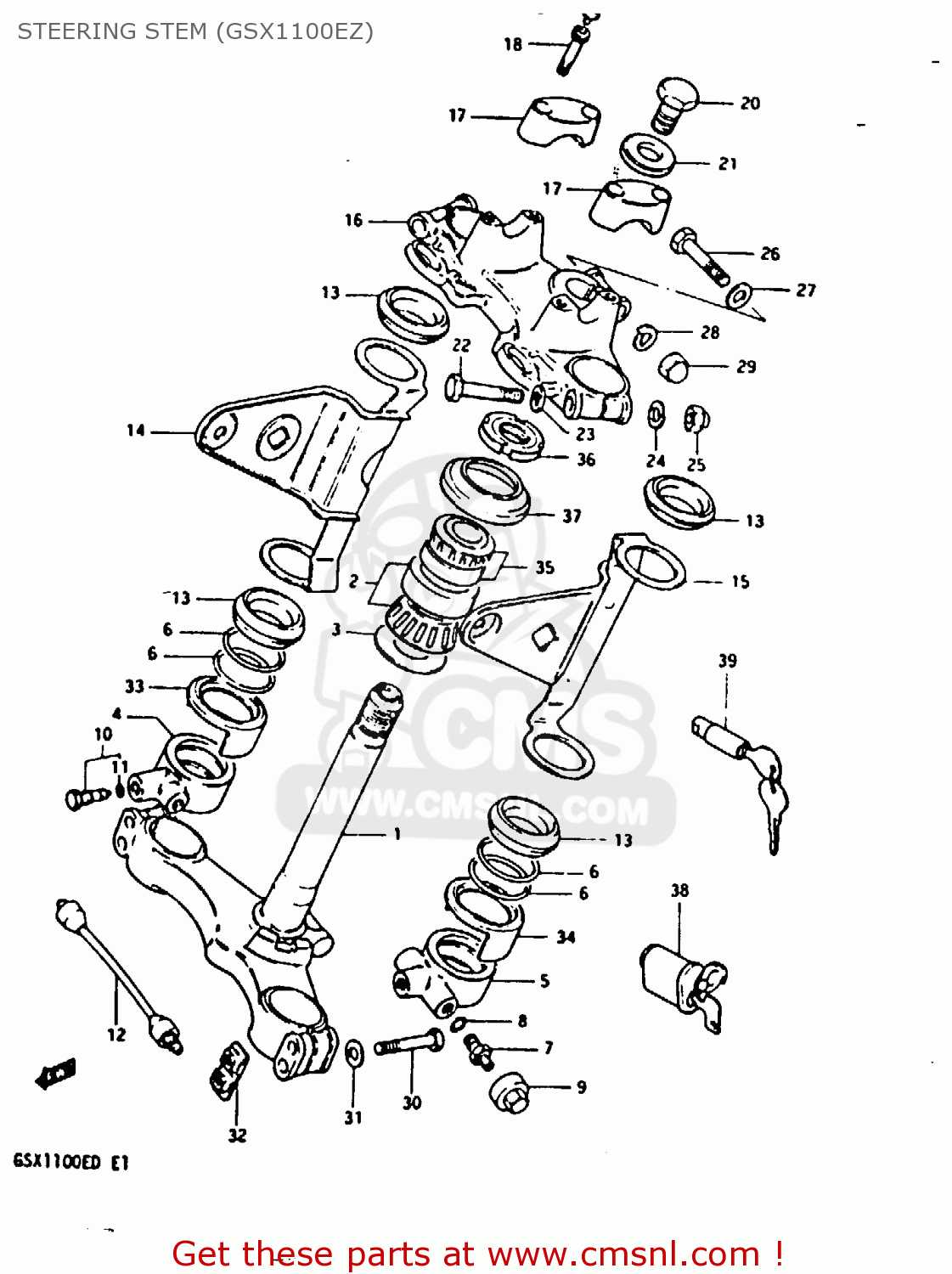

Steering stem (gsx1100ez) diagram GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

STEERING STEM (GSX1100EZ) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

STEERING STEM (GSX1100EZ) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

5141049520291
ref: 1

STEM,STEERING

€ 140.00

2

0926530005
ref: 2

BEARING

€ 49.50

3

0821130402
ref: 3

WASHER,THRUST

€ 4.00

4

5143149200291
ref: 4

JOINT,AIR,RIGHT

€ 38.50

5

5143249200291
ref: 5

BRACKET,FORK CONNECTING

€ 48.50

6

5143649200
ref: 6

O RING

€ 3.00

7

5129349001
ref: 7

VALVE

€ 18.00

8

5111741211
ref: 8

O RING

€ 6.50

9

5129449000
ref: 9

CAP,VALVE

€ 22.50

10

5143449200
ref: 10

VALVE,STOP

€ 8.00

11

5143549200
ref: 11

O RING

€ 2.50

12

5143349500
ref: 12

HOSE,FORK CONNECTING

€ 22.50

13

5155349000
ref: 13

CUSHION,HEADLAMP BRACKET

€ 4.50

14

5153049500291
ref: 14

BRACKET,HEADLAMP,RIGHT

€ 112.00

15

5154049500291
ref: 15

BRACKET,HEADLAMP,LEFT

€ 56.00

16

5131149500291
ref: 16

HEAD,STEERING STEM

€ 198.50

17

5621149500291
ref: 17

HOLDER,HANDLEBAR

€ 26.00

18

0910608013
ref: 18

BOLT

€ 3.00

19

0925006004
ref: 19

CAP(OD:14.5)

€ 1.50

20

5135349300A
ref: 20

NUT,STEM HEAD

€ 11.50

21

5135649300A
ref: 21

WASHER,STEERING STEM B

€ 4.00

22

0110710558
ref: 22

BOLT 10X55

€ 3.50

23

0832221108
ref: 23

WASHER

€ 2.50

24

0832121108
ref: 24

LOCK WASHER

€ 2.00

25

0831311105
ref: 25

NUT 10MM

€ 2.00

26

0110708508
ref: 26

BOLT 8X50

€ 3.00

27

0832221088
ref: 27

WASHER

€ 2.00

28

0832121088
ref: 28

LOCK WASHER

€ 2.00

29

0831311085
ref: 29

NUT,M8X1.25X12

€ 2.00

30

0110708558
ref: 30

BOLT 8X55

€ 3.00

31

0832221088
ref: 31

WASHER

€ 2.00

32

5145849000
ref: 32

NUT,FR FORK INNER TUBE

€ 5.00

33

5155449500291
ref: 33

COVER,FORK BRACKET,RIGHT

€ 12.00

34

5155749500291
ref: 34

COVER,FORK BRACKET,LEFT

€ 12.00

35

0926525008
ref: 35

TAPER,ROLLER BEARING

€ 48.50

36

5163134200
ref: 36

NUT,STEERING STEM

€ 23.00

37

5164340502
ref: 37

DUST SEAL,STEERING UPR

€ 8.00

38

NOTUSED
ref: 38

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

39

NOTUSED
ref: 39

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00
