STARTER CLUTCH

GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

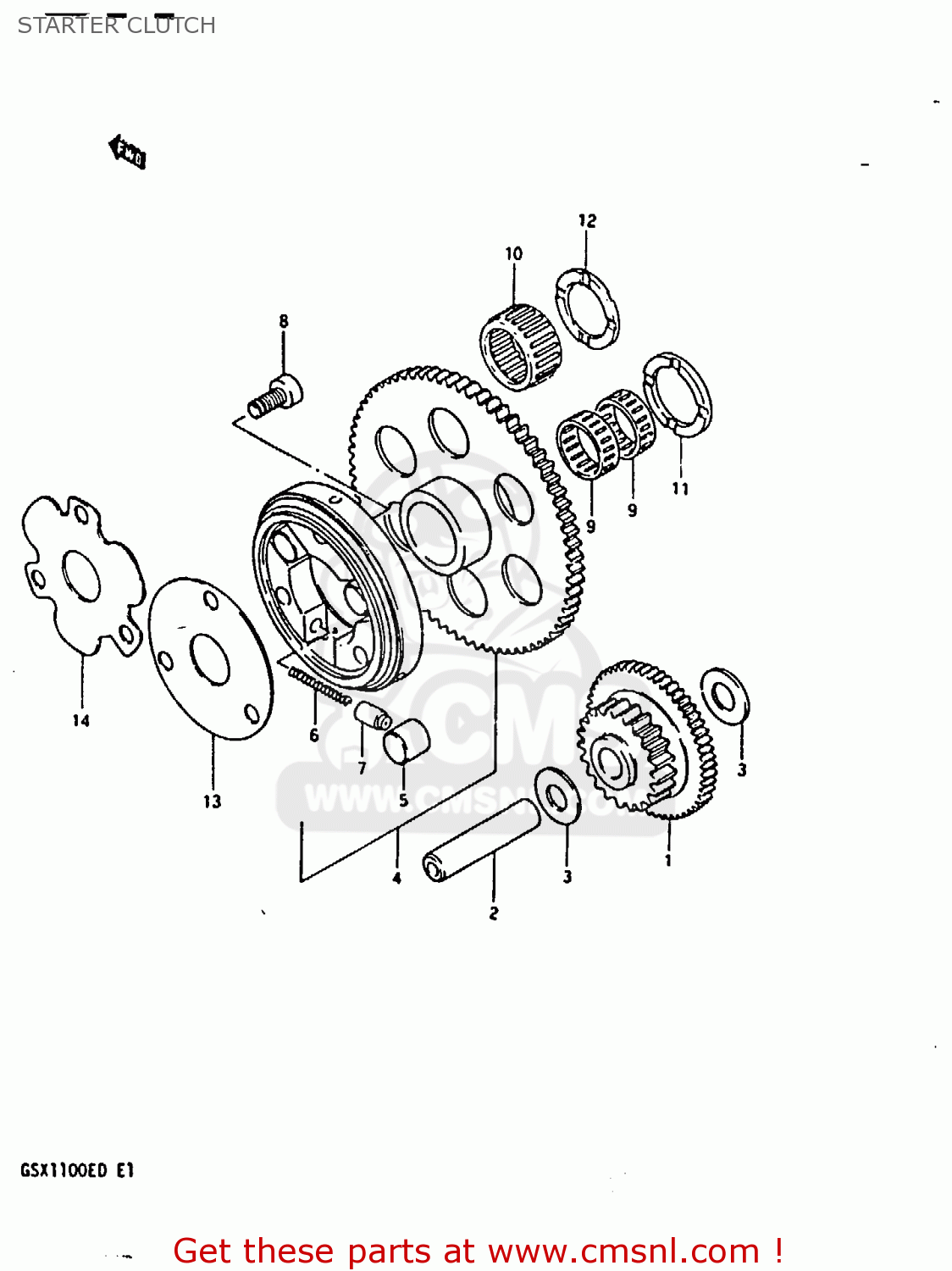

Starter clutch diagram GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

STARTER CLUTCH GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

STARTER CLUTCH GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

1261149202
ref: 1

GEAR,STARTER IDLE

€ 68.00

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

0916013003
ref: 3

WASHER(13.3X25X0.85)

€ 2.50

4-1

1260049822
ref: 4-1
MODEL Z

CLUTCH SET,STARTER

€ 309.00

4-2

1260049860
ref: 4-2
MODEL D

CLUTCH SET,STARTER

€ 287.00

5

0926115001
ref: 5

ROLLER(15X13)

€ 3.50

6

0944004015
ref: 6

SPRING

€ 2.50

7

1263331000
ref: 7

PIECE,PUSH

€ 9.00

8

0910608006
ref: 8

BOLT

€ 3.00

9

0926325029
ref: 9
MODEL Z

BEARING

€ 17.00

10

0926329005
ref: 10
MODEL D

BEARING(29X35X24)

€ 22.50

11

0916025019
ref: 11
MODEL Z

WASHER(25X38X2.5)

€ 10.00

12

0916029010
ref: 12
MODEL D

WASHER(29X41X2.5)

€ 9.00

13

1264949200
ref: 13
MODEL Z

SHIM,STARTER CLUTCH HUB

€ 11.00

14

1264949600
ref: 14
MODEL D

SHIM,STARTER CLUTCH HUB

€ 22.00
