FRONT WHEEL (GSX1100Z/D/XD)

GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

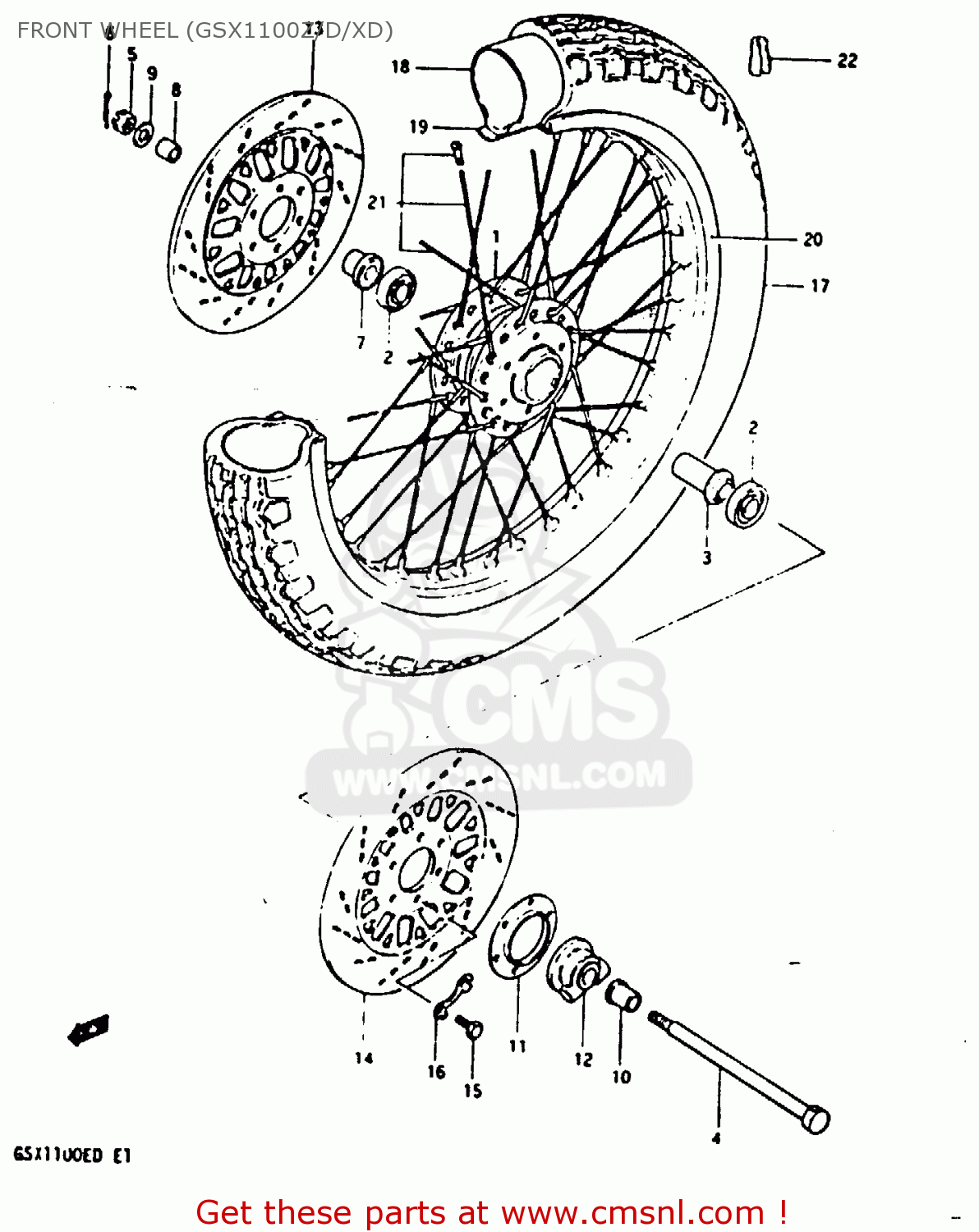

Front wheel (gsx1100z/d/xd) diagram GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRONT WHEEL (GSX1100Z/D/XD) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRONT WHEEL (GSX1100Z/D/XD) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

5411147001
ref: 1

DRUM,FRONT HUB

€ 194.50

2

0812363027
ref: 2

BEARING

€ 19.00

3

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

4

5471149000
ref: 4

AXLE,FR

€ 79.50

5

0831431128
ref: 5

NUT 12MM

€ 2.00

6

0411130308
ref: 6

COTTER PIN

€ 1.50

7

5474018402
ref: 7

SPACER,FR AXLE,R

€ 18.50

8

5474149300
ref: 8

SPACER,FR AXLE,R

€ 19.00

9

0832221128
ref: 9

WASHER

€ 2.00

10

5474149000
ref: 10

SPACER,FR AXLE,L

€ 16.50

11

5487145010
ref: 11

DUST SEAL,SPEEDOMETER GEAR BOX

€ 21.00

12

5460018401
ref: 12

BOX ASSEMBLY,SPEEDOMETER GEAR

€ 90.50

13

5921145250
ref: 13

DISC,FR BRAKE,R

€ 149.00

14

5922145250
ref: 14

DISC,FR BRAKE,L

€ 149.00

15

0910008140
ref: 15

BOLT(8X25)

€ 2.00

16

0916908016
ref: 16

WASHER

€ 3.50

17-1

5510049530
ref: 17-1

TIRE,FRONT

€ 319.00

17-2

NOTUSED
ref: 17-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

17-3

5510049510
ref: 17-3
MODEL D/XD

TIRE,FRONT

€ 319.00

18

5520015030
ref: 18

TUBE,INNER

€ 41.00

19-1

5526115030
ref: 19-1

PROTECTOR,WHEEL,INNER

€ 0.00

19-2

5526115010
ref: 19-2
MODEL D/XD

PROTECTOR,WHL INR TUBE

€ 2.50

20

5531149500
ref: 20

RIM, FRONT WHEEL (1.85-19)

€ 0.00

21

5530049810
ref: 21

SPOKE SET,FRONT

€ 45.50

22-1

5541111000
ref: 22-1

BALANCER,WHEEL (B)

€ 4.50

22-2

5541211000
ref: 22-2

BALANCER,WHEEL (30G)

€ 8.00
