COWLING (GSX1100ESD)

GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

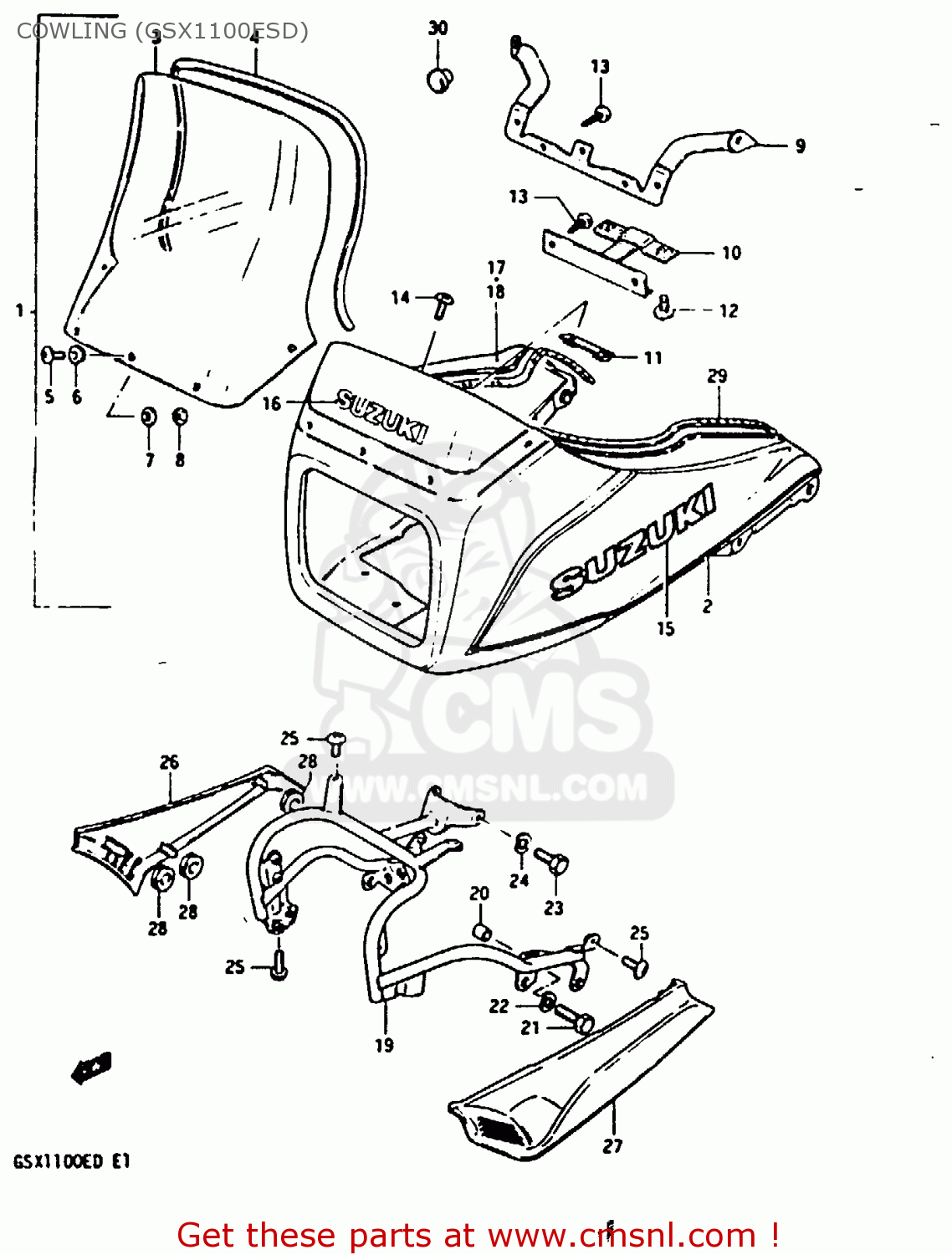

Cowling (gsx1100esd) diagram GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

COWLING (GSX1100ESD) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

COWLING (GSX1100ESD) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1-1

944004950086S
ref: 1-1
(RED/BLACK)

COWLING ASSY

€ 886.00

1-2

944004950091J
ref: 1-2
(BLUE/WHITE)

COWLING ASSY

€ 886.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-4

NOTUSED
ref: 1-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-1

681904950082S
ref: 2-1
FOR 86S

TAPE SET,COWLING

€ 0.00

2-2

681904950093K
ref: 2-2
FOR 91J

TAPE SET,COWLING

€ 0.00

3-1

9461131310
ref: 3-1

WINDOW

€ 318.50

3-2

NOTUSED
ref: 3-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4-1

9463131310
ref: 4-1

MOLDING

€ 18.00

4-2

NOTUSED
ref: 4-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

5

0913905023
ref: 5

SCREW(5X20)

€ 2.00

6

0932005008
ref: 6

CUSHION

€ 5.00

7

0832221058
ref: 7

WASHER

€ 2.50

8

0831011058
ref: 8

NUT

€ 2.50

9

9453031310
ref: 9

BRACE,COWLING,UPPER

€ 18.50

10

9454031310
ref: 10

BRACE,COWLING,LOWER

€ 10.00

11

9455031310
ref: 11

BRACKET

€ 2.50

12

0214206108
ref: 12

SCREW

€ 2.00

13

0321105105
ref: 13

SCREW

€ 1.00

14

0214205108
ref: 14

SCREW RH & LH

€ 2.50

15-1

681314955060D
ref: 15-1
FOR 82S

EMBLEM

€ 10.50

15-2

681314955073H
ref: 15-2
FOR 91J

EMBLEM

€ 11.50

16

6827143400064
ref: 16

EMBLEM,HEADLAMP

€ 4.00

17

6819731300
ref: 17

TAPE,RIGHT

€ 8.50

18

6819831300
ref: 18

TAPE,LEFT

€ 9.50

19

9451031310
ref: 19

BRACE,COWLING

€ 98.00

20

9454931310
ref: 20

SPACER,COWLING BRACE

€ 10.50

21

0110708308
ref: 21

BOLT (8X30)

€ 2.50

22

0832121088
ref: 22

LOCK WASHER

€ 2.00

23

0110708168
ref: 23

BOLT

€ 2.00

24

0832121088
ref: 24

LOCK WASHER

€ 2.00

25

0214206125
ref: 25

SCREW 6X12

€ 2.00

26-1

944314950013Z
ref: 26-1
FOR 82S

COVER,COWLING,RIGHT

€ 36.50

26-2

944314950016D
ref: 26-2
FOR 91J

COVER,COWLING,RIGHT

€ 36.50

27-1

944414950013Z
ref: 27-1
FOR 82S

COVER,COWLING,LEFT

€ 36.50

27-2

944414950016D
ref: 27-2
FOR 91J

COVER,COWLING,LEFT

€ 36.50

28

0932008018
ref: 28

CUSHION

€ 4.00

29

9459331310
ref: 29

MOLDING,FUEL TANK

€ 32.00

30

0925006005
ref: 30
GSX1100 D, ED, XD, E

PLUG(OD:12)

€ 2.00
