CHAIN CASE - REAR SHOCK ABSORBER (GSX1100Z/D/XD)

GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

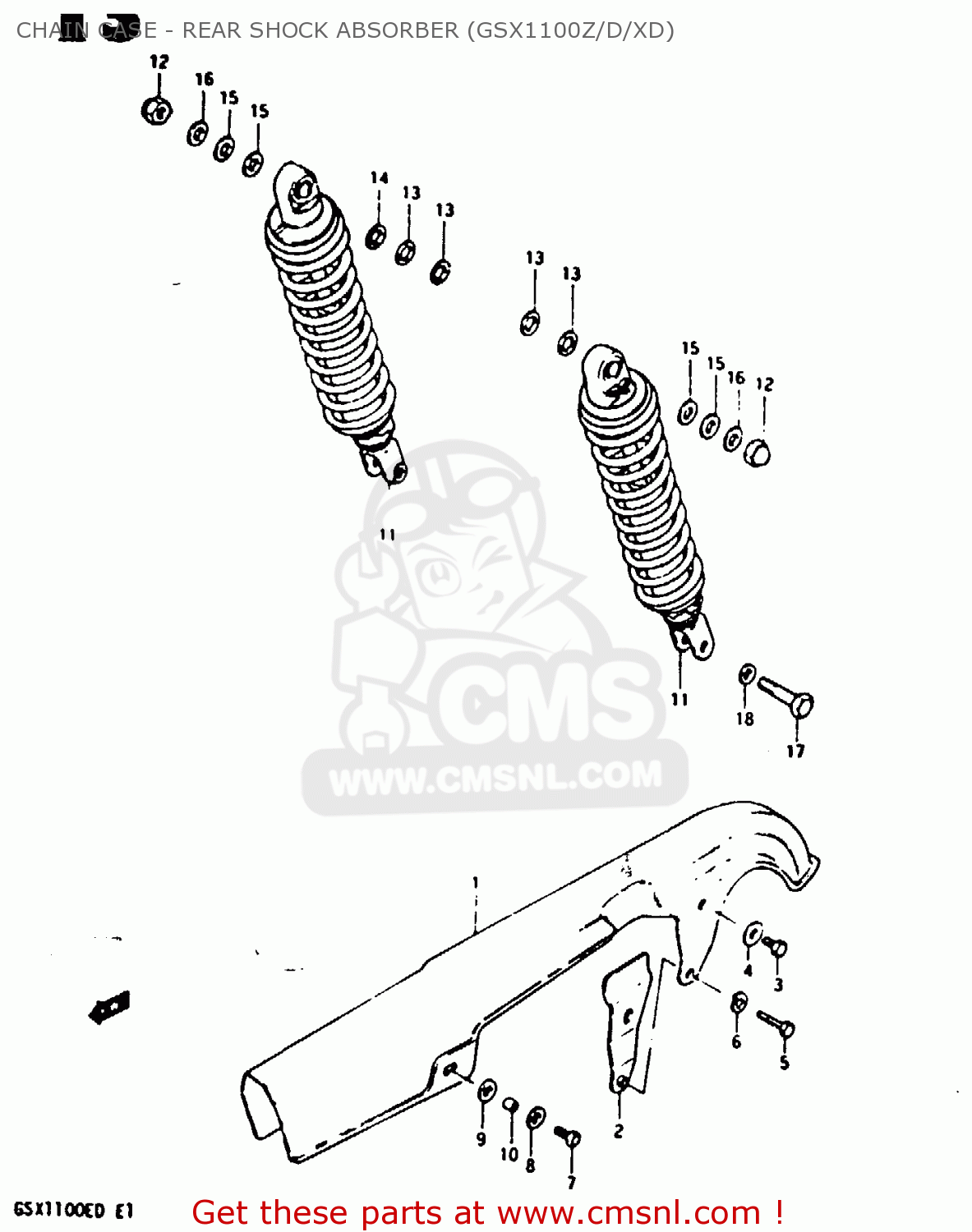

Chain case - rear shock absorber (gsx1100z/d/xd) diagram GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CHAIN CASE - REAR SHOCK ABSORBER (GSX1100Z/D/XD) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CHAIN CASE - REAR SHOCK ABSORBER (GSX1100Z/D/XD) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

6131149002019
ref: 1

CASE,CHAIN

€ 121.00

2

6138145000
ref: 2

REINFORCEMENT,CHAIN CASE

€ 42.00

3

0910006011
ref: 3

BOLT(6X8)

€ 2.50

4

0916906010
ref: 4

WASHER

€ 3.00

5

0110706258
ref: 5

BOLT

€ 2.00

6

0832121068
ref: 6

LOCK WASHER

€ 2.50

7

0110706108
ref: 7

BOLT

€ 2.00

8

0916006028
ref: 8

WASHER(6.5X18X1)

€ 1.50

9

0932008005
ref: 9

CUSHION

€ 2.00

10

0918006032
ref: 10

SPACER (6.1X8X5.2)

€ 2.50

11-1

6210049530
ref: 11-1
MODEL Z

SHOCK ABSORBER, REAR

€ 0.00

11-2

NOTUSED
ref: 11-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11-3

6210049560
ref: 11-3
MODEL D (BLACK)

SHOCK ABSORBER, REAR

€ 0.00

11-4

NOTUSED
ref: 11-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12

0831311108
ref: 12

NUT, LOWER LH

€ 2.50

13

0832211128
ref: 13

WASHER

€ 2.00

14

0916012012
ref: 14

WASHER (12.5X24X3.2)

€ 2.50

15

0916010001
ref: 15

WASHER

€ 2.00

16

0916010033
ref: 16

WASHER(10.5X24X3.2)

€ 2.00

17

0910410002
ref: 17

BOLT(10X36)

€ 4.50

18

0832211108
ref: 18

WASHER

€ 2.50
