RIGHT HANDLE SWITCH (MODEL D)

GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

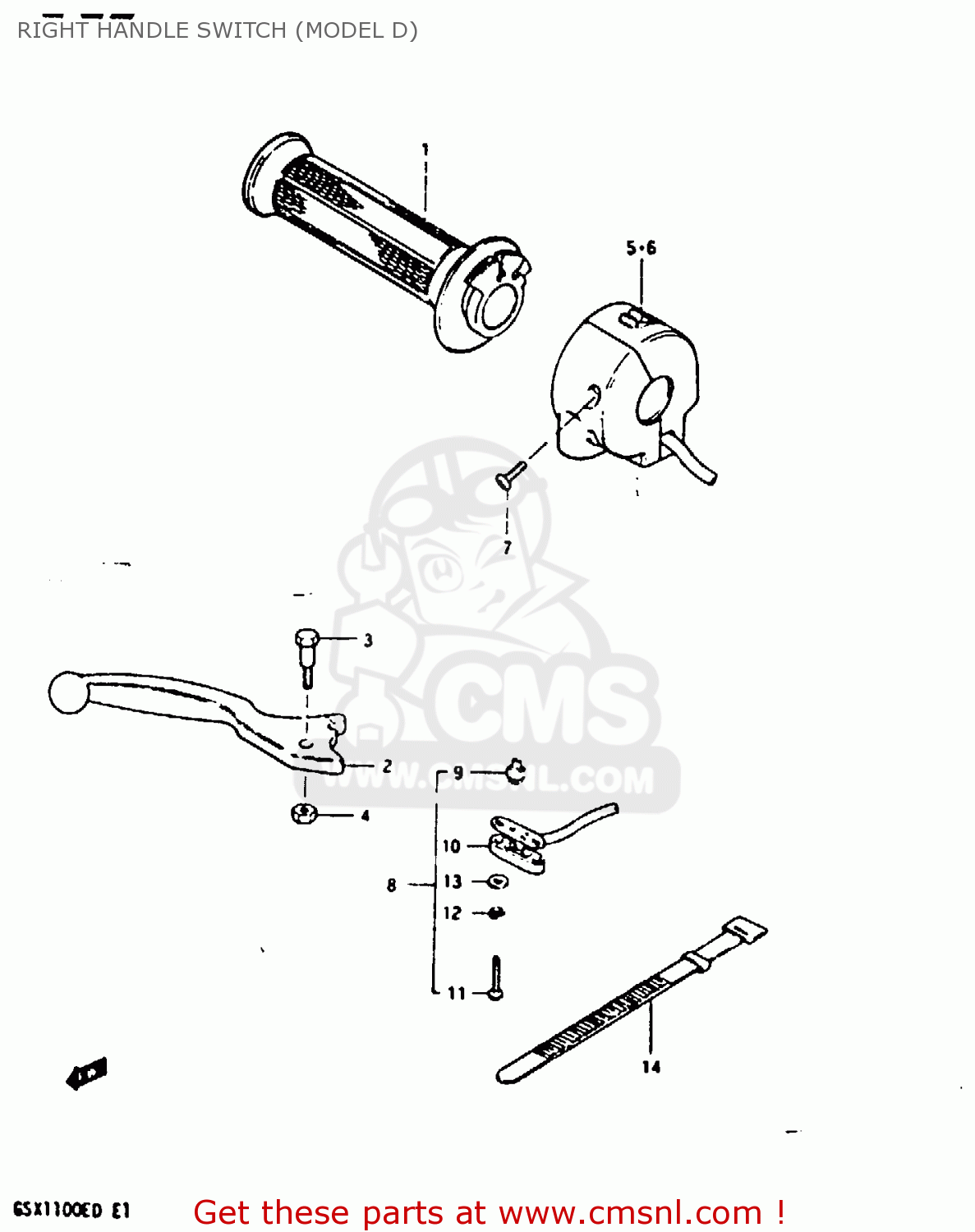

Right handle switch (model d) diagram GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

RIGHT HANDLE SWITCH (MODEL D) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

RIGHT HANDLE SWITCH (MODEL D) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1-1

5711049500
ref: 1-1

GRIP,THROTTLE

€ 26.00

1-2

5711049510
ref: 1-2

GRIP,THROTTLE

€ 33.00

2

5742049101
ref: 2

LEVER,BRAKE

€ 36.50

3

5743118621
ref: 3

BOLT

€ 8.00

4

0831921068
ref: 4

NUT 6MM

€ 2.00

5-1

3720049511
ref: 5-1

SWITCH ASSY, HANDLE RH (FLAT)

€ 130.00

5-2

3720049541
ref: 5-2

SWITCH ASSY,HANDLE,R

€ 130.00

6-1

NOTUSED
ref: 6-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0

NOTUSED
ref: 0

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

6-2

3720049541
ref: 6-2
GSX1100ESD

SWITCH ASSY,HANDLE,R

€ 130.00

6-3

NOTUSED
ref: 6-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0

NOTUSED
ref: 0

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

7

3759149210
ref: 7

SCREW

€ 2.50

8

5746049300
ref: 8

SWITCH ASSEMBLY

€ 40.00

9

5746518601
ref: 9

CONTACT,SWITCH

€ 4.50

10

5748133010
ref: 10

COVER,FR BK TERMINAL BASE

€ 19.50

11

0912503105
ref: 11

SCREW

€ 2.50

12

0832121038
ref: 12

LOCK WASHER

€ 1.50

13

0832221038
ref: 13

WASHER

€ 2.00

14

0940712402
ref: 14

CLAMP(L:120)

€ 3.00
