FOOTREST (MODEL D)

GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

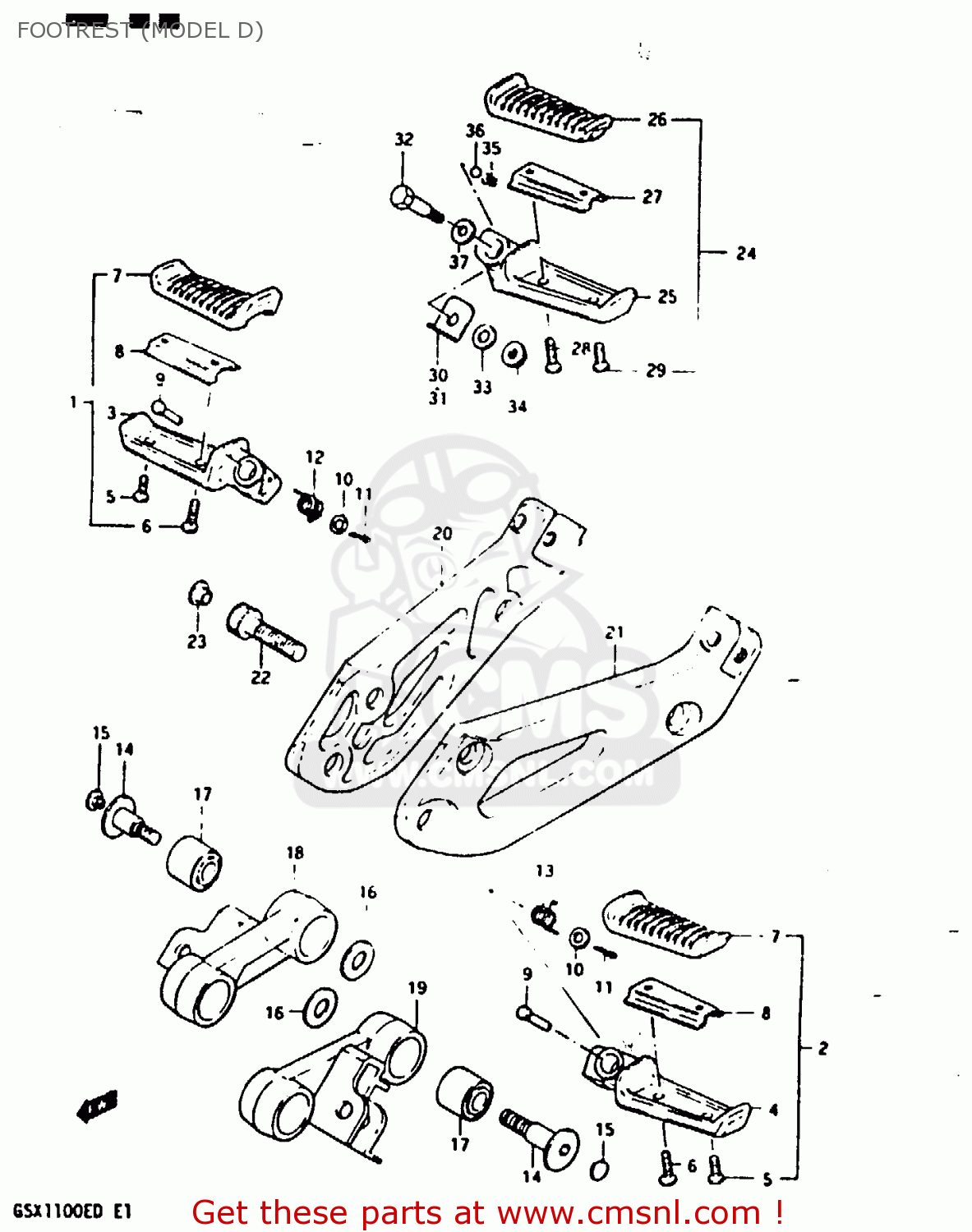

Footrest (model d) diagram GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FOOTREST (MODEL D) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FOOTREST (MODEL D) GSX1100 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

4350133300
ref: 1

FOOTREST ASSEMBLY,FRONT,RIGHT

€ 64.00

2

4350233300
ref: 2

FOOTREST ASSEMBLY,FRONT,LEFT

€ 57.50

3

4351033300
ref: 3

BAR,FRONT FOOTREST

€ 64.00

4

4352033300
ref: 4

BAR,FRONT FOOTREST,LEFT

€ 57.50

5

0211205128
ref: 5

SCREW

€ 2.50

6

0211205168
ref: 6

SCREW

€ 2.50

7

4355133300
ref: 7

RUBBER,FR FOOTREST

€ 9.00

8

4358033300
ref: 8

PLATE,FRONT FOOTREST RUBBER

€ 4.50

9

0920008040
ref: 9

PIN

€ 3.00

10

0832211088
ref: 10

WASHER

€ 2.00

11

0411120208
ref: 11

PIN 20X20

€ 1.50

12

0944814029
ref: 12

SPRING

€ 0.00

13

0944814028
ref: 13

SPRING

€ 3.50

14

0910610010
ref: 14

BOLT(10X50)

€ 44.00

15

4357534500
ref: 15

CAP

€ 1.50

16

0916010058
ref: 16

WASHER

€ 2.00

17

0931910008
ref: 17

BUSH

€ 8.00

18

4353149520
ref: 18

HOLDER,FRONT FOOTREST,RIGHT

€ 63.00

19

4354149520
ref: 19

HOLDER,FRONT FOOTREST,LEFT

€ 51.50

20

4381149510
ref: 20

BRACKET,MUFFLER,RIGHT

€ 97.00

21

4382149510
ref: 21

BRACKET,MUFFLER,LEFT

€ 97.00

22

0910610006
ref: 22

BOLT

€ 4.50

23

4357534500
ref: 23

CAP

€ 1.50

24-1

4360045501
ref: 24-1

FOOTREST ASSY,PILLION,R

€ 41.50

24-2

4370045501
ref: 24-2

FOOTREST ASSY,PILLION,L

€ 56.50

25-1

4361045501
ref: 25-1

BAR,PILLION FOOTREST,RIGHT

€ 17.00

25-2

4371045501
ref: 25-2

BAR,PILLION FOOTREST,LEFT

€ 16.00

26

4361245500
ref: 26

RUBBER,PILLION FOOTREST

€ 10.00

27

4363245500
ref: 27

PLATE,RUBBER STOP

€ 2.50

28

0213205127
ref: 28

SCREW 5X12

€ 2.50

29

0213205168
ref: 29

SCREW

€ 2.00

30

4363533300
ref: 30

PLATE,PILLION FOOTREST SPRG,R

€ 3.50

31

4373533300
ref: 31

PLATE,SPRING STOP,LEFT

€ 3.00

32

0911106035
ref: 32

BOLT

€ 4.50

33

0832211088
ref: 33

WASHER

€ 2.00

34

0831931068
ref: 34

NUT

€ 2.50

35

0944005003
ref: 35

SPRING

€ 1.50

36

0611107004
ref: 36

BALL

€ 1.50

37

0918108004
ref: 37

SHIM(8.2X22X0.2)

€ 2.50
