CAM CHAIN (MODEL D)

GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

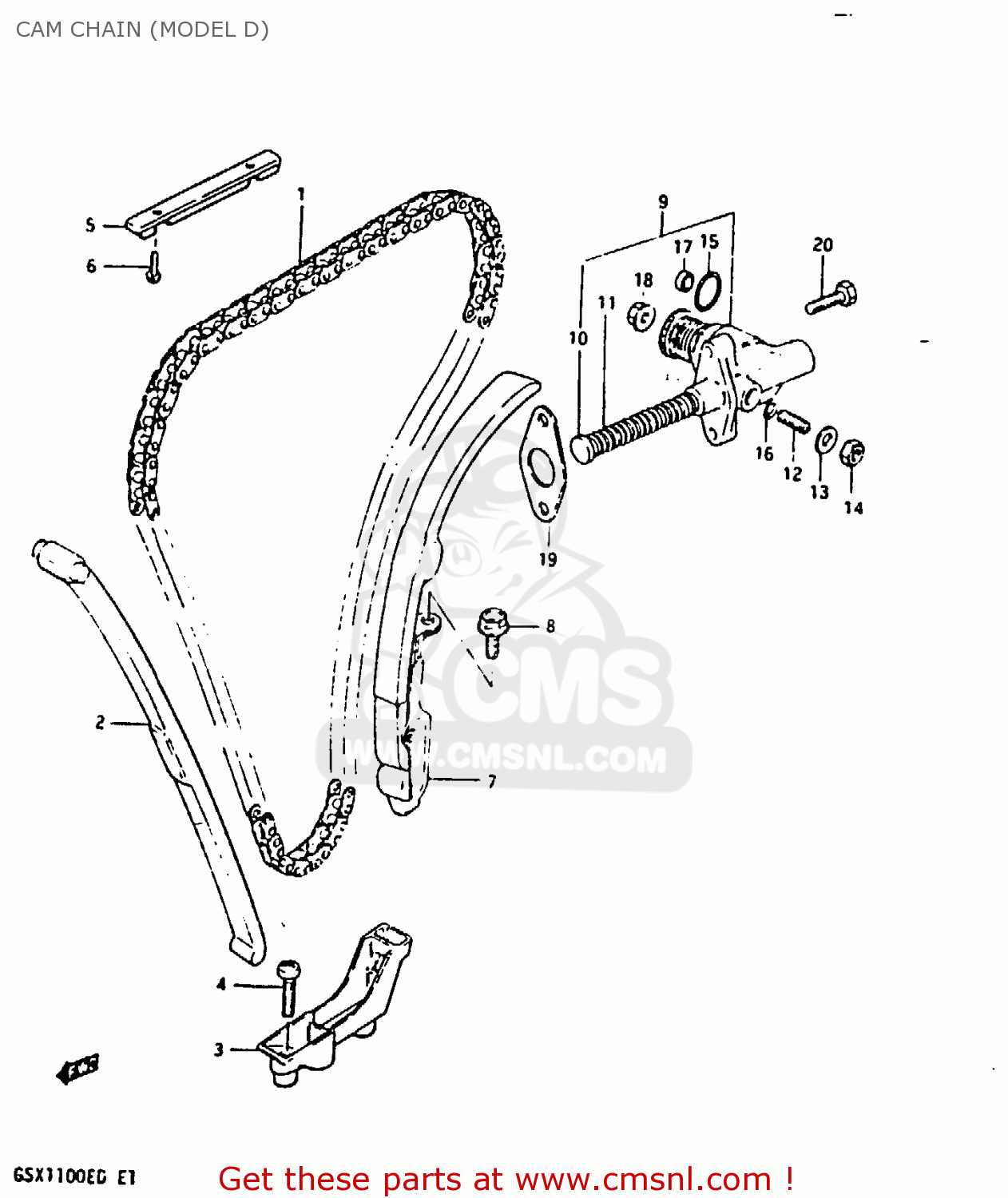

Cam chain (model d) diagram GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CAM CHAIN (MODEL D) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CAM CHAIN (MODEL D) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

1276049011
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 112.00

2

1277145052
ref: 2

GUIDE,CAM CHAIN NO.1

€ 33.50

3

1277649000
ref: 3

HOLDER,CAM CHAIN GUIDE

€ 13.00

4

0211206208
ref: 4

SCREW

€ 2.00

5

1278249200
ref: 5

GUIDE,CAM CHAIN

€ 33.50

6

0211205128
ref: 6

SCREW

€ 2.50

7

1281049250
ref: 7

TENSIONER,CAM CHAIN

€ 77.00

8

0151708168
ref: 8

BOLT

€ 3.00

9

1283047011
ref: 9

ADJUSTER ASSEMBLY,TENSIONER

€ 167.00

10

1283347001
ref: 10

ROD,PUSH

€ 25.00

11

0944012017
ref: 11

SPRING

€ 2.50

12

1283845010
ref: 12

SCREW,TENSIONER ADJUST

€ 6.00

13

0832211085
ref: 13

WASHER,8.5X16X

€ 1.50

14

0831011085
ref: 14

NUT

€ 1.50

15

0928021001
ref: 15

O-RING

€ 4.50

16

0928006003
ref: 16

O-RING

€ 2.50

17

0928410003
ref: 17

OIL SEAL

€ 4.00

18

0831616065
ref: 18

NUT

€ 2.50

19

1283747000
ref: 19

GASKET,TENSIONER ADJUSTER (MCA)

€ 7.50

20

0912806022
ref: 20

SCREW

€ 2.50
