CYLINDER

GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

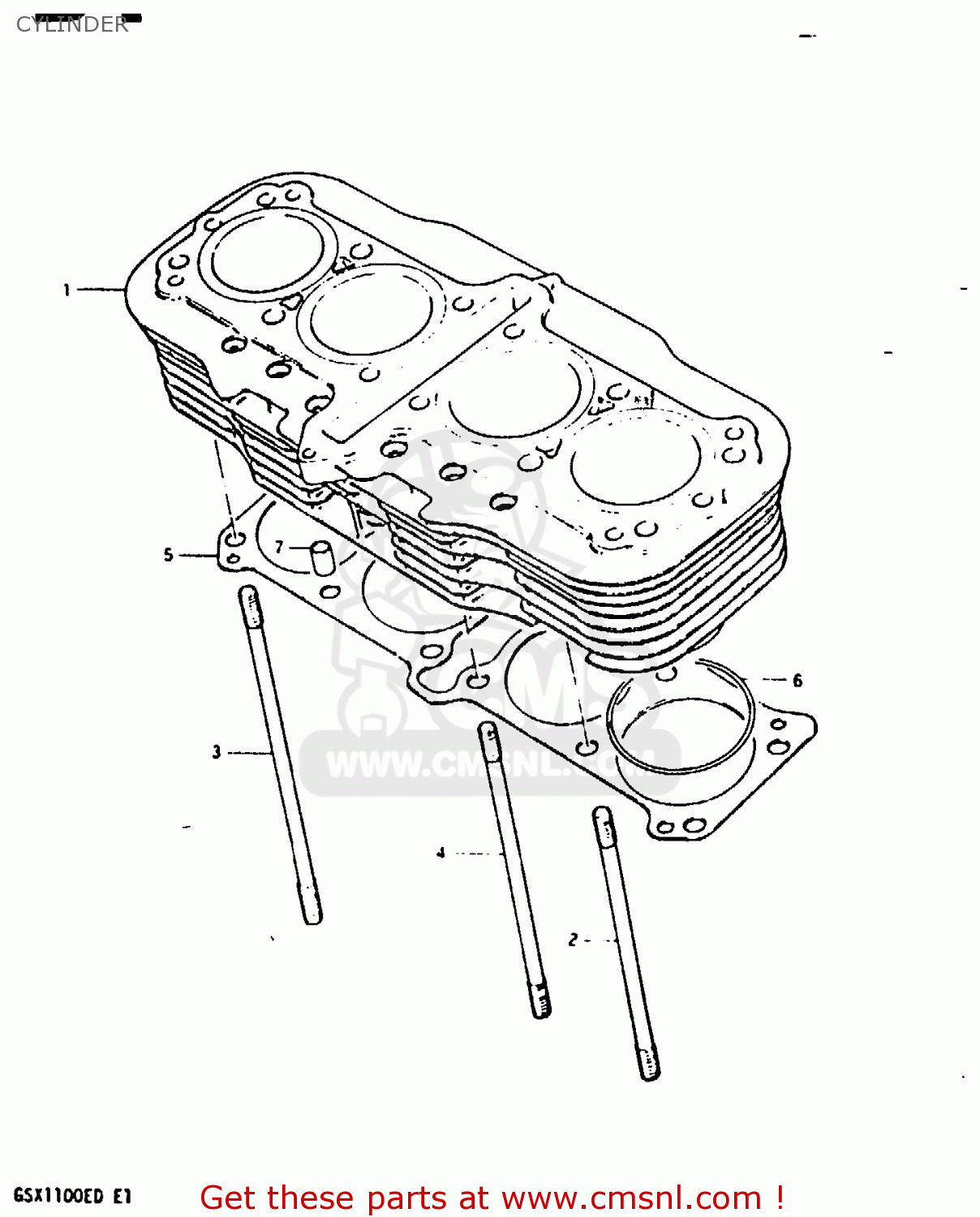

Cylinder diagram GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CYLINDER GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CYLINDER GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1-1

1121049220
ref: 1-1
MODEL Z

CYLINDER

€ 974.50

1-2

1121049230
ref: 1-2
MODEL D

CYLINDER

€ 945.00

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910810028
ref: 3

STUD

€ 9.00

4

0910810030
ref: 4

BOLT,STUD

€ 7.50

5

1124149200
ref: 5

GASKET,CYLINDER (MCA)

€ 39.00

6

0928074002
ref: 6

O RING(D:2,ID:74)

€ 6.00

7

0920613006
ref: 7

PIN

€ 9.00
