HEADLAMP HOUSING - FRONT FENDER

GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

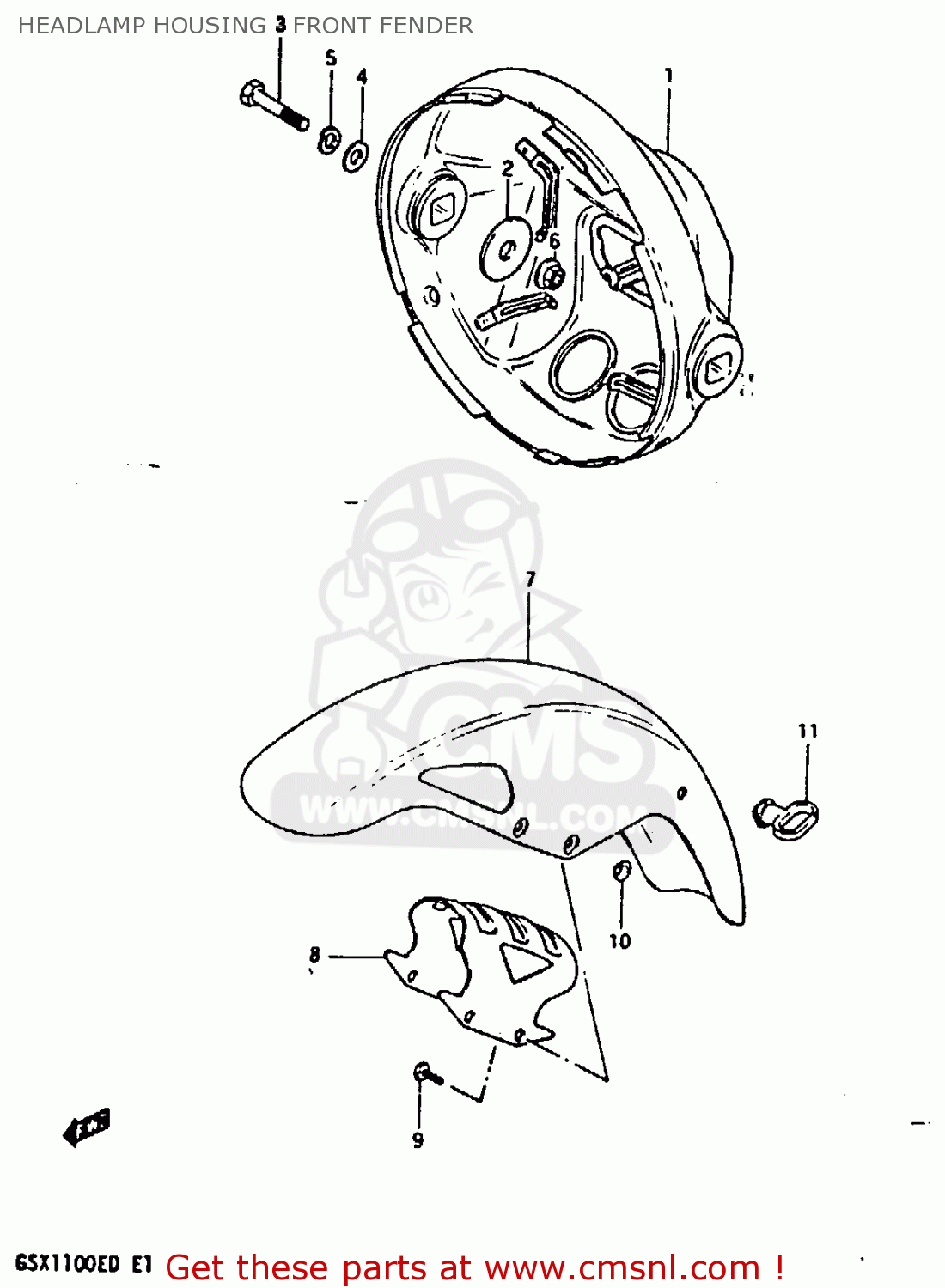

Headlamp housing - front fender diagram GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

HEADLAMP HOUSING - FRONT FENDER GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

HEADLAMP HOUSING - FRONT FENDER GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

5181045900291
ref: 1

HOUSING,HEADLAMP

€ 139.00

2

0916008002
ref: 2

WASHER (8.5X29X1.6)

€ 2.00

3

0120408307
ref: 3

BOLT

€ 2.50

4

0832211088
ref: 4

WASHER

€ 2.00

5

0832121088
ref: 5

LOCK WASHER

€ 2.00

6

0831616088
ref: 6

NUT

€ 2.50

7-1

531114590114B
ref: 7-1
GSX1100Z/EZ/D/ED

FENDER,FRONT

€ 106.50

7-2

531114590113L
ref: 7-2
GSX1100D/ED

FENDER,FR

€ 106.50

7-3

531114590113Z
ref: 7-3
GSX1100XD/EXD/ESD

FENDER,FRONT

€ 106.50

7-4

531114590117R
ref: 7-4
GSX1100XD/EXD

FENDER,FRONT

€ 106.50

7-5

531114590116D
ref: 7-5
GSX1100ESD

FENDER,FRONT

€ 106.50

8

5311445900
ref: 8

BRACE,FRONT FENDER

€ 19.00

9

0910008135
ref: 9

BOLT 8X16

€ 3.00

10

0916908032
ref: 10

WASHER

€ 11.50

11

5862121203A
ref: 11

GUIDE,CABLE

€ 7.50
