REAR WHEEL (GSX1100ED/EXD/ESD)

GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

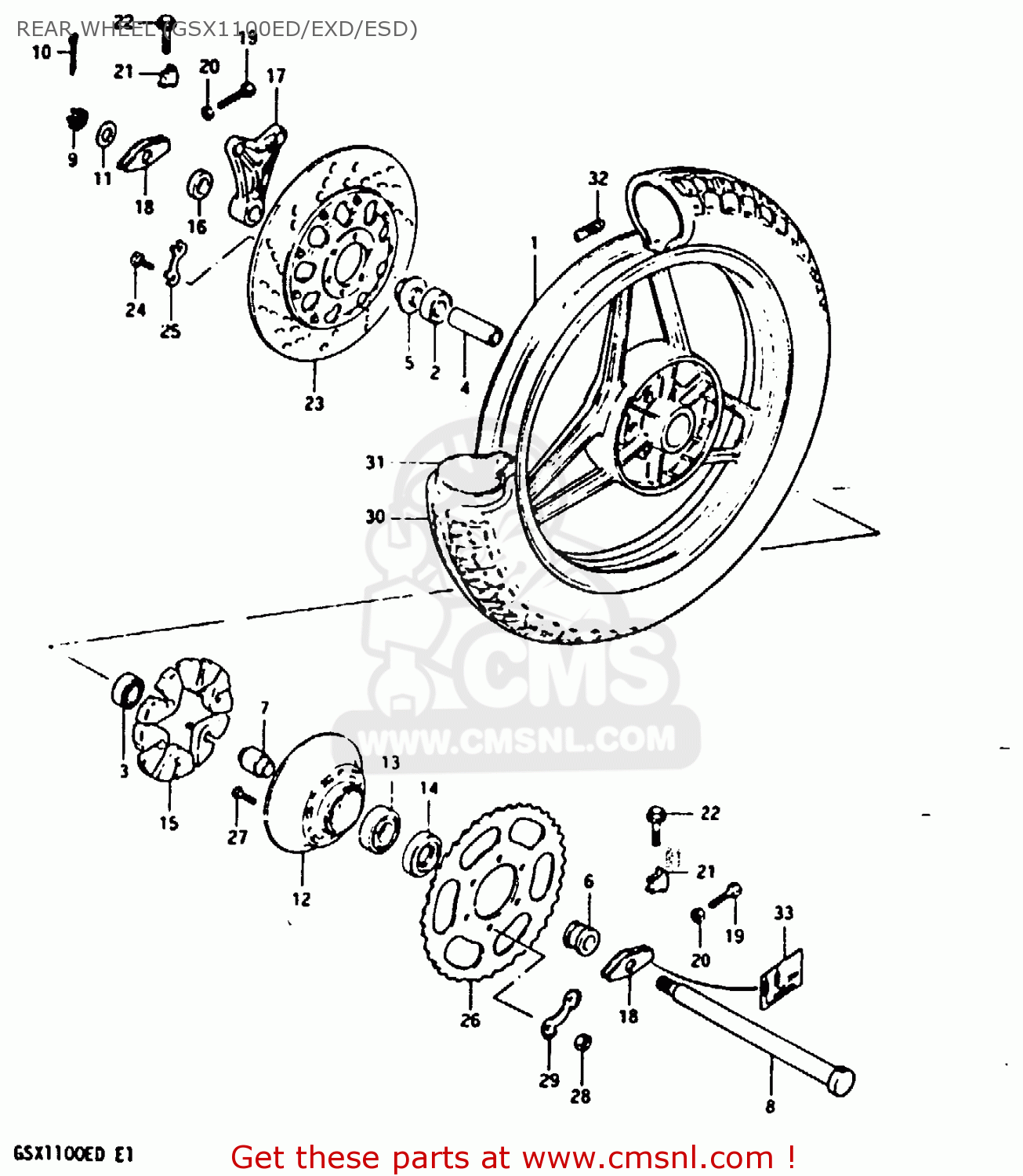

Rear wheel (gsx1100ed/exd/esd) diagram GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

REAR WHEEL (GSX1100ED/EXD/ESD) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

REAR WHEEL (GSX1100ED/EXD/ESD) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

6411149500291
ref: 1

CASTING WHEEL,REAR 2.50

€ 633.50

2

0813362047
ref: 2

BEARING WHEEL REAR(20X47X14)

€ 22.50

3

0815362047
ref: 3

BEARING, LH

€ 21.00

4

0918020062
ref: 4

SPACER(20.5X28X88)

€ 11.50

5

6474045001
ref: 5

SPACER,REAR AXLE

€ 15.00

6

0918020054
ref: 6

SPACER(20X33X28.3)

€ 13.00

7

6473331000
ref: 7

SPACER,REAR HUB BEARING

€ 20.00

8

6471149000
ref: 8

AXLE,REAR

€ 59.00

9-1

0831431188
ref: 9-1

NUT 18MM

€ 5.00

9-2

NOTUSED
ref: 9-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10

0411140308
ref: 10

PIN,COTTER

€ 1.50

11

0916019008
ref: 11

WASHER(19X34X4)

€ 3.00

12

6461131001
ref: 12

DRUM,REAR SPROCKET MOUNT

€ 140.00

13

0811363050
ref: 13

BEARING

€ 21.50

14

0928533001
ref: 14

SEAL,OIL(33X62X7)

€ 20.00

15

6465131000
ref: 15

ABSORBER,REAR HUB SHOCK

€ 9.50

16

0918020060
ref: 16

SPACER(20X38X12)

€ 6.50

17

6972147011
ref: 17

BRACKET,RR,CALIPER

€ 29.00

18

6141049500
ref: 18

ADJUSTER,CHAIN

€ 12.50

19

0910408023
ref: 19

BOLT 8X35

€ 2.00

20

0831012088
ref: 20

NUT

€ 2.00

21

6143331000
ref: 21

SUPPORTER,CHAIN ADJUST

€ 22.50

22

0151708608
ref: 22

BOLT

€ 3.50

23

5921018450
ref: 23

DISC,RR BRAKE

€ 446.00

24

0910008094
ref: 24

BOLT(8X30)

€ 2.50

25

0916908016
ref: 25

WASHER

€ 3.50

26

6451149001
ref: 26

SPROCKET,REAR

€ 114.00

27

0911910002
ref: 27

BOLT

€ 3.50

28

0914010026
ref: 28

NUT

€ 2.00

29

0916910007
ref: 29

WASHER

€ 7.50

30

6510049515
ref: 30
IRC

TIRE (4.50V17)

€ 258.00

31

6520049010
ref: 31

TUBE ASSEMBLY,WHEEL,INNER

€ 43.50

32-1

5541149300
ref: 32-1

BALANCER,WHEEL

€ 7.00

32-2

5541249300
ref: 32-2

BALANCER,WHEEL (30G)

€ 4.00

33

6837749000
ref: 33

LABEL,CHAIN WEAR INDICATOR

€ 3.50
