FRONT DAMPER (GSX1100ED/EXD)

GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

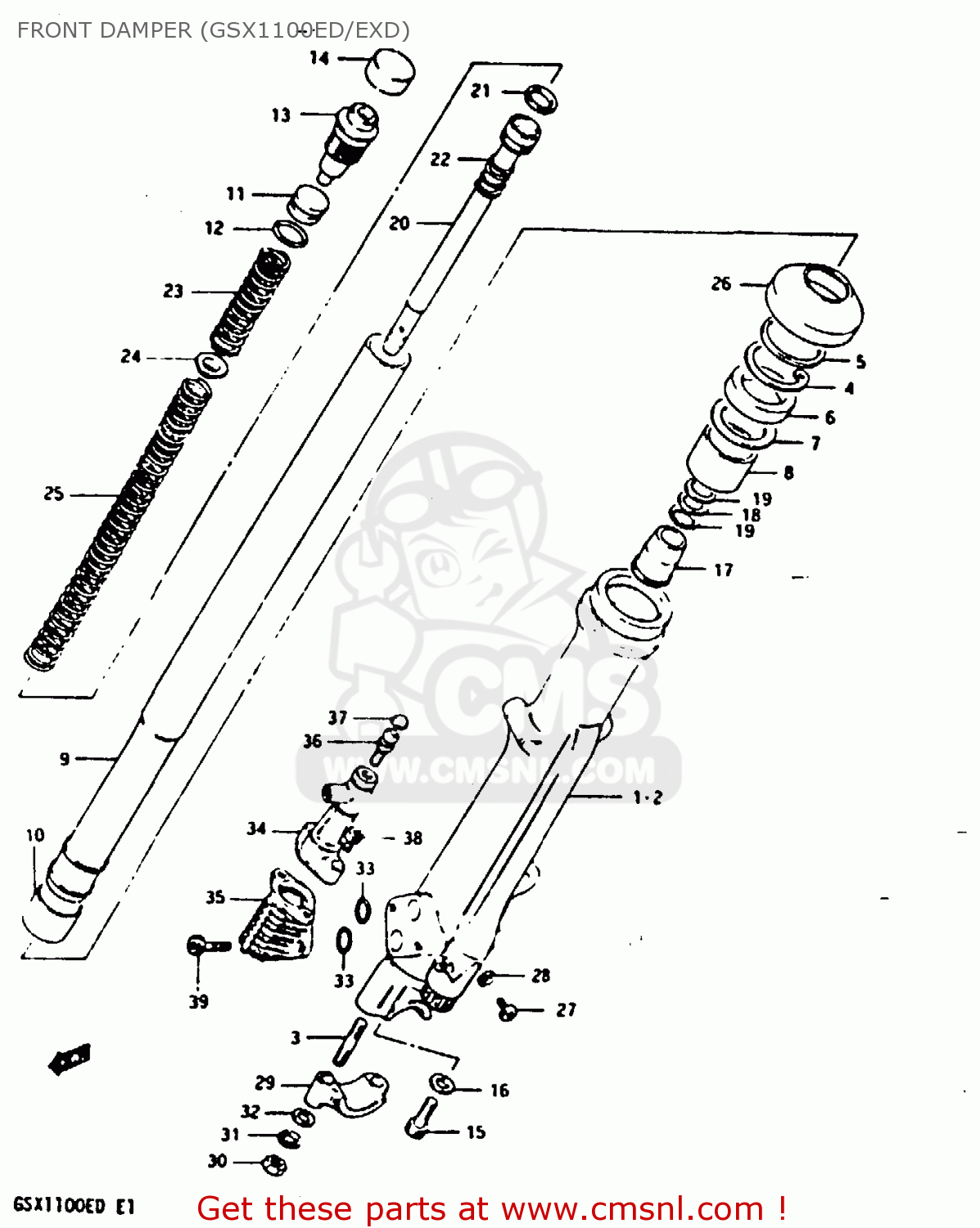

Front damper (gsx1100ed/exd) diagram GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRONT DAMPER (GSX1100ED/EXD) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRONT DAMPER (GSX1100ED/EXD) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

0

5110349511
ref: 0

DUMPER ASSY, RH

€ 0.00

0

5110449511
ref: 0

DUMPER ASSY, LH

€ 562.50

1

5113049550291
ref: 1

OUTER TUBE, RH

€ 313.50

2

5114049550291
ref: 2

OUTER TUBE, LH

€ 258.50

3

0141108308
ref: 3

STUD 8X30

€ 2.00

4

5115640301
ref: 4

RING,STOPPER

€ 4.50

5

5115849000
ref: 5

WASHER. FRONT FORK

€ 7.00

6

5115349001
ref: 6

OIL SEAL,FRONT FORK

€ 16.50

7

5115849500
ref: 7

WASHER

€ 4.00

8

5116749500
ref: 8

METAL,SLIDE

€ 10.50

9

5111049560
ref: 9

INNER TUBE

€ 257.00

10

5112149500
ref: 10

METAL,FRONT FORK PISTON

€ 17.50

11

5117245110
ref: 11

PISTON,FREE

€ 10.50

12

5111745110
ref: 12

O-RING

€ 4.00

13

5135149200
ref: 13

CAP

€ 59.00

14

5118949300
ref: 14

CAP,RUBBER

€ 9.00

15

5114716510
ref: 15

BOLT,FORK CYLINDER(10X25)

€ 3.50

16

5114841310
ref: 16

GASKET (NAS)

€ 2.50

17

5119545420
ref: 17

PIECE,OIL LOCK

€ 15.50

18

5112345420
ref: 18

WASHER

€ 3.50

19

5112545420
ref: 19

SPRING,LEAF

€ 3.50

20

5114649510
ref: 20

CYLINDER

€ 103.00

21

5119649000
ref: 21

RING,PISTON

€ 9.00

22

5117749200
ref: 22

SPRING,FORK REBOUND

€ 7.00

23

5118449540
ref: 23

SPRING

€ 3.50

24

5117216510
ref: 24

GUIDE,FRONT FORK SPRING

€ 0.00

25

5117149540
ref: 25

SPRING

€ 31.00

26

5117349002
ref: 26

SEAL,DUST

€ 13.00

27

0211204088
ref: 27

SCREW

€ 1.50

28

5118303010
ref: 28

GASKET,DRAIN,PLUG (NAS)

€ 3.00

29

5113249500291
ref: 29

HOLDER,AXLE

€ 24.50

30

0914008005
ref: 30

NUT (8MM)

€ 1.50

31

0832121088
ref: 31

LOCK WASHER

€ 2.00

32

0832221088
ref: 32

WASHER

€ 2.00

33

5179944130
ref: 33

O RING

€ 5.00

34

5179011330
ref: 34

PLANGER SET,MODULATOR

€ 122.00

35

5177045920
ref: 35

VALVE SET,MODULATOR

€ 94.50

36

5177844130
ref: 36

BREATHER,AIR

€ 12.50

37

5177944130
ref: 37

CAP,BREADER

€ 6.00

38

5175311330
ref: 38

BOLT, MODULATOR (5X12)

€ 2.50

39

5179644130
ref: 39

BOLT,FRONT FORK

€ 3.00
