FOOTREST (MODEL Z)

GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

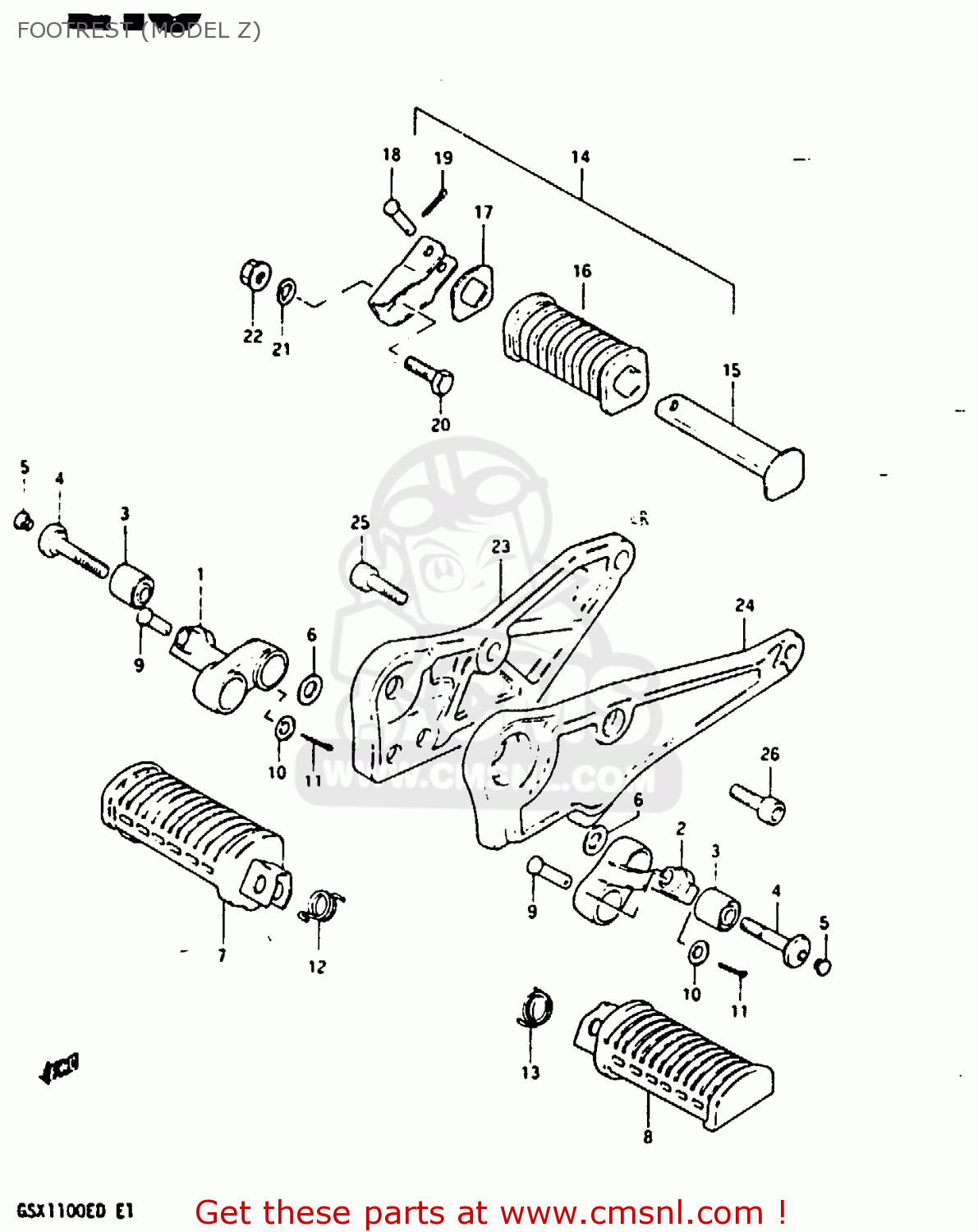

Footrest (model z) diagram GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FOOTREST (MODEL Z) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FOOTREST (MODEL Z) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

4351049510
ref: 1

BAR,FRONT FOOTREST,RIGHT

€ 18.00

2

4352049510
ref: 2

BAR,FRONT FOOTREST,LEFT

€ 55.00

3

0931910008
ref: 3

BUSH

€ 8.00

4

0910610010
ref: 4

BOLT(10X50)

€ 44.00

5

4357534500
ref: 5

CAP

€ 1.50

6

0916010058
ref: 6

WASHER

€ 2.00

7

4355034500
ref: 7

RUBBER,FOOTREST

€ 36.00

8

4356034500
ref: 8

FOOTREST

€ 37.00

9

0920008002
ref: 9

PIN

€ 2.00

10

0832211088
ref: 10

WASHER

€ 2.00

11

0411120208
ref: 11

PIN 20X20

€ 1.50

12

0944819014
ref: 12

SPRING

€ 6.00

13

0944819015
ref: 13

SPRING

€ 4.00

14-1

4360049500
ref: 14-1

FOOTREST ASSEMBLY,REAR

€ 43.50

14-2

4370049500
ref: 14-2

FOOTREST ASSEMBLY,PILLION

€ 23.00

15-1

4361049400
ref: 15-1

BAR,REAR FOOTREST

€ 8.50

15-2

4362049400
ref: 15-2

BAR,REAR FOOTREST

€ 8.50

16

4361249400
ref: 16

RUBBER,REAR FOOTREST

€ 14.50

17

4363149400
ref: 17

WASHER,REAR FOOTREST RUBBER

€ 3.00

18

0920006010
ref: 18

PIN

€ 2.50

19

0411120208
ref: 19

PIN 20X20

€ 1.50

20

0110710358
ref: 20

BOLT,M10X1.25X

€ 2.50

21

0832121108
ref: 21

LOCK WASHER

€ 2.00

22

0831616108
ref: 22

NUT

€ 2.00

23

4381149500
ref: 23

BRACKET,MUFFLER,RIGHT

€ 96.00

24

4382149500
ref: 24

BRACKET

€ 0.00

25

0910610006
ref: 25

BOLT

€ 4.50

26

0910610007
ref: 26

BOLT

€ 3.50
