CRANKCASE (MODEL D)

GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

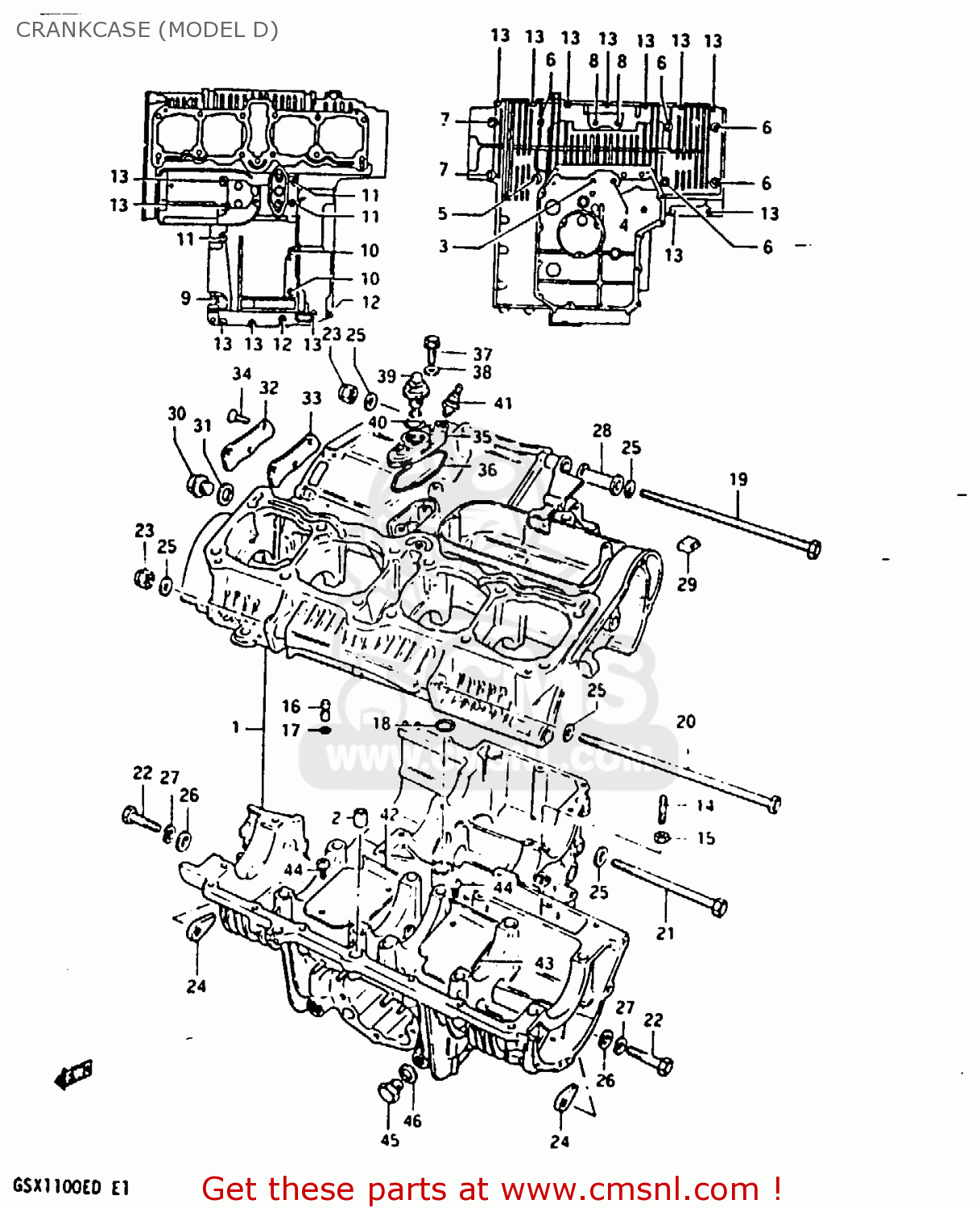

Crankcase (model d) diagram GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CRANKCASE (MODEL D) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)
CRANKCASE (MODEL D) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)
CRANKCASE (MODEL D) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1
1130049870
ref: 1
CRANKCASE SET
€ 60.50
2
0920613001
ref: 2
PIN
0920613001
€ 2.50
3
0910308059
ref: 3
BOLT 8X155
0910308059
€ 7.50
4
0910308020
ref: 4
BOLT
€ 8.00
5
0910308009
ref: 5
BOLT
0910308009
€ 5.00
6
0151708905
ref: 6
BOLT (8X90)
€ 3.50
7
0151708655
ref: 7
BOLT (8X65)
€ 3.00
8
0151708605
ref: 8
BOLT 8X60
€ 3.50
9
0151708505
ref: 9
BOLT (8X50)
0151708505
€ 2.50
10
0151706855
ref: 10
BOLT
€ 2.50
11
0151706755
ref: 11
BOLT (6X75)
€ 2.50
12
0151706555
ref: 12
BOLT 6X55
€ 2.00
13
0151706405
ref: 13
BOLT (6X40)
€ 2.00
14
0142106358
ref: 14
STUD BOLT
0142106358
€ 2.00
15
0831616068
ref: 15
NUT
0831616068
€ 2.50
16
0936405005
ref: 16
UNION
0936405005
€ 3.00
17
0928003003
ref: 17
O RING(D:1.05,ID:3.1)
0928003003
€ 2.50
18
0928013001
ref: 18
O RING(D:3.2,ID:12.9)
0928013001
€ 4.00
19
0910010140
ref: 19
BOLT 10X230
0910010140
€ 13.50
20
0910010142
ref: 20
BOLT
€ 0.00
21
0910010137
ref: 21
BOLT
€ 10.50
22
0110710605
ref: 22
BOLT (10X60)
€ 3.50
23
0915910011
ref: 23
NUT
0915910011
€ 3.00
24
0915910020
ref: 24
NUT
0915910020
€ 7.50
25
0832211105
ref: 25
WASHER
€ 2.50
26
0916010005
ref: 26
WASHER(10.5X20X3.2)
0916010005
€ 2.00
27
0832121105
ref: 27
LOCK WASHER
€ 3.00
28
1161045410
ref: 28
SPACER,ENGINE MOUNT(L:65)
1161045410
€ 11.50
29
1125225000
ref: 29
PAD,CYLINDER
1125225000
€ 5.00
30
0924714012
ref: 30
PLUG (14X12)
0924714012
€ 3.50
31
0916814004
ref: 31
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
32
1139445000
ref: 32
CAP,OIL GALLERY
1139445000
€ 6.50
33
1149745000
ref: 33
GASKET,OIL GALLERY (MCA)
1149745000
€ 13.00
34
0212206168
ref: 34
SCREW
0212206168
€ 2.00
35
1644549010
ref: 35
HOUSING,OIL PRESSURE SWITCH
€ 20.00
36
1644845000
ref: 36
O RING,PRESSURE SWITCH HOUSING
1644845000
€ 10.50
37
0151706258
ref: 37
BOLT
0151706258
€ 2.50
38
0916806009
ref: 38
GASKET (NAS)
0916806009
€ 2.00
39
3782045060
ref: 39
SWITCH ASSEMBLY
3782045060
€ 30.00
40
0928019001
ref: 40
O RING(D:1.9,ID:18.8)
0928019001
€ 1.50
41-1
3487049000
ref: 41-1
GSX1100D/ED/XD/EXD
GAUGE ASSEMBLY,OIL TEMPERATURE
3487049000
€ 105.00
41-2
3487031300
ref: 41-2
GSX1100ESD
GAUGE ASSEMBLY,OIL TEMPERATURE
3487031300
€ 121.00
42
1152149200
ref: 42
PLATE,OIL SEPARATOR
€ 5.50
43
1152249200
ref: 43
PLATE,OIL SEPARATOR
€ 4.50
44
0211206088
ref: 44
SCREW
€ 2.00
45
0924714022
ref: 45
PLUG
€ 2.00
46
0916814004
ref: 46
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
