Buy Suzuki GSX Parts Online


FUEL TANK (GSX1100XD/EXD)

GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

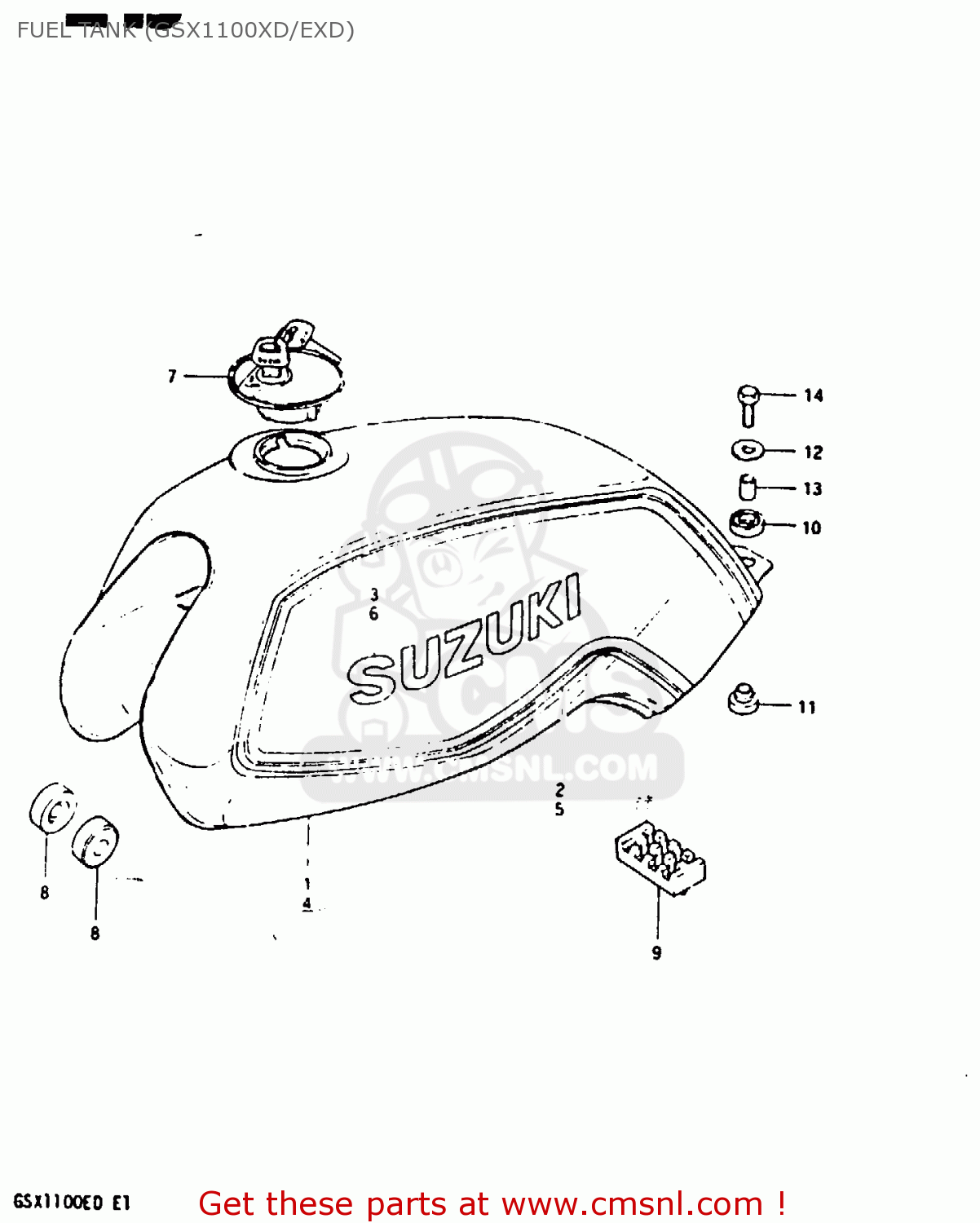

Fuel tank (gsx1100xd/exd) diagram GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FUEL TANK (GSX1100XD/EXD) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)
FUEL TANK (GSX1100XD/EXD) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)
FUEL TANK (GSX1100XD/EXD) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1
441024981013Z
ref: 1
TANK SET, FUEL
€ 668.50
2
681104952067N
ref: 2
TAPE SET, FUEL TANK
€ 0.00
3
681114440008L
ref: 3
EMBLEM,FUEL TANK
681114440008L
€ 15.50
4
441024981017R
ref: 4
TANK SET, FUEL (RED)
€ 0.00
5
681104952065M
ref: 5
TAPE SET, FUEL TANK
€ 0.00
6
6811144400742
ref: 6
EMBLEM(SILVER)
6811144400742
€ 12.50
7
4420034303KEY
ref: 7
CAP SET,FUEL TANK
€ 135.50
8
0932910007
ref: 8
CUSHION
0932910007
€ 3.00
9
4454134500
ref: 9
CUSHION,FUEL TANK CTR
4454134500
€ 13.00
10
0932014013
ref: 10
CUSHION
0932014013
€ 3.00
11
0932010020
ref: 11
CUSHION
0932010020
€ 4.00
12
0916006004
ref: 12
WASHER (6.5X24X1.6)
0916006004
€ 1.50
13
0918006072
ref: 13
SPACER
0918006072
€ 2.00
14
0110706308
ref: 14
BOLT
0110706308
€ 2.50
