FRONT DAMPER (GSX1100EZ)

GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

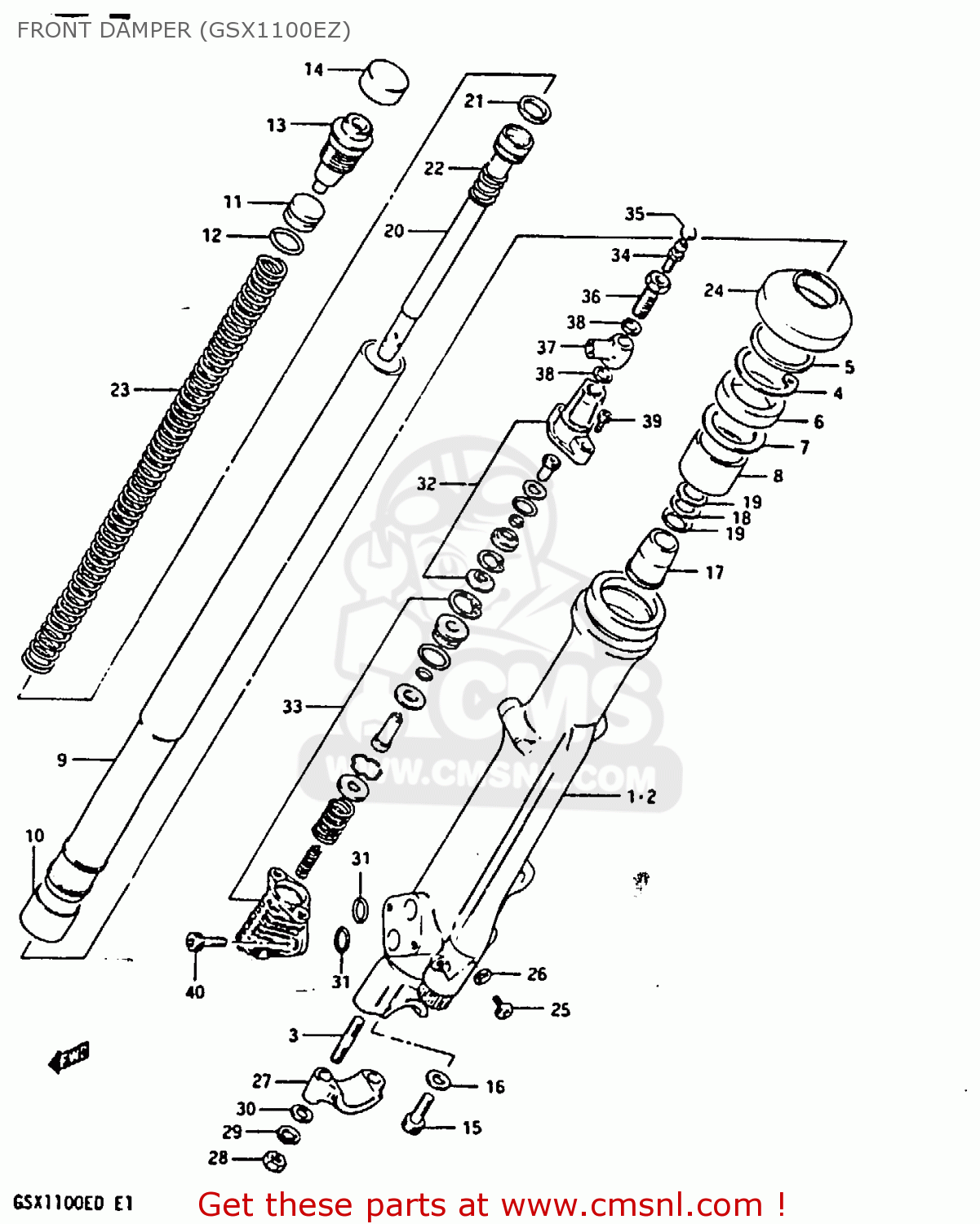

Front damper (gsx1100ez) diagram GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRONT DAMPER (GSX1100EZ) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRONT DAMPER (GSX1100EZ) GSX1100 1983 (D) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

0

5110349510
ref: 0

DUMPER ASSY, RH

€ 0.00

0

5110449510
ref: 0

DUMPER ASSY, LH

€ 0.00

1

5113049510291
ref: 1

OUTER TUBE, RH

€ 225.00

2

5114049510291
ref: 2

OUTER TUBE, LH

€ 205.00

3

0141108308
ref: 3

STUD 8X30

€ 2.00

4

5115640301
ref: 4

RING,STOPPER

€ 4.50

5

5115849000
ref: 5

WASHER. FRONT FORK

€ 7.00

6

5115349000
ref: 6

OIL SEAL,FRONT FORK

€ 16.50

7

5115849500
ref: 7

WASHER

€ 4.00

8

5116749500
ref: 8

METAL,SLIDE

€ 10.50

9

5111049510
ref: 9

INNER TUBE

€ 320.00

10

5112149500
ref: 10

METAL,FRONT FORK PISTON

€ 17.50

11

5117245110
ref: 11

PISTON,FREE

€ 10.50

12

5111745110
ref: 12

O-RING

€ 4.00

13

5135149200
ref: 13

CAP

€ 59.00

14

5118949300
ref: 14

CAP,RUBBER

€ 9.00

15

5114716510
ref: 15

BOLT,FORK CYLINDER(10X25)

€ 3.50

16

5114841310
ref: 16

GASKET (NAS)

€ 2.50

17

5119545420
ref: 17

PIECE,OIL LOCK

€ 15.50

18

5112345420
ref: 18

WASHER

€ 3.50

19

5112545420
ref: 19

SPRING,LEAF

€ 3.50

20

5114649510
ref: 20

CYLINDER

€ 103.00

21

5119649000
ref: 21

RING,PISTON

€ 9.00

22

5117749200
ref: 22

SPRING,FORK REBOUND

€ 7.00

23

5117149510
ref: 23

SPRING

€ 58.00

24

5117349002
ref: 24

SEAL,DUST

€ 13.00

25

0211204088
ref: 25

SCREW

€ 1.50

26

5118303010
ref: 26

GASKET,DRAIN,PLUG (NAS)

€ 3.00

27

5113249500291
ref: 27

HOLDER,AXLE

€ 24.50

28

0914008005
ref: 28

NUT (8MM)

€ 1.50

29

0832121088
ref: 29

LOCK WASHER

€ 2.00

30

0832221088
ref: 30

WASHER

€ 2.00

31

5179944130
ref: 31

O RING

€ 5.00

32

5170044832
ref: 32

MODULATOR PARTS SET,FRONT

€ 100.00

33

5170049820
ref: 33

MODULATOR VALVE SET,FRONT

€ 112.00

34

5177844130
ref: 34

BREATHER,AIR

€ 12.50

35

5177944130
ref: 35

CAP,BREADER

€ 6.00

36

5175349300
ref: 36

BOLT,UNION

€ 10.50

37

5176549300
ref: 37

SPACER,FRONT FORK MODULATOR

€ 7.50

38

0916110005
ref: 38

WASHER

€ 2.00

39

5179744160
ref: 39

BOLT,FR FORK

€ 2.00

40

5179644130
ref: 40

BOLT,FRONT FORK

€ 3.00
