CAM CHAIN

GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

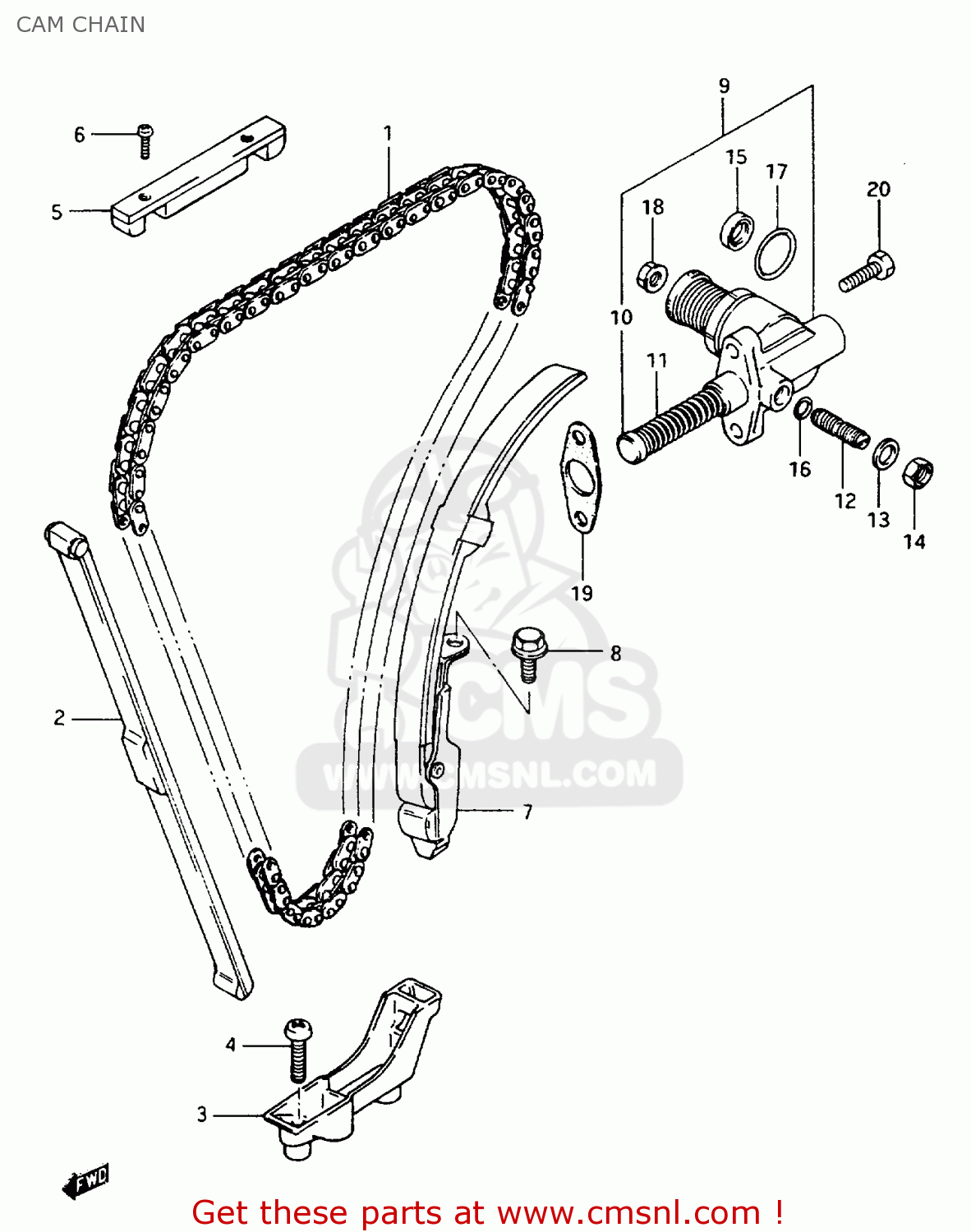

Cam chain diagram GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

CAM CHAIN GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)
CAM CHAIN GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)
CAM CHAIN GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
1276049011
ref: 1
CHAIN,CAMSHAFT DRIVE
1276049011
€ 112.00
2
1277145052
ref: 2
GUIDE,CAM CHAIN NO.1
1277145052
€ 33.50
3
1277649000
ref: 3
HOLDER,CAM CHAIN GUIDE
1277649000
€ 13.00
4
0211206208
ref: 4
SCREW
€ 2.00
5
1278249200
ref: 5
GUIDE,CAM CHAIN
1278249200
€ 33.50
6
0211205128
ref: 6
SCREW
€ 2.50
7
1281049250
ref: 7
TENSIONER,CAM CHAIN
1281049250
€ 77.00
8
0151708168
ref: 8
BOLT
€ 3.00
9
1283047011
ref: 9
ADJUSTER ASSEMBLY,TENSIONER
1283047011
€ 167.00
10
1283347001
ref: 10
ROD,PUSH
1283347001
€ 25.00
11
0944012017
ref: 11
SPRING
0944012017
€ 2.50
12
1283845010
ref: 12
SCREW,TENSIONER ADJUST
€ 6.00
13
0832211084
ref: 13
WASHER
0832211084
€ 1.50
14
0831011085
ref: 14
NUT
€ 1.50
15
0928410006
ref: 15
SEAL,OIL(10X16X4)
0928410006
€ 4.00
16
0928006005
ref: 16
O RING(D:1.9,ID:5.7)
0928006005
€ 2.50
17
0928021013
ref: 17
O RING(D:2.4,ID:20.8)
0928021013
€ 4.50
18
0831616064
ref: 18
NUT 6MM
0831616064
€ 2.50
19
1283731310
ref: 19
GASKET,TENSIONER ADJUSTER (MCA)
1283731310
€ 7.50
20
0912806022
ref: 20
SCREW
€ 2.50
