FUEL TANK (GSX1100EFE/EFF/EFG,GS1150EF/EFG)

GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

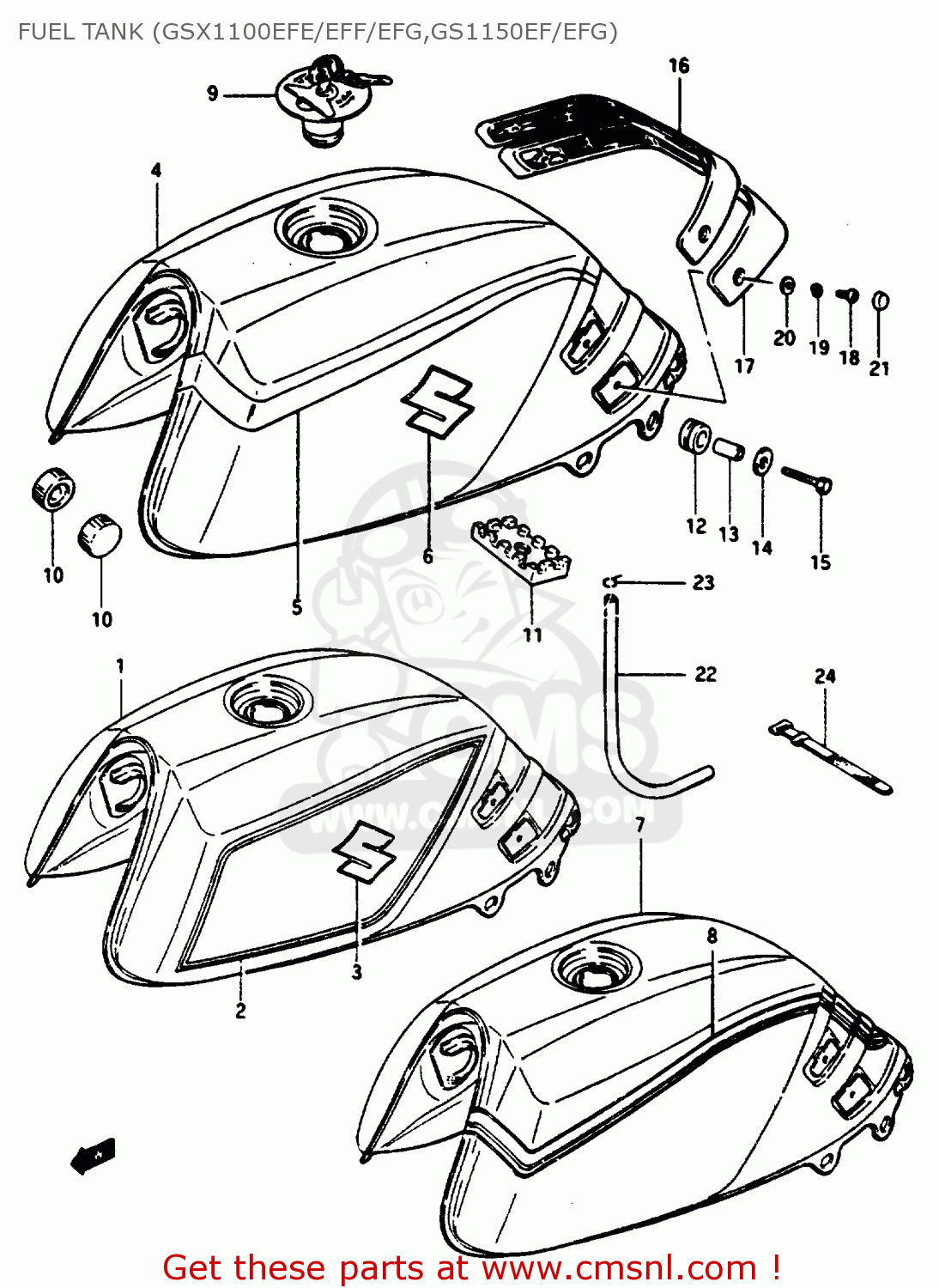

Fuel tank (gsx1100efe/eff/efg,gs1150ef/efg) diagram GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

FUEL TANK (GSX1100EFE/EFF/EFG,GS1150EF/EFG) GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)
FUEL TANK (GSX1100EFE/EFF/EFG,GS1150EF/EFG) GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)
FUEL TANK (GSX1100EFE/EFF/EFG,GS1150EF/EFG) GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)
prices are in EUR
ref
part #
description
quantity
1-1
4410000A2087P
ref: 1-1
MODEL E
TANK ASSY, FUEL
€ 441.00
1-2
4410000A3087P
ref: 1-2
MODEL E E22
TANK ASSY, FUEL
€ 592.50
1-3
4410000A207DP
ref: 1-3
MODEL E
TANK ASSY, FUEL
€ 441.00
1-4
4410000A307DP
ref: 1-4
MODEL E E22
TANK ASSY, FUEL
€ 592.50
1-5
4410000A207DT
ref: 1-5
MODEL E
TANK ASSY, FUEL
€ 441.00
1-6
4410000A307DT
ref: 1-6
MODEL E E22
TANK ASSY, FUEL
€ 592.50
2-1
6811000A007EE
ref: 2-1
MODEL E, FOR 87P
TAPE SET, FUEL TANK
€ 64.50
2-2
6811000A007EF
ref: 2-2
MODEL E, FOR 7DP
TAPE SET, FUEL TANK
€ 87.00
2-3
6811000A007EG
ref: 2-3
MODEL E, FOR 7DT
TAPE SET, FUEL TANK
€ 84.00
3-1
681664341060D
ref: 3-1
MODEL E, FOR 87P
EMBLEM,SEAT TAIL (S)
681664341060D
€ 4.50
3-2
681664341071L
ref: 3-2
MODEL E, FOR 7DP
EMBLEM
681664341071L
€ 3.50
3-3
681664341066P
ref: 3-3
MODEL E, FOR 7DT
EMBLEM
€ 0.00
4-1
4410000A907JH
ref: 4-1
MODEL F
TANK ASSY, FUEL
€ 441.00
4-2
4910000A107JH
ref: 4-2
MODEL F E22
TANK ASSY, FUEL
€ 592.50
4-3
4410000A907JJ
ref: 4-3
TANK ASSY, FUEL
€ 441.00
4-4
4910000A107JJ
ref: 4-4
MODEL F E22
MODEL F
€ 592.50
5
6811000A50019
ref: 5
MODEL F
TAPE SET,FUEL TANK
€ 27.00
6
681114341069L
ref: 6
MODEL F
EMBLEM
681114341069L
€ 6.00
7-1
4410010A107JJ
ref: 7-1
MODEL G
TANK ASSY, FUEL
4410010A107JJ
€ 787.50
7-2
4410010A207JJ
ref: 7-2
MODEL G E22
TANK ASSY, FUEL
€ 787.50
7-3
4410010A107JK
ref: 7-3
MODEL G
TANK ASSY, FUEL
€ 592.50
7-4
4410010A207JK
ref: 7-4
MODEL G E22
TANK ASSY, FUEL
€ 592.50
8-1
6811000A608BV
ref: 8-1
MODEL G, FOR 7JJ
TAPE SET, FUEL TANK
€ 0.00
8-2
6811000A607JL
ref: 8-2
MODEL G, FOR 7JK
TAPE SET, FUEL TANK
€ 0.00
9
4420043410KEY
ref: 9
CAP ASSY,FUEL TANK
4420043410KEY
€ 125.50
10
0932910016
ref: 10
CUSHION
0932910016
€ 3.00
11
4454134500
ref: 11
CUSHION,FUEL TANK CTR
4454134500
€ 13.00
12
0932009017
ref: 12
CUSHION
0932009017
€ 3.00
13
0918006107
ref: 13
SPACER (6.4X9X20)
0918006107
€ 3.00
14
0916006030
ref: 14
WASHER (6.5X29X1.6)
0916006030
€ 2.50
15
0110706307
ref: 15
BOLT 6X30
€ 2.50
16
4425100A0057S
ref: 16
KNEE GRIP,FUEL TANK,UPPER
€ 39.00
17
4425200A0057S
ref: 17
GRIP,FUEL TANK KNEE LWR
4425200A0057S
€ 62.50
18
0211205088
ref: 18
SCREW
0211205088
€ 2.00
19
0832121057
ref: 19
LOCK WASHER
0832121057
€ 2.00
20
0832221057
ref: 20
WASHER
0832221057
€ 2.50
21
4425300A0057S
ref: 21
CAP,KNEE GRIP
4425300A0057S
€ 4.00
22
0934305165
ref: 22
HOSE,FUEL
0934305165
€ 13.00
23
0940108402
ref: 23
CLIP
0940108402
€ 1.50
24
0940718401
ref: 24
CLAMP(L:187)
0940718401
€ 2.00
