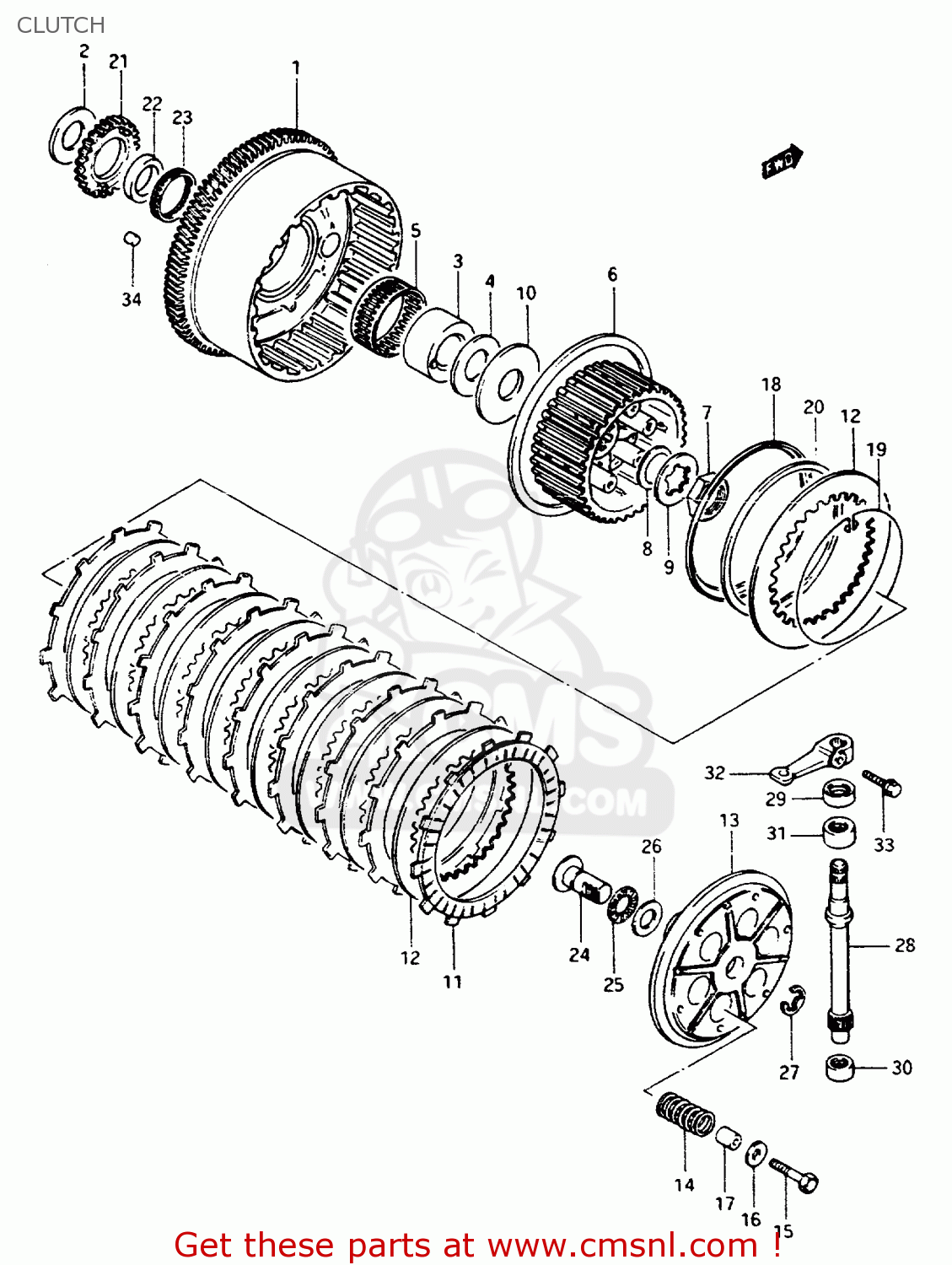

CLUTCH

ref

part #

description

quantity

1

2120000A01
ref: 1
NT:89,FROM 21200-00A

GEAR ASSEMBLY,PRIMARY DRIVE

€ 355.00

2

0916025055
ref: 2

WASHER(25X50X2.5)

€ 9.50

3

2125109300
ref: 3

SPACER

€ 44.50

4-1

2126109300
ref: 4-1

SHIM(T:1.00)

€ 8.50

4-2

2126209300
ref: 4-2

SHIM(T:1.05)

€ 6.00

4-3

2126309300
ref: 4-3

SHIM(T:1.10)

€ 8.50

4-4

2126409300
ref: 4-4

SHIM(T:1.15)

€ 8.50

4-5

2126509300
ref: 4-5

SHIM(T:1.20)

€ 8.50

5

0926351002
ref: 5

BEARING(51X56X28)

€ 37.00

6

2141000A00
ref: 6

HUB,CLUTCH SLEEVE

€ 151.50

7

0914024011
ref: 7

NUT

€ 8.50

8

0916424006
ref: 8

WASHER

€ 4.00

9

0916725007
ref: 9

WASHER,LOCK

€ 7.50

10

0916025022
ref: 10

WASHER(25X66X3.5)

€ 13.50

11

2144149200
ref: 11

PLATE,CLUTCH DRIVE (MCA)

€ 16.00

12

2145149200
ref: 12

PLATE,CLUTCH DRIVEN (NAS)

€ 6.00

13

2146249201
ref: 13

DISC,CLUTCH PRESSURE

€ 100.00

14

0944019014
ref: 14

SPRING

€ 4.50

15

0110706308
ref: 15

BOLT

€ 2.50

16

0916006020
ref: 16

WASHER

€ 2.00

17

0918006088
ref: 17

SPACER

€ 5.50

18

2147149100
ref: 18

SEAT,WAVE WASHER

€ 8.00

19

2148145100
ref: 19

RING,STOPPER

€ 5.00

20

0916400003
ref: 20

WASHER

€ 9.00

21

1632149000
ref: 21

GEAR,ENG OIL PUMP DRIVE(NT:34)

€ 78.50

22

1632545001
ref: 22

SPACER,OIL PUMP DRIVE GEAR

€ 13.50

23

0926336002
ref: 23

BEARING(36X40X10)

€ 24.50

24

2316549201
ref: 24

RACK,CLUTCH RELEASE

€ 21.00

25

0926315003
ref: 25

BEARING(15X28X2)

€ 7.00

26

0916015015
ref: 26

WASHER

€ 4.00

27

0833211128
ref: 27

E RING 12MM

€ 2.00

28

2326145400
ref: 28

PINION,CLUTCH RELEASE

€ 475.50

29

0928512002
ref: 29

OIL SEAL

€ 7.00

30

0926312014
ref: 30

BEARING(12X19X12)

€ 11.00

31

0926315012
ref: 31

BEARING(15X22X12)

€ 11.50

32

2327145400
ref: 32

ARM,CLUTCH RELEASE

€ 31.50

33

0154706208
ref: 33

BOLT (6X20)

€ 2.50

34

2121549000
ref: 34

CUSHION,PRIMARY DRIVEN GEAR

€ 3.00

all assemblies
