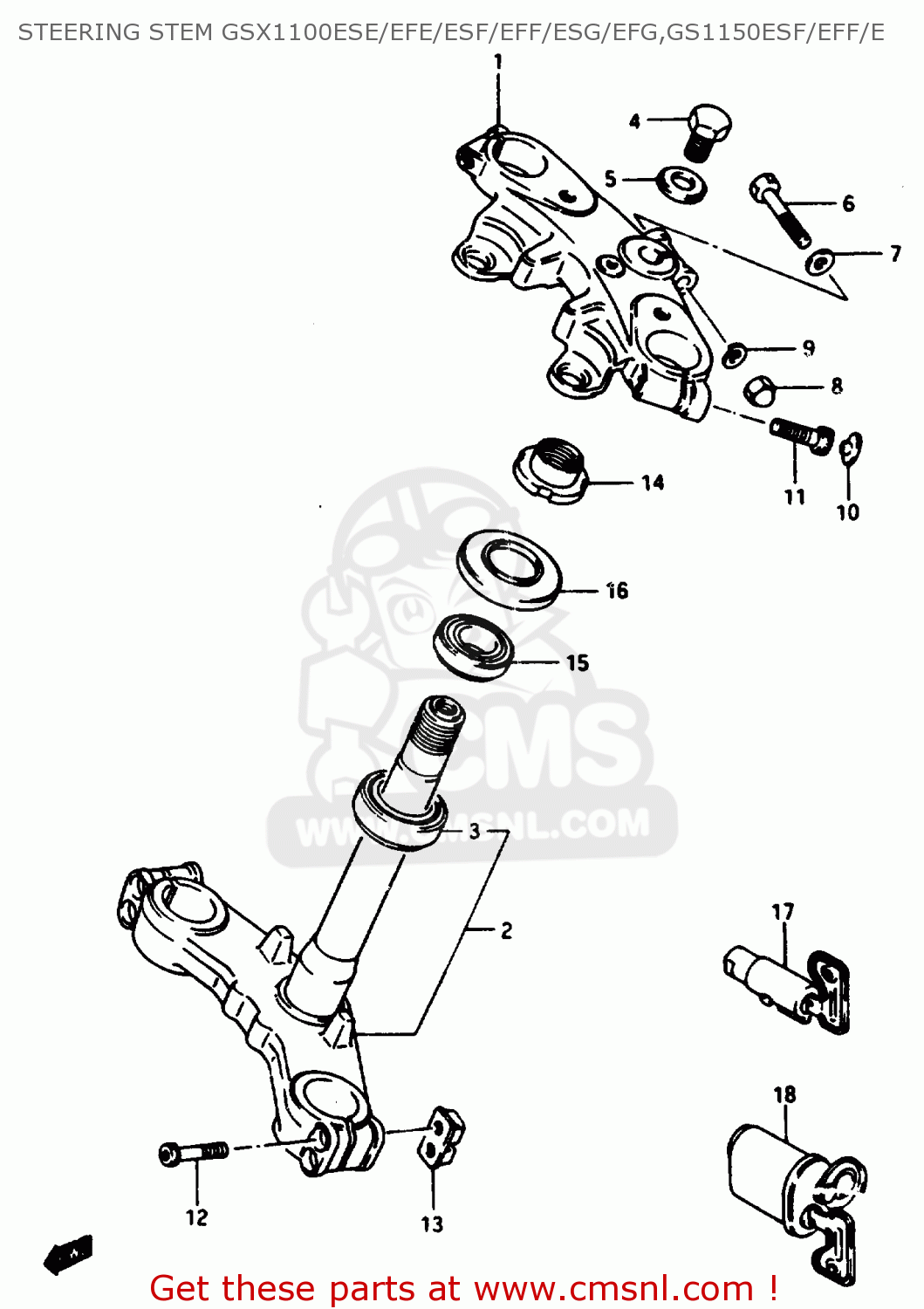

STEERING STEM GSX1100ESE/EFE/ESF/EFF/ESG/EFG,GS1150ESF/EFF/E

GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

Steering stem gsx1100ese/efe/esf/eff/esg/efg,gs1150esf/eff/e diagram GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

STEERING STEM GSX1100ESE/EFE/ESF/EFF/ESG/EFG,GS1150ESF/EFF/E GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

STEERING STEM GSX1100ESE/EFE/ESF/EFF/ESG/EFG,GS1150ESF/EFF/E GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

5131100A0015T
ref: 1

HEAD,STEERING STEM

€ 171.00

2

5141000A5015T
ref: 2

STEM,STEERING

€ 302.50

3

0926530005
ref: 3

BEARING

€ 49.50

4

5135345380
ref: 4

NUT,STEM HEAD

€ 8.50

5

5135649400
ref: 5

WASHER,STEERING STEM

€ 4.00

6

0110708505
ref: 6

BOLT

€ 3.00

7

0832211084
ref: 7

WASHER

€ 1.50

8

0831311085
ref: 8

NUT,M8X1.25X12

€ 2.00

9

0832121084
ref: 9

WASHER,LOCK,8.

€ 2.50

10

0925008010
ref: 10

CAP(OD:20)

€ 2.50

11

5135200A00
ref: 11

BOLT,FORK INNER TUBE FITTING

€ 6.00

12

0711008455
ref: 12

BOLT 8X45

€ 3.00

13

5145849000
ref: 13

NUT,FR FORK INNER TUBE

€ 5.00

14

5163134200
ref: 14

NUT,STEERING STEM

€ 23.00

15

0926525008
ref: 15

TAPER,ROLLER BEARING

€ 48.50

16

5164340502
ref: 16

DUST SEAL,STEERING UPR

€ 8.00

17

5190022662
ref: 17
E15,E22,E26

LOCK ASSEMBLY,STEERING (NEI

€ 168.50

18

5190045400
ref: 18
E17

LOCK ASSY, STEERING (NEIMAN TYPE EXECUTE

€ 0.00
