STEERING STEM (GSX1100EE/EF/EG)

GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

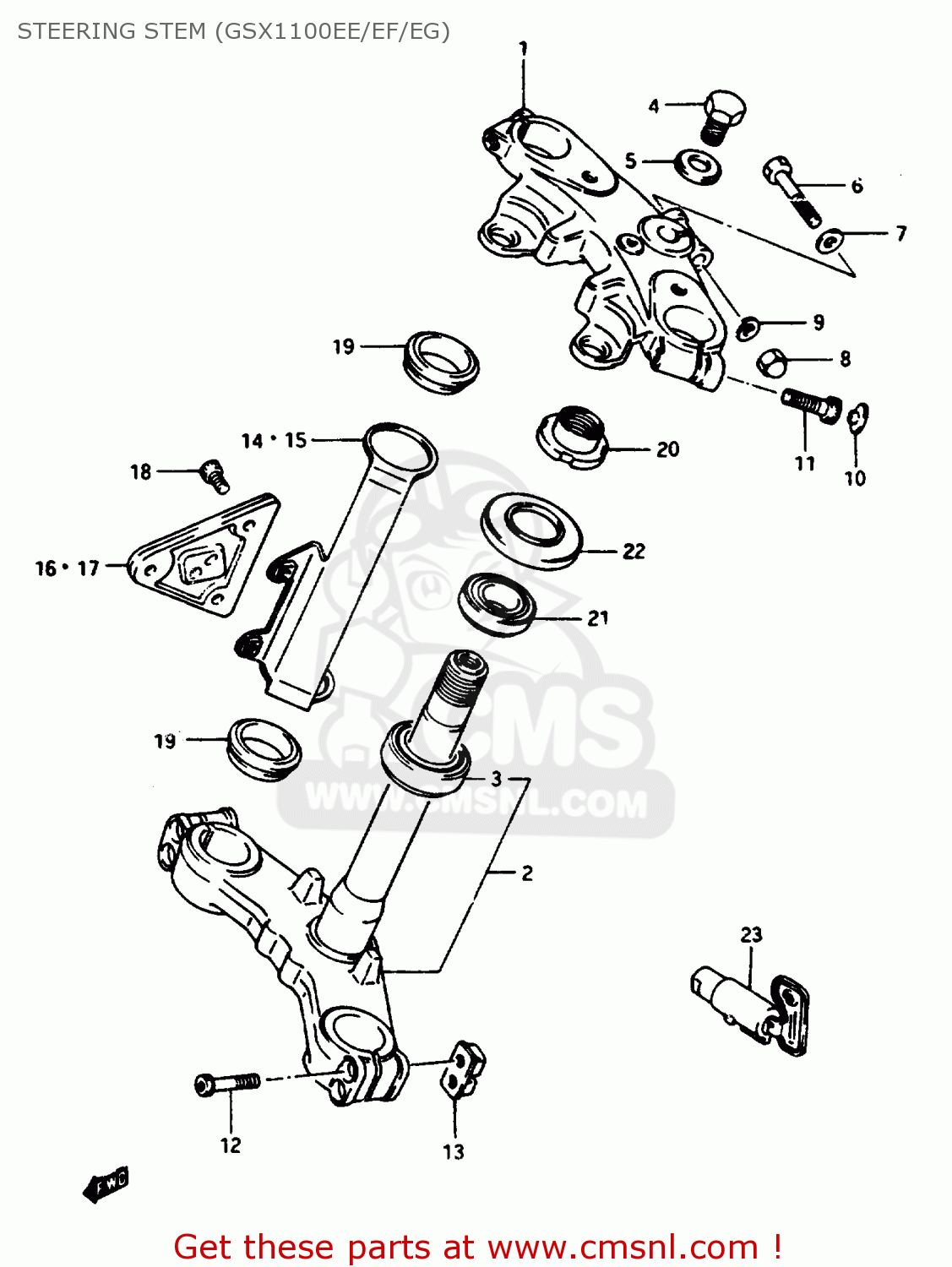

Steering stem (gsx1100ee/ef/eg) diagram GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

STEERING STEM (GSX1100EE/EF/EG) GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

STEERING STEM (GSX1100EE/EF/EG) GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

5131100A0015T
ref: 1

HEAD,STEERING STEM

€ 171.00

2

5141000A2015T
ref: 2

STEM,STEERING

€ 364.50

3

0926530005
ref: 3

BEARING

€ 49.50

4

5135345380
ref: 4

NUT,STEM HEAD

€ 8.50

5

5135649400
ref: 5

WASHER,STEERING STEM

€ 4.00

6

0110708505
ref: 6

BOLT

€ 3.00

7

0832211084
ref: 7

WASHER

€ 1.50

8

0831311085
ref: 8

NUT,M8X1.25X12

€ 2.00

9

0832121084
ref: 9

WASHER,LOCK,8.

€ 2.50

10

0925008010
ref: 10

CAP(OD:20)

€ 2.50

11

5135200A00
ref: 11

BOLT,FORK INNER TUBE FITTING

€ 6.00

12

0711008455
ref: 12

BOLT 8X45

€ 3.00

13

5145849000
ref: 13

NUT,FR FORK INNER TUBE

€ 5.00

14

5153000A0015T
ref: 14

COVER, FORK RH (BLACK)

€ 94.00

15

5154000A0015T
ref: 15

COVER, FORK LH (BLACK)

€ 30.00

16

5153200A0015T
ref: 16

BRACKET,HEADLAMP,RIGHT N

€ 55.50

17

5154200A0015T
ref: 17

BRACKET,HEADLAMP,LEFT N

€ 55.50

18

5175304700
ref: 18

BOLT

€ 2.50

19

5155349000
ref: 19

CUSHION,HEADLAMP BRACKET

€ 4.50

20

5163134200
ref: 20

NUT,STEERING STEM

€ 23.00

21

0926525008
ref: 21

TAPER,ROLLER BEARING

€ 48.50

22

5164340502
ref: 22

DUST SEAL,STEERING UPR

€ 8.00

23

5190022662
ref: 23
E22

LOCK ASSEMBLY,STEERING (NEI

€ 168.50
