CYLINDER (E.NO.101425~)

GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

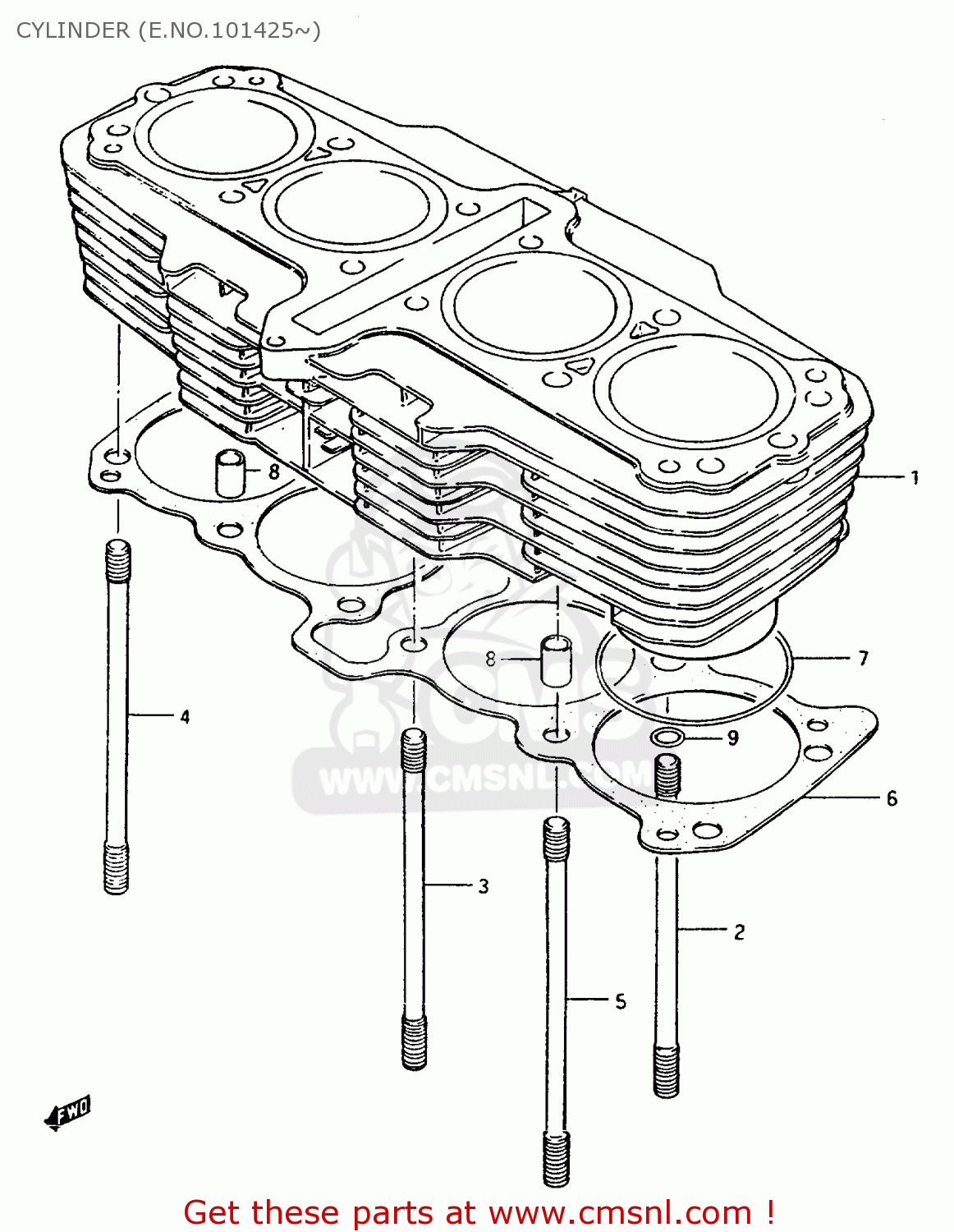

Cylinder (e.no.101425~) diagram GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

CYLINDER (E.NO.101425~) GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

CYLINDER (E.NO.101425~) GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

1121000A06
ref: 1

CYLINDER

€ 1,033.00

2

0910810070
ref: 2

STUD

€ 5.50

3

0910810069
ref: 3

BOLT,STUD

€ 7.00

4

0910810071
ref: 4

STUD

€ 9.00

5

0910810068
ref: 5

BOLT,STUD

€ 6.50

6

1124100A10
ref: 6

GASKET,CYLINDER HEAD (NAS)

€ 18.00

7

0928077002
ref: 7

O RING(D:2,ID:77)

€ 6.00

8

0920613006
ref: 8

PIN

€ 9.00

9

0928011005
ref: 9

O RING(D:2.4,ID:11)

€ 4.50
