OIL PUMP - OIL FILTER

GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

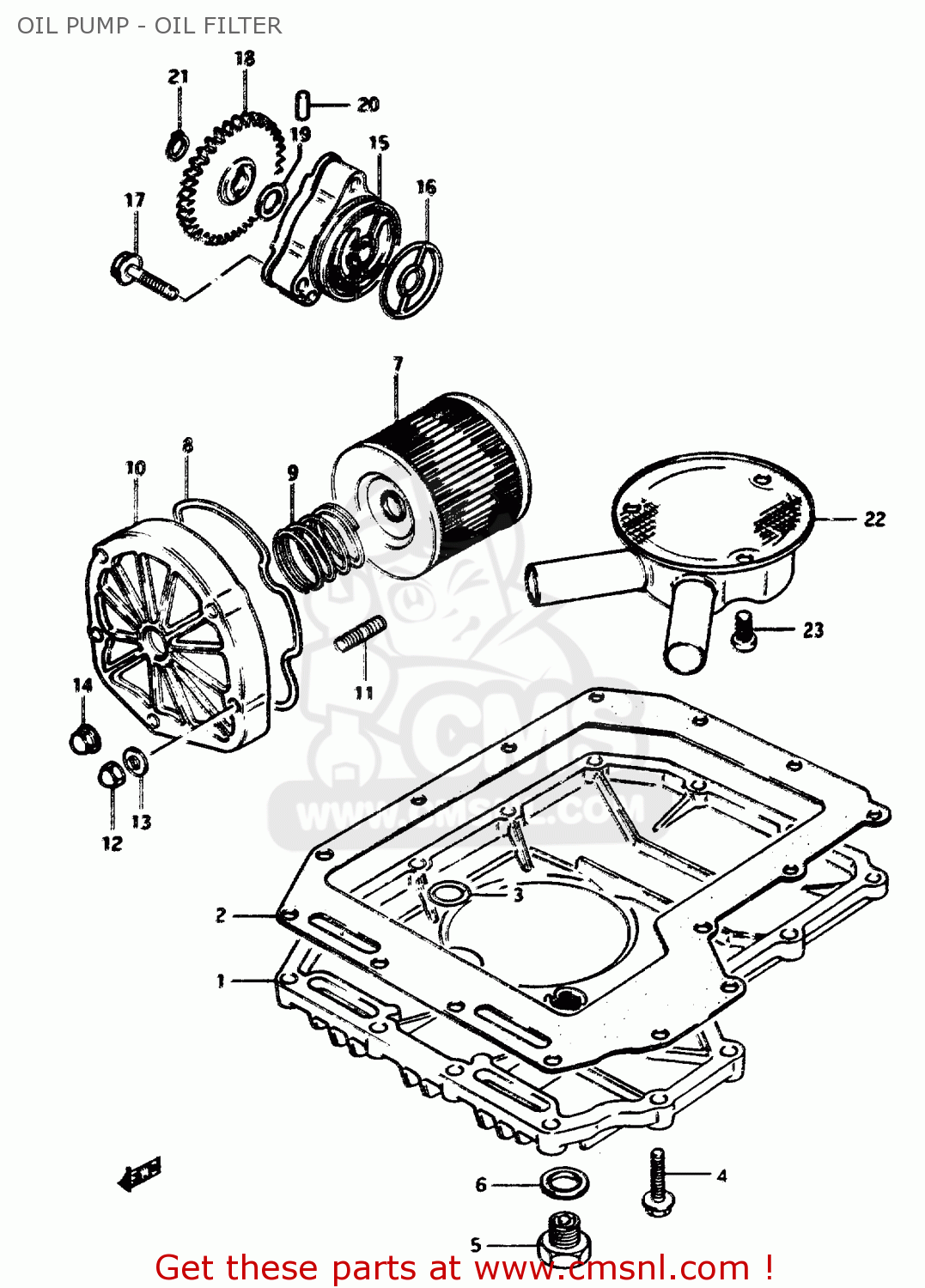

Oil pump - oil filter diagram GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

OIL PUMP - OIL FILTER GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)
OIL PUMP - OIL FILTER GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)
OIL PUMP - OIL FILTER GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
1151149201
ref: 1
PAN,OIL
1151149201
€ 255.50
2-1
1148949200
ref: 2-1
~E.NO.102247
GASKET,OIL PAN (MCA)
1148949200
€ 13.00
2-2
1148949201
ref: 2-2
E.NO.102248~
GASKET,OIL PAN (MCA)
1148949201
€ 13.00
3
0928013001
ref: 3
O RING(D:3.2,ID:12.9)
0928013001
€ 4.00
4
0151706254
ref: 4
BOLT
€ 2.50
5
0924714001
ref: 5
PLUG
0924714001
€ 5.00
6
0916814004
ref: 6
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
7
1651045040
ref: 7
FILTER ASSY,ENGINE OIL
1651045040
€ 7.50
8
1651849200
ref: 8
O RING,OIL FILTER CHAMBER CAP
1651849200
€ 8.50
9
0944032004
ref: 9
SPRING
0944032004
€ 13.50
10
1653100A00
ref: 10
CAP,ENGINE OIL FILTER
1653100A00
€ 151.50
11
0142106258
ref: 11
STUD 6X25
0142106258
€ 2.50
12
0831311065
ref: 12
MODEL E/F
NUT 6MM
0831311065
€ 2.00
13
0832221064
ref: 13
MODEL E/F
WASHER
0832221064
€ 2.00
14
0831321065
ref: 14
MODEL G
NUT
€ 2.00
15
1640049220
ref: 15
PUMP ASSY,ENGINE OIL
1640049220
€ 155.00
16
1649131300
ref: 16
O RING,OIL PUMP
1649131300
€ 12.50
17
0910306045
ref: 17
BOLT(6X32)
0910306045
€ 3.00
18
1633149000
ref: 18
GEAR,ENG OIL PUMP DRIVEN(NT:33
1633149000
€ 84.50
19
0822110185
ref: 19
SHIM
0822110185
€ 2.00
20
0926104009
ref: 20
PIN(4X15.8)
0926104009
€ 1.50
21
0833131109
ref: 21
CIRCLIP
0833131109
€ 2.00
22
1652049200
ref: 22
STRAINER,ENGINE OIL
1652049200
€ 58.50
23
0211206128
ref: 23
SCREW 6X12
0211206128
€ 2.00
