CRANKSHAFT

GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

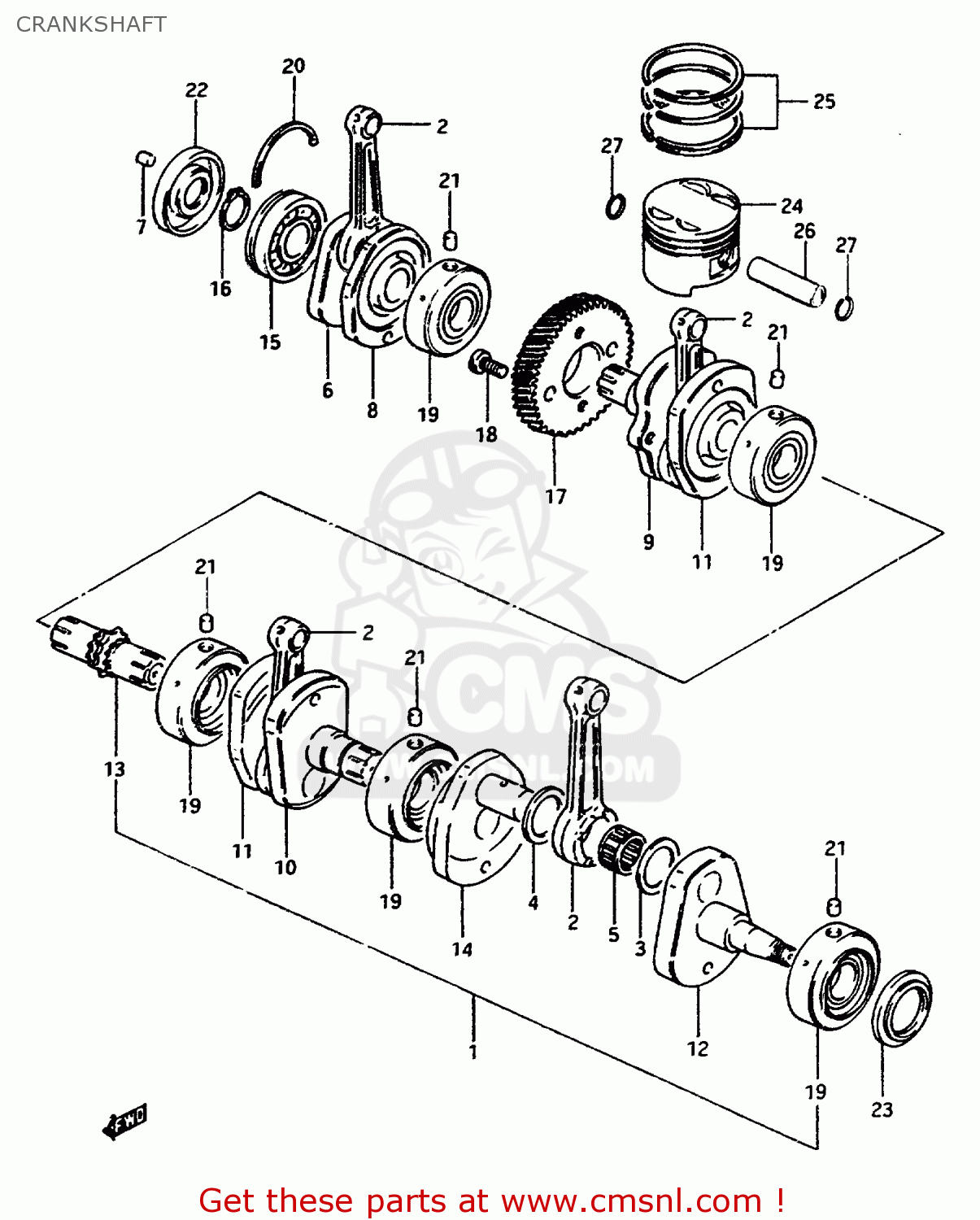

Crankshaft diagram GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

CRANKSHAFT GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

CRANKSHAFT GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

1220000A06
ref: 1
TO 12200-00A07

CRANKSHAFT ASSEMBLY

€ 2,190.50

2

1216100A03
ref: 2

ROD,CONNECTING

€ 127.00

3

0916031002
ref: 3

WASHER(31X48.5X1)

€ 7.00

4

0916031003
ref: 4

WASHER(31X48.5X2)

€ 11.50

5

0926331004
ref: 5

BEARING(31X39X21)

€ 53.00

6

1222049202
ref: 6

CRANKSHAFT,RIGHT

€ 153.00

7

0422104089
ref: 7

PIN

€ 1.50

8

1223049201
ref: 8

WEB,CRANK

€ 218.00

9

1224149202
ref: 9

CRANKSHAFT

€ 153.00

10

1227149202
ref: 10

CRANKSHAFT,MIDDLE,LEFT

€ 89.50

11

1225049201
ref: 11

WEB,CRANK,MIDDLE

€ 153.00

12

1226149601
ref: 12

CRANKSHAFT,LH

€ 211.50

13

1228149200
ref: 13

SHAFT,TIMING CHAIN DRIVE

€ 93.50

14

1229049201
ref: 14

WEB,CRANK,LEFT

€ 228.50

15

0926230033
ref: 15

BEARING(30X72X19)

€ 47.00

16

0833111308
ref: 16

CIRCLIP,30MM

€ 3.00

17

2111100A00
ref: 17

GEAR,PRIMARY DRIVE

€ 105.00

18

0910608043
ref: 18

BOLT

€ 3.00

19

0926432009
ref: 19

BEARING(32X72X21)

€ 138.00

20

0939072004
ref: 20

C RING

€ 3.00

21

0422107129
ref: 21

PIN

€ 1.50

22

0928330021
ref: 22

SEAL,OIL(30X72X11)

€ 22.00

23

0928948002
ref: 23

SEAL,OIL(47.3X60X6.5)

€ 12.00

24-1

1211100A07
ref: 24-1

PISTON (74.00MM)

€ 91.00

24-2

1211100A07050
ref: 24-2
OPT

PISTON (OS:0.5)

€ 173.00

24-3

1211100A07100
ref: 24-3
OPT

PISTON (OS:1.0)

€ 157.00

25-1

1214000A24
ref: 25-1

RING SET,PISTON

€ 69.00

25-2

1214000A24050
ref: 25-2
OPT

RING SET,PISTON (OS:0.5)

€ 41.50

25-3

1214000A24100
ref: 25-3
OPT

RING SET,PISTON

€ 19.00

26

1215100A10
ref: 26

PIN,PISTON

€ 12.00

27

0938120004
ref: 27

CIRCLIP,PISTON PIN

€ 2.00
