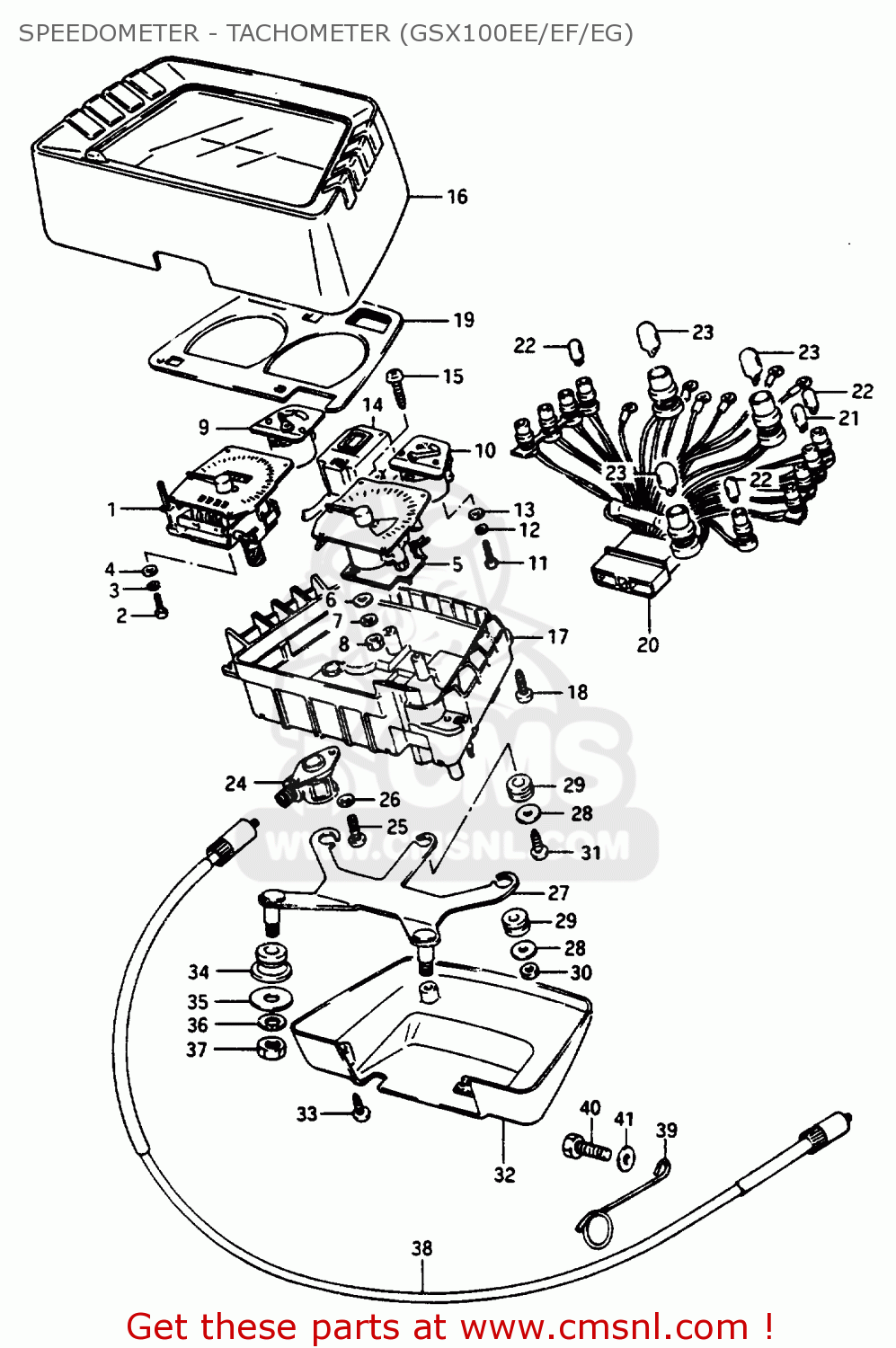

SPEEDOMETER - TACHOMETER (GSX100EE/EF/EG) - GSX1100ES 1984 (E) (E01 E06 E17 E24 E39)

ref

part #

description

quantity

1-1

3412000A11
ref: 1-1

SPEEDOMETER (KILO)

€ 275.00

1-2

3412000A21
ref: 1-2

SPEEDOMETER (MILE/KILO)

€ 374.50

1-3

3412000A51
ref: 1-3
E22

SPEEDOMETER (KILO)

€ 275.00

2

0211203106
ref: 2

SCREW

€ 1.50

3

0832121036
ref: 3

LOCK WASHER

€ 1.50

4

0832221036
ref: 4

WASHER 3.3X8X0

€ 1.50

5-1

3422000A11
ref: 5-1

METER,TACHOMETER

€ 278.50

5-2

3422000A31
ref: 5-2
E24

TACHOMETER

€ 278.50

6

0832221048
ref: 6

WASHER

€ 2.00

7

0832131046
ref: 7

LOCK WASHER

€ 2.00

8

0831022048
ref: 8

NUT 4MM

€ 2.00

9

3432000A11
ref: 9

METER,FUEL

€ 95.50

10-1

3473000A11
ref: 10-1

OIL TEMPERATURE METER (DEGREES C)

€ 99.50

10-2

3473000A31
ref: 10-2

METER,OIL TEMPERATURE

€ 0.00

11

0211203126
ref: 11

SCREW

€ 2.50

12

0832121036
ref: 12

LOCK WASHER

€ 1.50

13

0832221036
ref: 13

WASHER 3.3X8X0

€ 1.50

14

3645049910
ref: 14

INDICATOR ASSEMBLY,GEAR POSITION

€ 220.00

15

0321204109
ref: 15

SCREW

€ 2.00

16-1

3415000A10
ref: 16-1

HOOD,METER

€ 120.00

16-2

3415000A40
ref: 16-2
E22,MODEL G E2

HOOD, METER

€ 120.00

17

3411100A10
ref: 17

CASE,METER

€ 78.50

18

0321204109
ref: 18

SCREW

€ 2.00

19

3415300A10
ref: 19

PLATE,METER WINDOW

€ 35.00

20-1

3417000A10
ref: 20-1

SOCKET UNIT,METER

€ 97.00

20-2

3417000A50
ref: 20-2
E22,MODEL G E2

SOCKET, METER

€ 97.00

21

0947112100
ref: 21

BULB(12V1.7W,WB372,T7)

€ 2.00

22

0947112085
ref: 22

BULB(12V3W,WB371,T7)

€ 3.00

23

0947112082
ref: 23

BULB(12V3.4W,T10,BF175-01450A)

€ 3.50

24

3413149300
ref: 24

GEAR BOX,SPEEDOMETER

€ 197.50

25

0211204106
ref: 25

SCREWM4X0.7X10

€ 1.00

26

0832121046
ref: 26

LOCK WASHER

€ 2.00

27

3495000A10
ref: 27

BRACKET,METER

€ 45.50

28

3418149300
ref: 28

WASHER,COMBINATION METER

€ 1.50

29

3495528010
ref: 29

CUSHION

€ 4.00

30

0831022048
ref: 30

NUT 4MM

€ 2.00

31

0314204169
ref: 31

SCREW

€ 2.00

32

3419300A10
ref: 32

COVER,METER,UNDER

€ 54.50

33

0311204125
ref: 33

SCREW

€ 1.50

34

3495631001
ref: 34

CUSHION,METER BRACKET

€ 4.50

35

0916008057
ref: 35

WASHER (8.5X20X1.6)

€ 2.00

36

0832121084
ref: 36

WASHER,LOCK,8.

€ 2.50

37

0831011085
ref: 37

NUT

€ 1.50

38

3491033400
ref: 38

CABLE ASSY,SPEEDOMETER

€ 28.50

39

3493845100
ref: 39

CLAMP,SPEEDOMETER CABLE

€ 14.50

40

0110706168
ref: 40

BOLT, UPPER

€ 3.00

41

0832221068
ref: 41

WASHER

€ 2.00
