FRONT BRAKE HOSE

GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

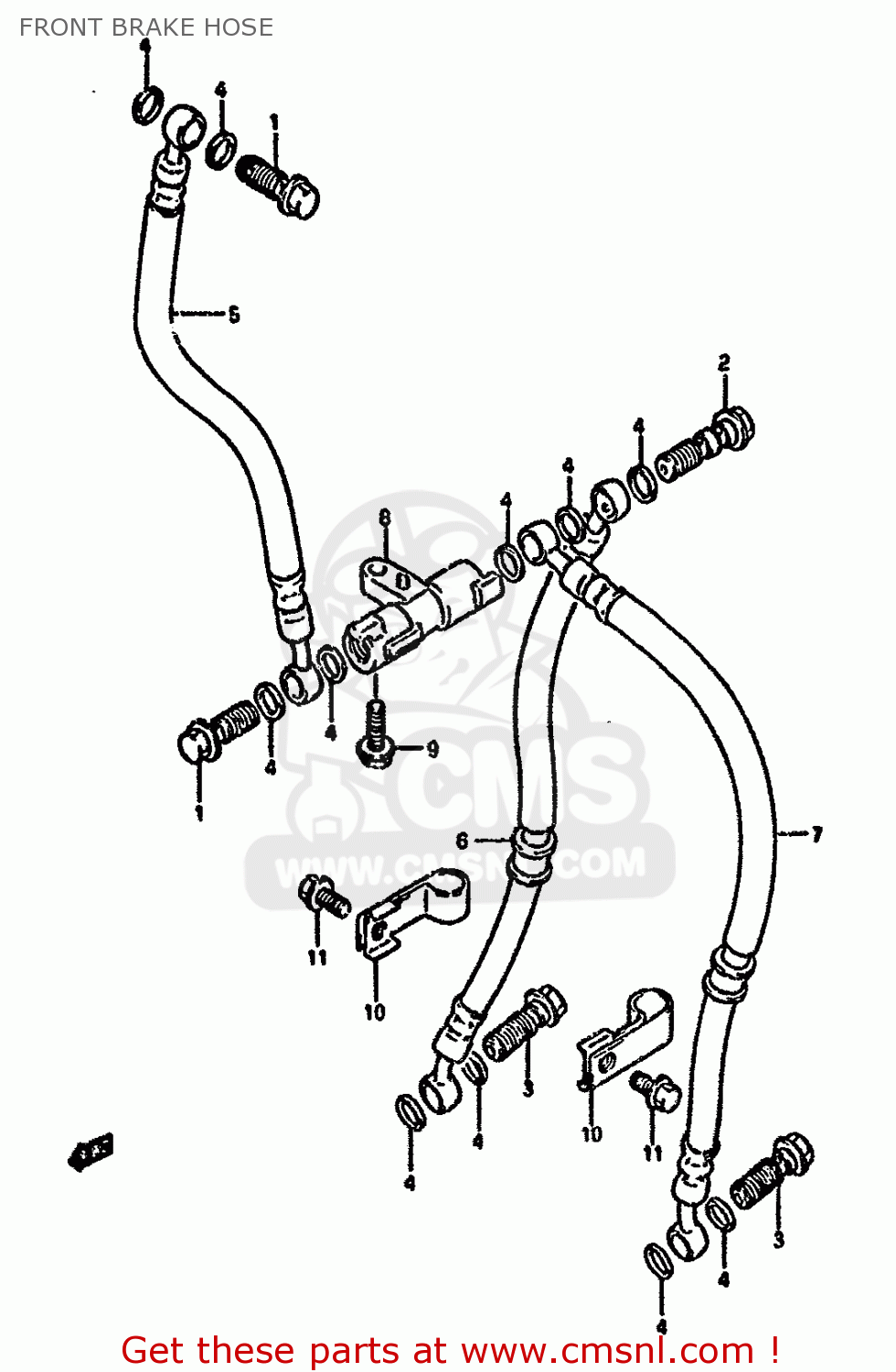

Front brake hose diagram GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

0936010017
ref: 1-1
MODEL M/N/P

BOLT UNION

€ 6.50

1-2

0936010039
ref: 1-2
MODEL R

BOLT UNION

€ 6.50

0936010018
ref: 2

BOLT UNION

€ 7.00

3-1

0936010033
ref: 3-1
MODEL M/N/P

BOLT 10X1.25X24

€ 5.00

3-2

0936010040
ref: 3-2
MODEL R

BOLT UNION

€ 5.00

0916110009
ref: 4

WASHER(10X15X1.5)

€ 2.00

5948026D00
ref: 5

HOSE COMP,FRONT BRAKE

€ 43.50

5924026D10
ref: 6

HOSE,FRONT BRAKE,NO.2 RH

€ 47.50

5944026D10
ref: 7

HOSE,FRONT BRAKE,NO.2 LH

€ 48.50

5949112C10
ref: 8

JOINT,BRAKE HOSE

€ 24.00

9-1

0151706164
ref: 9-1
MODEL M/N/P

BOLT

€ 2.50

9-2

0155006163
ref: 9-2
MODEL R

BOLT

€ 2.50

5926801D10
ref: 10

CLAMP,FRONT BRAKE NO.2

€ 6.00

11-1

0151706125
ref: 11-1
MODEL M/N/P

BOLT 6X12

€ 2.50

11-2

0155006123
ref: 11-2
MODEL R

BOLT

€ 2.50
