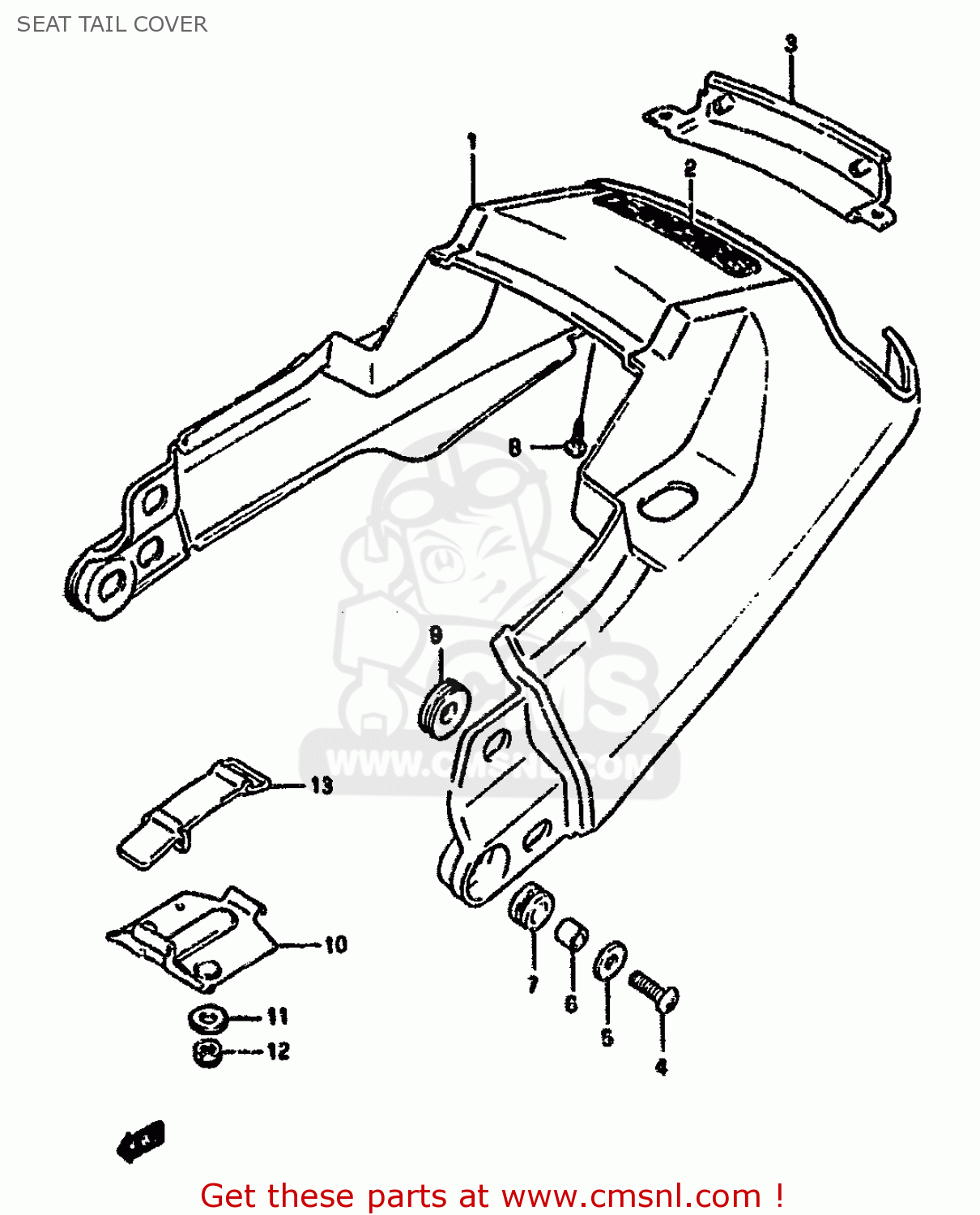

SEAT TAIL COVER

ref

part #

description

quantity

1-1

4550026D0020F
ref: 1-1

COVER ASSEMBLY,SEAT TAIL

€ 375.00

1-2

4550026D0033J
ref: 1-2
MODEL M

COVER ASSEMBLY,SEAT TAIL

€ 267.50

1-3

4550026D0013Z
ref: 1-3
MODEL N/P

COVER ASSY,SEAT TAIL(BLACK)

€ 272.50

1-4

4550026D000FJ
ref: 1-4
MODEL M

COVER ASSEMBLY,SEAT TAIL

€ 349.50

1-5

4550026D001AC
ref: 1-5
MODEL M/N

COVER ASSY,SEAT TAIL(GRAY)

€ 272.50

1-6

4550026D001HU
ref: 1-6
MODEL R

COVER ASSY,SEAT TAIL (PURPLE)

€ 0.00

1-7

4550026D002AX
ref: 1-7
MODEL R

COVER ASSY,SEAT TAIL(BLACK)

€ 267.50

2-1

6813226D0123S
ref: 2-1
FOR 20F,33J,OFJ,13Z

EMBLEM

€ 8.00

2-2

6813226D0120H
ref: 2-2
FOR 1AC

EMBLEM,SEAT TAIL COVER

€ 8.00

2-3

6813226D010RN
ref: 2-3
MODEL R FOR 33J,1HU

EMBLEM,SEAT TAIL COVER

€ 8.00

3-1

4551426D0020F
ref: 3-1

COVER,SEAT TAIL LWR

€ 33.50

3-2

4551426D0033J
ref: 3-2
MODEL M/R

COVER,SEAT TAIL LWR

€ 33.50

3-3

4551426D0013Z
ref: 3-3
MODEL N/P

COVER,SEAT TAIL,LOWER

€ 33.50

3-4

4551426D000FJ
ref: 3-4
MODEL M

COVER,SEAT TAIL,LOWER

€ 33.50

3-5

4551426D001AC
ref: 3-5
MODEL M/N

COVER,SEAT TAIL,LOWER

€ 33.50

3-6

4551426D001HU
ref: 3-6
MODEL R

COVER,SEAT TAIL LOWER (PURPLE)

€ 33.50

4-1

0214206205
ref: 4-1
MODEL M/N/P

SCREW, CENTER

€ 2.00

4-2

0214206203
ref: 4-2
MODEL R

SCREW

€ 2.00

5

0916006056
ref: 5

WASHER(6.5X18X1)

€ 2.00

6

0918006152
ref: 6

SPACER

€ 3.00

7

0932009016
ref: 7

CUSHION

€ 2.50

8-1

0354104125
ref: 8-1
MODEL M/N/P

SCREW

€ 1.50

8-2

0354114123
ref: 8-2
MODEL R

SCREW

€ 2.00

9

0932008018
ref: 9

CUSHION

€ 4.00

10

4155049200
ref: 10

HOLDER,TOOL

€ 10.00

11

0916006006
ref: 11

WASHER

€ 2.00

12

0831921066
ref: 12

NUT

€ 2.00

13

0946200072
ref: 13

BAND

€ 3.50

all assemblies
