REAR CUSHION LEVER

GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

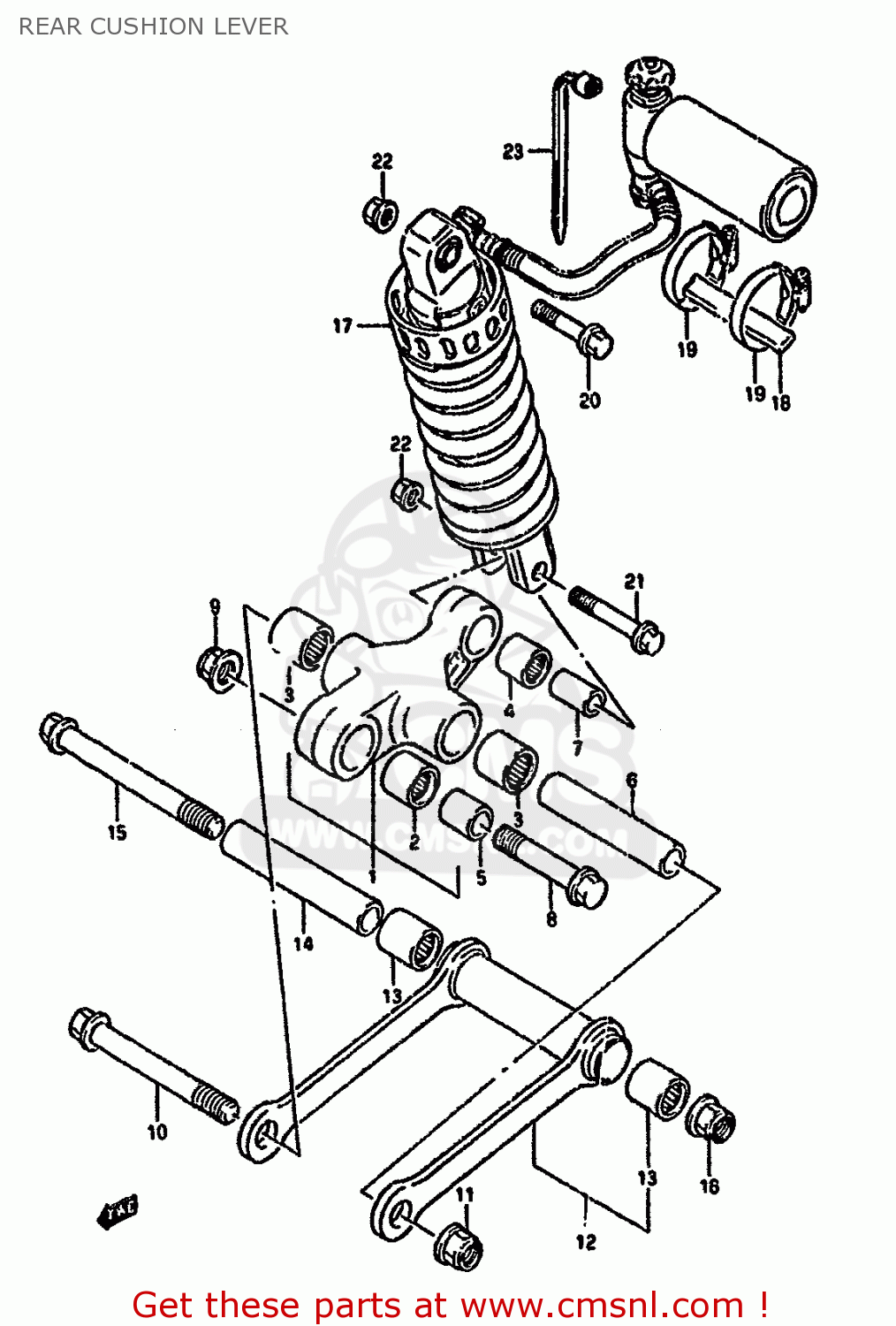

Rear cushion lever diagram GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

REAR CUSHION LEVER GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
REAR CUSHION LEVER GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
REAR CUSHION LEVER GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
6860026840
ref: 1
LEVER SET,REAR CUSHION
€ 0.00
2
0926320074
ref: 2
BEARING(20X27X32)
0926320074
€ 25.00
3
0926320071
ref: 3
BEARING(20X27X23.5)
0926320071
€ 21.50
4
0926317034
ref: 4
BEARING(17X24X26)
0926317034
€ 21.50
5
0918014014
ref: 5
SPACER(14X20X34)
0918014014
€ 11.50
6
0918014020
ref: 6
SPACER(14X20X99)
0918014020
€ 24.50
7
6268401D10
ref: 7
SPACER,REAR CUSHION LEVER
€ 11.50
8
0910314016
ref: 8
BOLT(14X66)
0910314016
€ 6.50
9
0831931145
ref: 9
NUT 14MM
€ 9.00
10
0910314017
ref: 10
BOLT(14X129)
0910314017
€ 14.50
11
0831931145
ref: 11
NUT 14MM
€ 9.00
12
6260026860
ref: 12
ROD SET,REAR CUSHION LOWER
€ 102.50
13
0926320071
ref: 13
BEARING(20X27X23.5)
0926320071
€ 21.50
14
0918014021
ref: 14
SPACER (14X20X129)
0918014021
€ 18.50
15
0910314018
ref: 15
BOLT(14X159)
€ 10.50
16
0831931145
ref: 16
NUT 14MM
€ 9.00
17-1
6210026D10
ref: 17-1
MODEL M/N 62100-26D1
ABSORBER ASSY,REAR SHOCK
€ 1,118.00
17-2
6210026D11
ref: 17-2
MODEL P/R
ABSORBER ASSY,RR SHOCK
€ 1,118.00
18
6233148B00
ref: 18
CUSHION, RESERVOIR TANK
€ 5.50
19
0940243501
ref: 19
CLAMP
€ 8.50
20
0910310064
ref: 20
BOLT(10X50)
0910310064
€ 4.50
21
0910310185
ref: 21
BOLT(10X60)
0910310185
€ 3.00
22
0831931105
ref: 22
NUT 10MM
€ 3.00
23
0940718402
ref: 23
CLAMP(L:165)
0940718402
€ 2.50
