FUEL PUMP

GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

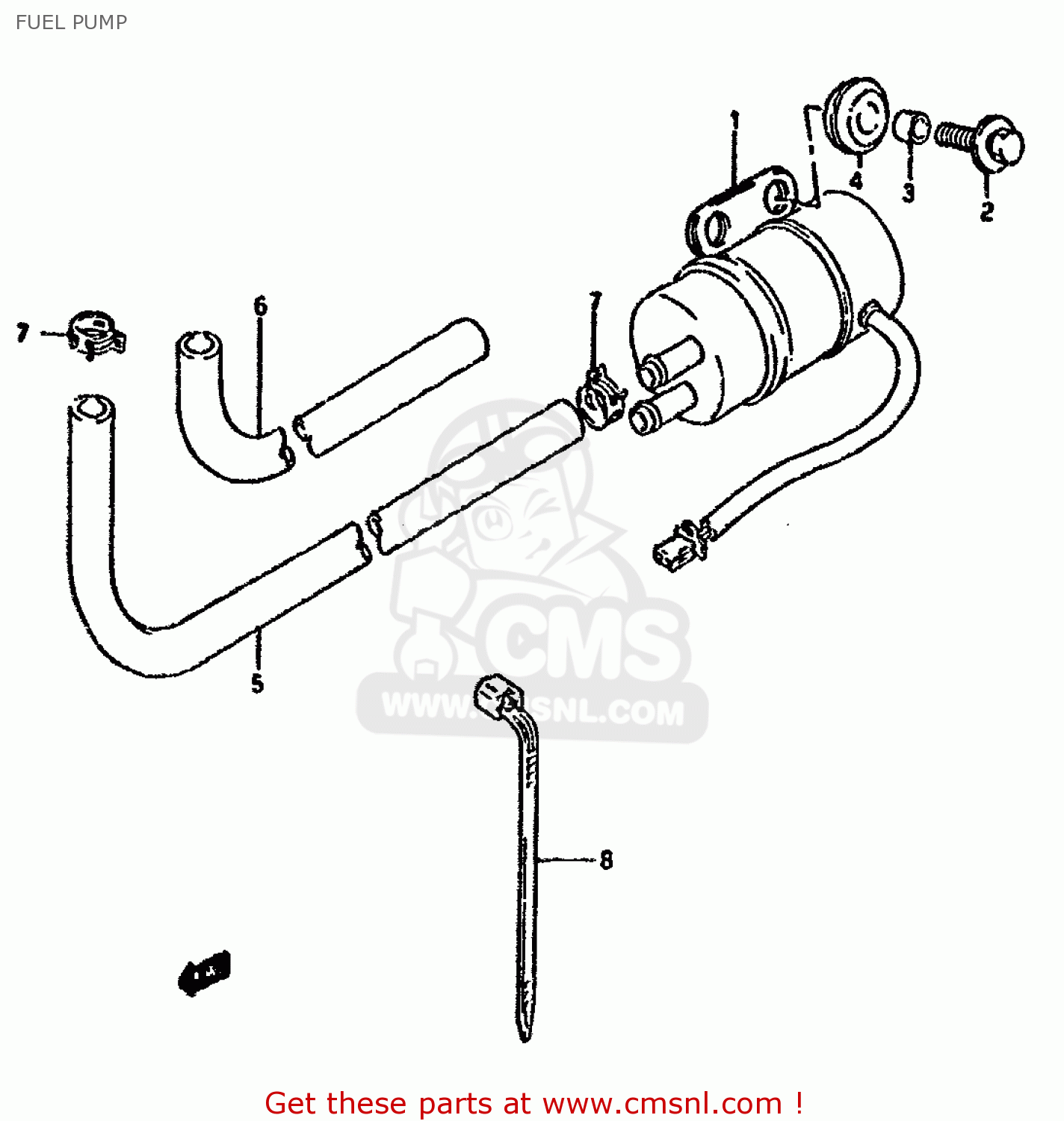

Fuel pump diagram GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1510026D00
ref: 1

PUMP ASSY,FUEL

€ 260.50

0911606010
ref: 2

BOLT(6X20)

€ 2.00

0918006011
ref: 3

SPACER (6.1X9X9)

€ 2.00

0932009026
ref: 4

CUSHION

€ 4.00

093547013300A
ref: 5
L:1000 620

HOSE (7X13X1000)

€ 36.00

0935114152600
ref: 6
L:600 580

PROTECTOR(14.5X15.5X600)

€ 9.00

0940112404
ref: 7

CLIP

€ 2.50

0940714403
ref: 8
MODEL M

CLAMP(L:125)

€ 2.50
