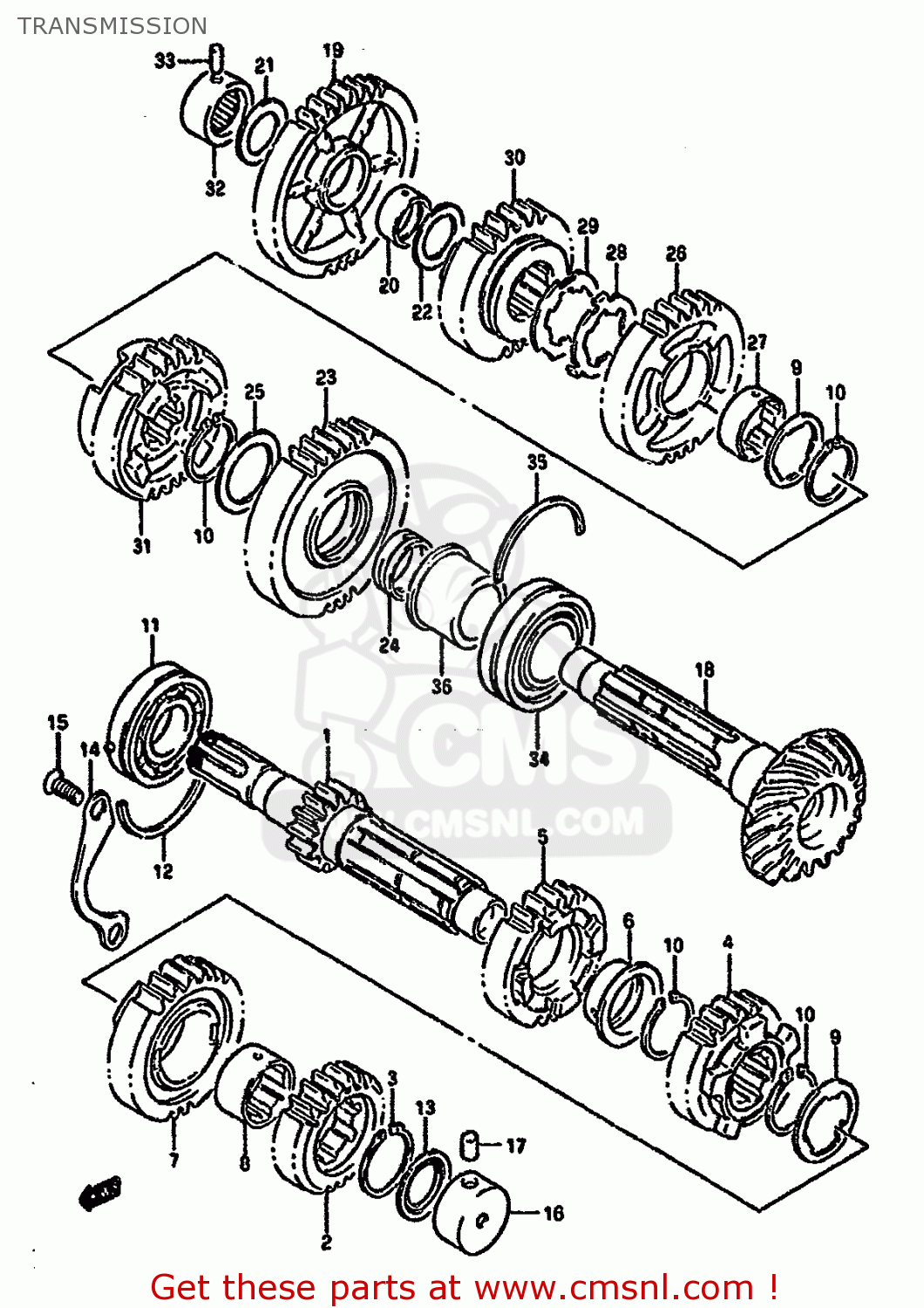

TRANSMISSION

ref

part #

description

quantity

1-1

2412126D01
ref: 1-1
MODEL M/N/P

SHAFT,COUNTER

€ 186.50

1-2

2412126D10
ref: 1-2
MODEL R

SHAFT,COUNTER

€ 186.50

2

2422126D00
ref: 2

GEAR,2ND DRIVE

€ 86.50

3

0938028008
ref: 3

CIRCLIP

€ 5.00

4

2423126D02
ref: 4

GEAR,THIRD DRIVE

€ 164.50

5

2424126D00
ref: 5

GEAR,4TH DRIVE

€ 117.50

6

0930128001
ref: 6

BUSH(28X32X2)

€ 19.50

7

2425126D01
ref: 7

GEAR,FIFTH DRIVE

€ 115.50

8

2433224A00
ref: 8

BUSH

€ 18.00

9

0916728001
ref: 9

WASHER,LOCK

€ 3.00

10

0833131286
ref: 10

CIRCLIP

€ 2.50

11

0926225051
ref: 11

BEARING(25X62X17)

€ 59.50

12

0939062006
ref: 12

C-RING

€ 5.00

13

0928520006
ref: 13

SEAL,OIL(20X31.2X2.7)

€ 7.00

14

2474127A00
ref: 14

RETAINER,CNTR SHAFT BEARING

€ 7.00

15-1

0212206167
ref: 15-1
MODEL M/N/P

SCREW

€ 2.00

15-2

0212206163
ref: 15-2
MODEL R

SCREW ,6X16

€ 2.00

16

0926320049
ref: 16

BEARING(20X34X17.5)

€ 58.00

17

0422107129
ref: 17

PIN

€ 1.50

18

2413126D04
ref: 18
24131-26D03

SHAFT,DRIVE

€ 205.50

19

2431126D00
ref: 19

GEAR,1ST DRIVEN

€ 127.50

20

0930022005
ref: 20

BUSHING

€ 19.50

21

0821120341
ref: 21

WASHER

€ 2.00

22

0821122341
ref: 22

WASHER

€ 3.00

23

2432126D01
ref: 23

GEAR,2ND DRIVEN

€ 174.50

24

0930028002
ref: 24

BUSH(28X32X11)

€ 15.50

25

0821128381
ref: 25

WASHER, THRUST

€ 3.50

26

2433126D00
ref: 26

GEAR,3RD DRIVEN

€ 117.00

27

2433249000
ref: 27

BUSH,3RD DRIVEN GEAR

€ 13.50

28

0916928002
ref: 28

WASHER,LOCK

€ 6.00

29

0916728002
ref: 29

WASHER,LOCK

€ 3.00

30

2434126D00
ref: 30

GEAR,4TH DRIVEN

€ 130.50

31

2435126D01
ref: 31

GEAR,5TH DRIVEN

€ 134.50

32

0926320040
ref: 32

BEARING(20X34X20)

€ 42.50

33

0422107209
ref: 33

PIN

€ 1.50

34

0926740002
ref: 34

BEARING(40X80X30.2)

€ 141.50

35

0939080004
ref: 35

C RING

€ 7.00

36

2413226D00
ref: 36

SPACER,DRIVE SHAFT BEARING

€ 36.50
