WIRING HARNESS

GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

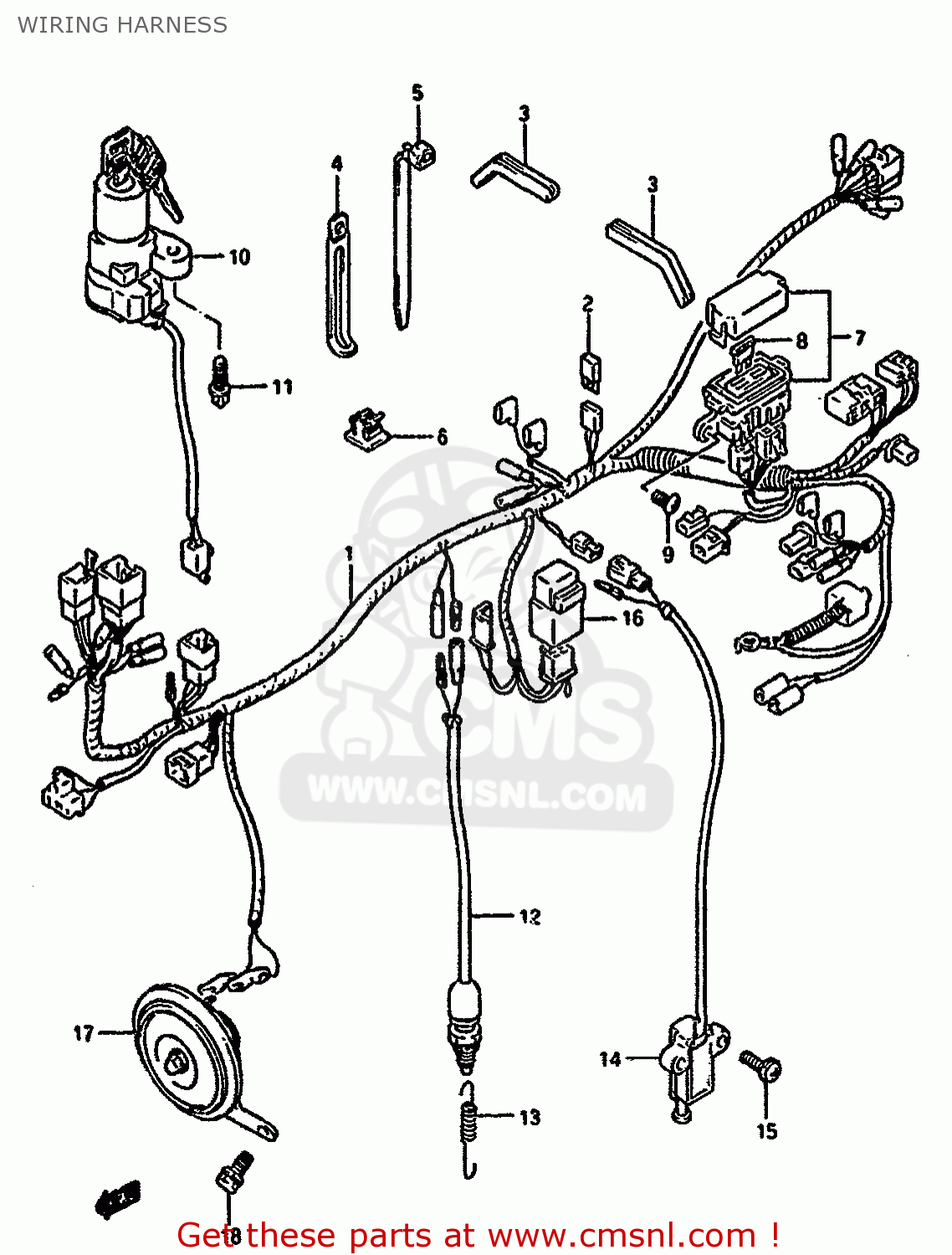

Wiring harness diagram GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

WIRING HARNESS GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
WIRING HARNESS GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
WIRING HARNESS GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3661026D20
ref: 1-1
MODEL M/N/P
HARNESS,WIRING
€ 263.50
1-2
3661026D60
ref: 1-2
MODEL R
HARNESS,WIRING
€ 0.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
3692026D00
ref: 3
PROTECTOR,WIRING HARNESS
€ 2.50
4-1
0940406404
ref: 4-1
CLAMP
0940406404
€ 3.00
4-2
0940408404
ref: 4-2
CLAMP
€ 3.00
5-1
0940714403
ref: 5-1
CLAMP(L:125)
0940714403
€ 2.50
5-2
0940718402
ref: 5-2
CLAMP(L:165)
0940718402
€ 2.50
5-3
0940722404
ref: 5-3
CLAMP
0940722404
€ 2.50
6
0940800098
ref: 6
CLAMP
€ 5.50
7
3674034C01
ref: 7
BOX ASSEMBLY,FUSE
3674034C01
€ 58.50
8-1
0948110101
ref: 8-1
FUSE(10A)
0948110101
€ 2.50
8-2
0948125101
ref: 8-2
FUSE (25A)
0948125101
€ 2.50
9
0214206123
ref: 9
SCREW 6X12
0214206123
€ 2.00
10-1
3710026D00
ref: 10-1
MODEL M/N
LOCK ASSEMBLY,STEERING
€ 134.00
10-2
3710026D02
ref: 10-2
MODEL P/R 37100-26D0
LOCK ASSEMBLY,STEERING
3710026D02
€ 134.00
11
0913906026
ref: 11
SCREW(6X18)
0913906026
€ 2.50
12-1
3774004A10
ref: 12-1
MODEL M/N/P
SWITCH ASSY,STOP LAMP
3774004A10
€ 22.00
12-2
3774045D00
ref: 12-2
MODEL R
SWITCH ASSY,STOP LAMP
3774045D00
€ 20.50
13
0944306012
ref: 13
SPRING
0944306012
€ 3.00
14-1
3784006B11
ref: 14-1
MODEL M/N/P
SWITCH ASSEMBLY,SIDE STAND
€ 100.50
14-2
3784026D00
ref: 14-2
MODEL R
SWITCH ASSY,SI
€ 100.50
15-1
0211236305
ref: 15-1
MODEL M/N/P
SCREW
€ 2.50
15-2
0211236303
ref: 15-2
MODEL R
SCREW
€ 2.50
16
3874024X50
ref: 16
38740-24B10
RELAY ASSY
3874024X50
€ 37.50
17
3850026D00
ref: 17
HORN ASSEMBLY
€ 37.50
18-1
0113406125
ref: 18-1
MODEL M/N/P
BOLT ,6X12
€ 1.50
18-2
0157006123
ref: 18-2
MODEL R
BOLT
0157006123
€ 1.50
