REAR COMBINATION LAMP

GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

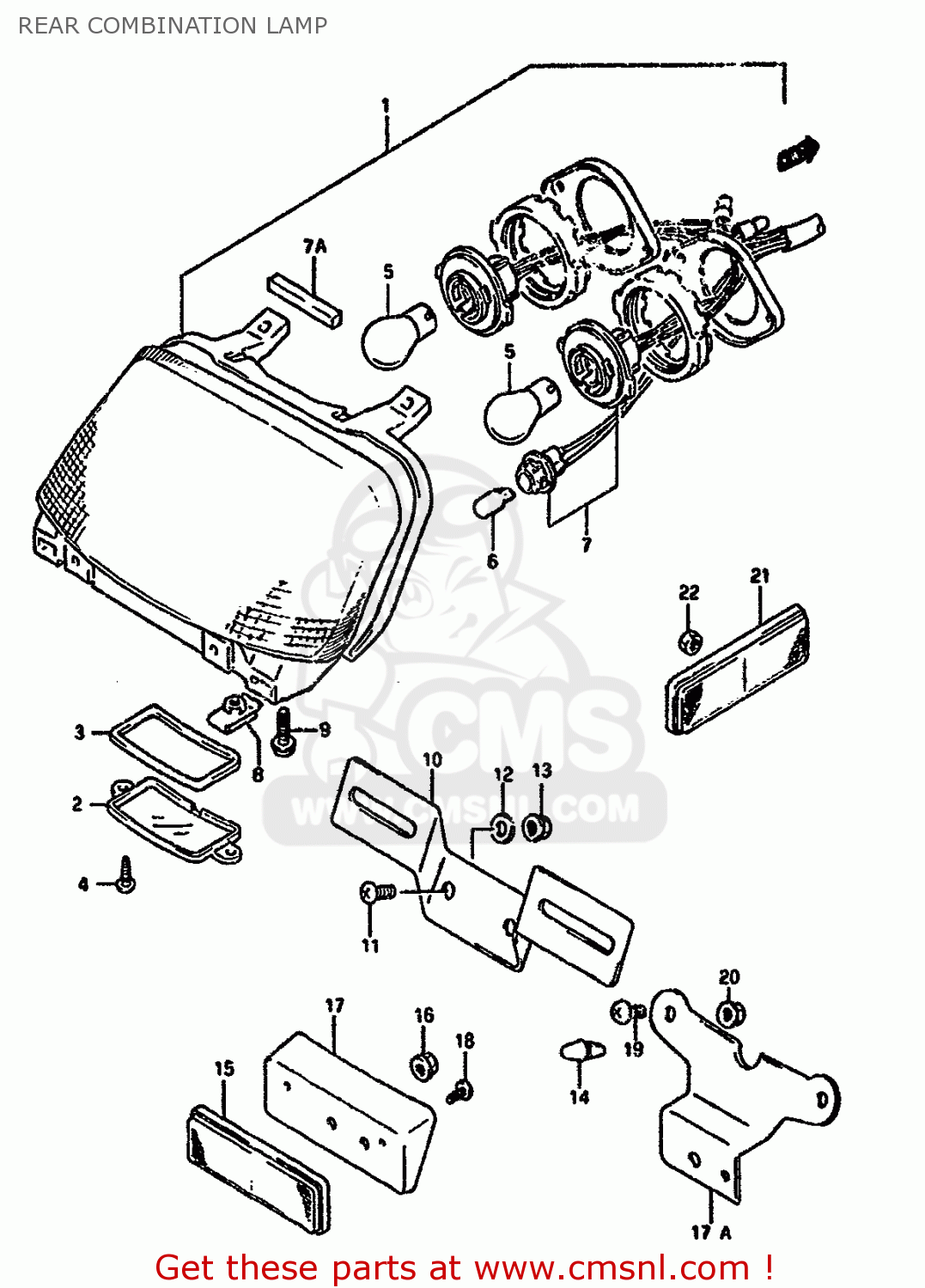

Rear combination lamp diagram GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

REAR COMBINATION LAMP GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
REAR COMBINATION LAMP GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
REAR COMBINATION LAMP GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
3571026D00
ref: 1
LAMP ASSY,RR COMBINATION
3571026D00
€ 299.50
2
3591226D00
ref: 2
LENS,LICENSE
€ 7.50
3
3591326D00
ref: 3
GASKET (NAS)
3591326D00
€ 3.50
4
0321104123
ref: 4
SCREW
0321104123
€ 1.50
5
0947112083
ref: 5
BULB(12V21/5W)
0947112083
€ 6.00
6
0947112081
ref: 6
BULB(12V5W)
0947112081
€ 1.50
7
3571826D00
ref: 7
CORD ASSEMBLY
€ 30.50
7A
5631416B00
ref: 7A
CUSHION,HANDLE COVER
€ 2.00
8
9448432B00
ref: 8
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
9-1
0214215205
ref: 9-1
MODEL M/N/P
SCREW
€ 2.00
9-2
0214205203
ref: 9-2
MODEL R
SCREW 5X20
0214205203
€ 2.00
10
3592744110
ref: 10
PLATE,RR LICENSE
3592744110
€ 22.50
11-1
0211206164
ref: 11-1
MODEL M/N/P
SCREW
€ 2.00
11-2
0211206163
ref: 11-2
MODEL R
SCREW 6X16
0211206163
€ 2.00
12
0916006031
ref: 12
WASHER (6.3X14X1.6)
€ 2.00
13
0831610063
ref: 13
NUT
0831610063
€ 2.50
14
0932106023
ref: 14
CUSHION
0932106023
€ 2.00
15-1
3597000A21
ref: 15-1
REFLECTOR ASSEMBLY,REAR
3597000A21
€ 22.00
15-2
3597024D60
ref: 15-2
E24
REFLECTOR ASSY,RR
3597024D60
€ 19.50
16-1
0831626056
ref: 16-1
MODEL M/N/P
NUT
€ 2.00
16-2
0831610053
ref: 16-2
MODEL R
NUT
0831610053
€ 2.50
17
3597712C00
ref: 17
SPACER,RR RR
3597712C00
€ 8.00
17A
3597401D00
ref: 17A
E2,E21,E34,E53
BRACKET,RR RR
3597401D00
€ 3.50
18-1
0354104125
ref: 18-1
MODEL M/N/P
SCREW
0354104125
€ 1.50
18-2
0354104123
ref: 18-2
MODEL R
SCREW
0354104123
€ 1.50
19
0214206123
ref: 19
E2,E21,E34,E53
SCREW 6X12
0214206123
€ 2.00
20
0831620063
ref: 20
E2,E21,E34,E53
NUT
0831620063
€ 2.00
21
3595043431
ref: 21
E39,MODEL P/R E18
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
22-1
0831022055
ref: 22-1
E39,MODEL P E18
NUT 5MM
0831022055
€ 2.00
22-2
0831000053
ref: 22-2
MODEL R E18
NUT
€ 2.50
