HEADLAMP (MODEL M/N/P E1,E2,E24)

GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

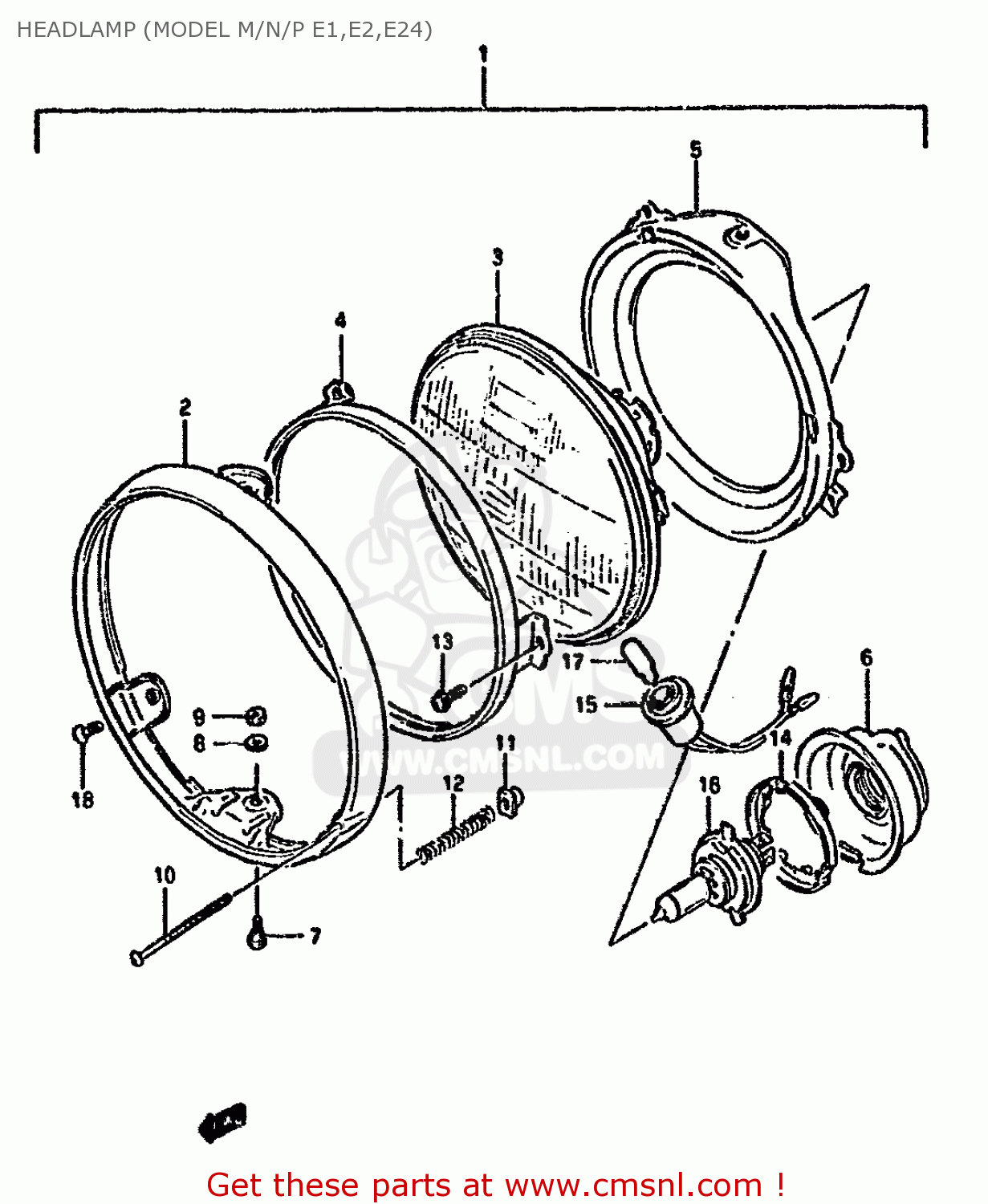

Headlamp (model m/n/p e1,e2,e24) diagram GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3510001D20
ref: 1

HEADLAMP ASSY

€ 234.00

3511101D20
ref: 2

RIM,HEADLAMP

€ 55.50

3512134300
ref: 3

LAMP UNIT

€ 115.00

3512745030
ref: 4

RETAINING RING

€ 19.50

3513045030
ref: 5

RING

€ 29.50

3517345000
ref: 6

COVER,HEADLAMP SOCKET

€ 14.50

3518115611
ref: 7

H/LAMP LENS UNIT FITING SCRE

€ 3.00

0832101057
ref: 8

WASHER,LOCK

€ 2.00

0831000053
ref: 9

NUT

€ 2.50

3515145030
ref: 10

SCREW,HEADLAMP ADJUST

€ 4.00

3515215611
ref: 11

NUT

€ 3.50

3515431900
ref: 12

SPRING,ADJUSTING

€ 3.50

0211204106
ref: 13

SCREWM4X0.7X10

€ 1.00

3513634400
ref: 14

SETTING,BULB

€ 4.50

3611801D20
ref: 15

SOCKET

€ 11.50

0947112060
ref: 16

BULB(12V60/55W,H4)

€ 8.00

0947112063
ref: 17

BULB(12V4W)

€ 6.00

0212205127
ref: 18

SCREW

€ 2.50
