SIGNAL GENERATOR

GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

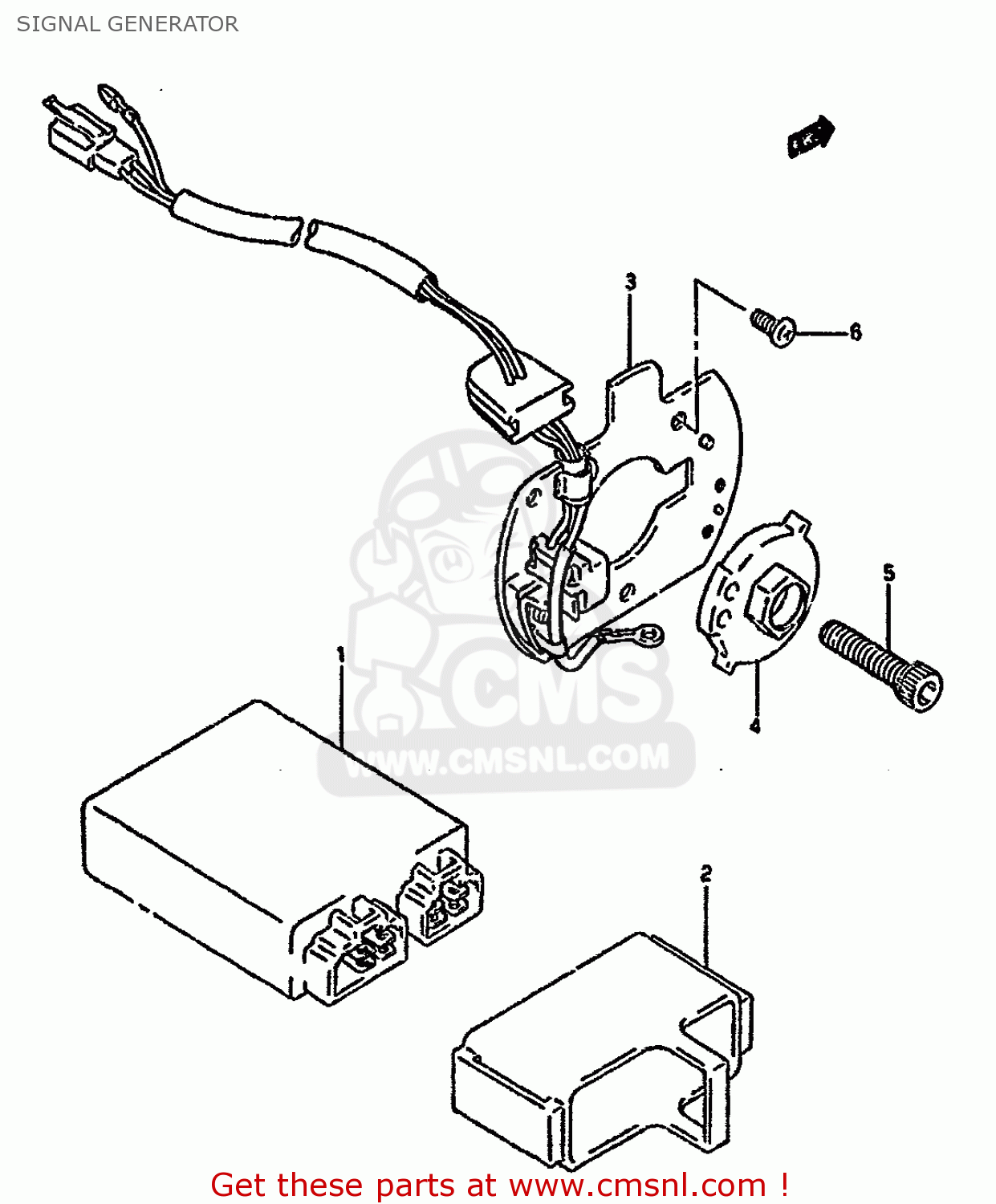

Signal generator diagram GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

3290026D00
ref: 1-1

IGNITER ASSEMBLY

€ 626.00

1-2

3290026D20
ref: 1-2
E22

IGNITER ASSY

€ 0.00

2-1

3298040C00
ref: 2-1
MODEL M/N/P

CUSHION,IGNITER

€ 9.50

2-2

3298040C01
ref: 2-2
MODEL R

CUSHION,IGNITOR

€ 9.50

3311017C00
ref: 3
33110-19C00

GENERATOR ASSY,SIGNAL

€ 324.00

3312019C00
ref: 4

ROTOR,SIGNAL

€ 182.00

5-1

0711008306
ref: 5-1
MODEL M/N/P

BOLT

€ 3.00

5-2

0712008303
ref: 5-2
MODEL R

BOLT

€ 3.50

6-1

0211205107
ref: 6-1
MODEL M/N/P

SCREW

€ 2.00

6-2

0211205103
ref: 6-2
MODEL R

SCREW

€ 2.00
