CRANKCASE COVER
GSX1300R HAYABUSA 2007 (K7) USA (E03)

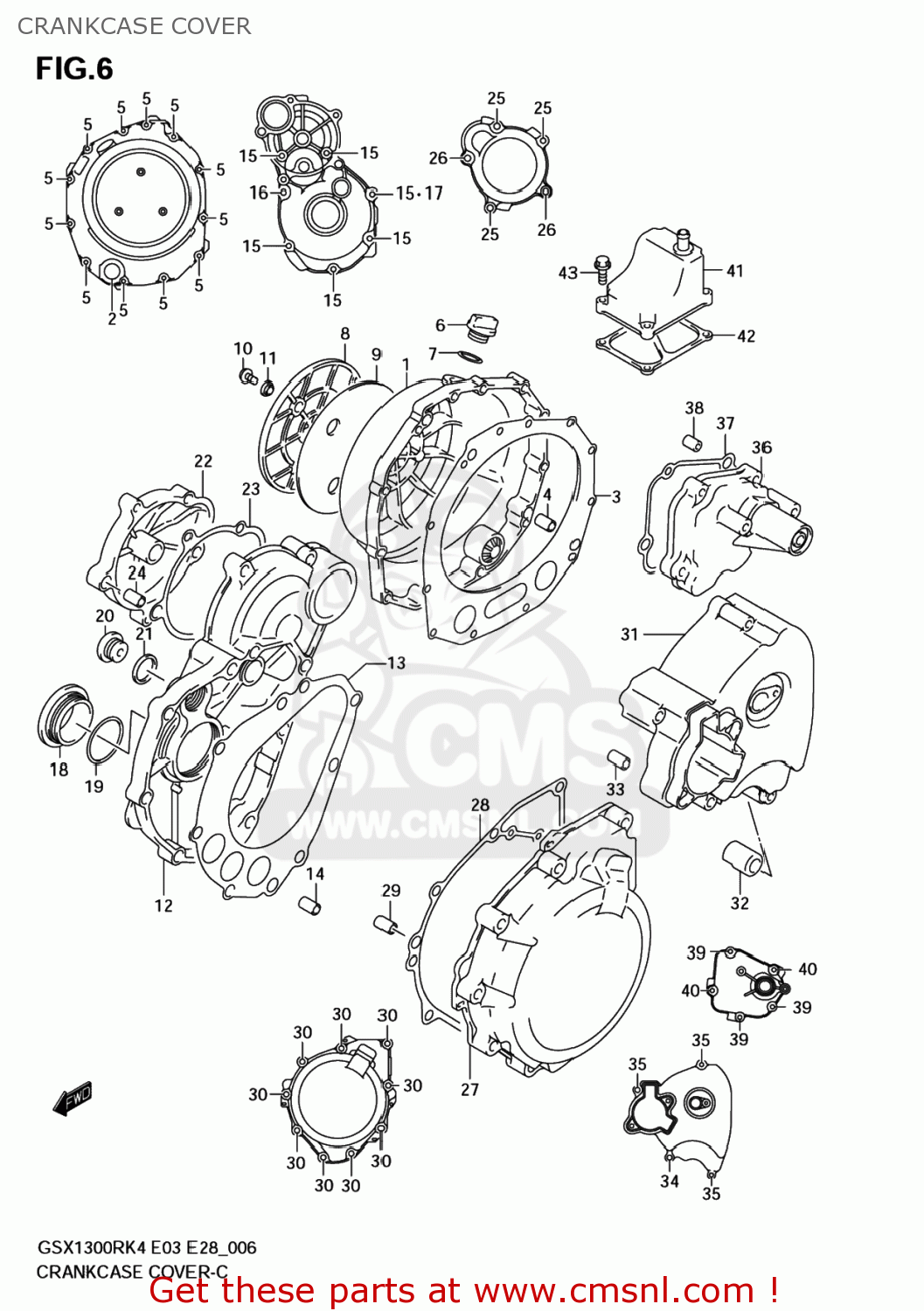

Crankcase cover diagram GSX1300R HAYABUSA 2007 (K7) USA (E03)
CRANKCASE COVER GSX1300R HAYABUSA 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134024F01
ref: 1
COVER,CLUTCH
€ 198.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148224F00
ref: 3
GASKET,CL COVER (NAS)
€ 17.00
4
0421109189
ref: 4
PIN
€ 2.00
5
0910306213
ref: 5
BOLT(6X30)
€ 2.50
6
1197125D00
ref: 6
PLUG,ENGINE OIL FILLER
€ 5.50
7
0928017003
ref: 7
O RING(D:3.1,ID:16.8)
€ 2.00
8
1137124F00
ref: 8
COVER,CLUTCH OUTER
€ 42.50
9
1137224F00
ref: 9
CUSHION,CLUTCH OUTER COVER
€ 9.50
10
0913906107
ref: 10
SCREW(6X16)
€ 4.00
11
1137324F00
ref: 11
WASHER,CLUTCH OUTER COV SCREW
€ 3.00
12
1138024F20
ref: 12
COVER,STARTER CLUTCH
€ 174.00
13
1149124F01
ref: 13
GASKET,STARTER CLUTCH COVER (NAS)
€ 9.00
14
0421109149
ref: 14
PIN
€ 2.00
15
0910306212
ref: 15
BOLT(6X25)
€ 2.50
16
0910306214
ref: 16
BOLT(6X35)
€ 2.50
17
0916806023
ref: 17
GASKET(5.8X13X1.2) (NAS)
€ 2.00
18
0925936021
ref: 18
PLUG
€ 11.00
19
0928033004
ref: 19
O RING(D:3.1,ID:32.7)
€ 2.50
20
0924816012
ref: 20
PLUG,16X8
€ 4.50
21
0916816002
ref: 21
GASKET(16X22X2) (NAS)
€ 2.00
22
1138224F20
ref: 22
CAP,STARTER IDLE GEAR
€ 46.00
23
1149224F00
ref: 23
GASKET,START IDLE GEAR CAP (NAS)
€ 6.50
24
0421109149
ref: 24
PIN
€ 2.00
25
0910306212
ref: 25
BOLT(6X25)
€ 2.50
26
0910306214
ref: 26
BOLT(6X35)
€ 2.50
27
1135124F00
ref: 27
COVER,MAGNETO
€ 73.00
28
1148324F00
ref: 28
GASKET,MAGNETO COVER (NAS)
€ 10.00
29
0421109149
ref: 29
PIN
€ 2.00
30
0910306213
ref: 30
BOLT(6X30)
€ 2.50
31
1136124F10
ref: 31
COVER,ENGINE SPROCKET
€ 134.00
32
1136224F00
ref: 32
PROTECTOR,ENGINE SPRKT COVER
€ 5.00
33
0421109149
ref: 33
PIN
€ 2.00
34
0910306215
ref: 34
BOLT(6X40)
€ 2.00
35
0910306216
ref: 35
BOLT(6X55)
€ 2.50
36
1138324F00
ref: 36
COVER,GEAR SHIFT
€ 74.50
37
1148524F00
ref: 37
GASKET,GEAR SHIFT COVER (NAS)
€ 7.00
38
0421109149
ref: 38
PIN
€ 2.00
39
0154706253
ref: 39
01547-0625B
SCREW
€ 2.50
40
0154706353
ref: 40
01547-0635B
BOLT
€ 3.00
41
1133024F01
ref: 41
COVER,BREATHER
€ 30.00
42
1131824F01
ref: 42
GASKET,BREATHER COVER (NAS)
€ 6.00
43
0154706303
ref: 43
01547-0630B
BOLT,G/S SWITC
€ 3.00
