REAR MASTER CYLINDER

GSX1300R HAYABUSA 2007 (K7) USA (E03)

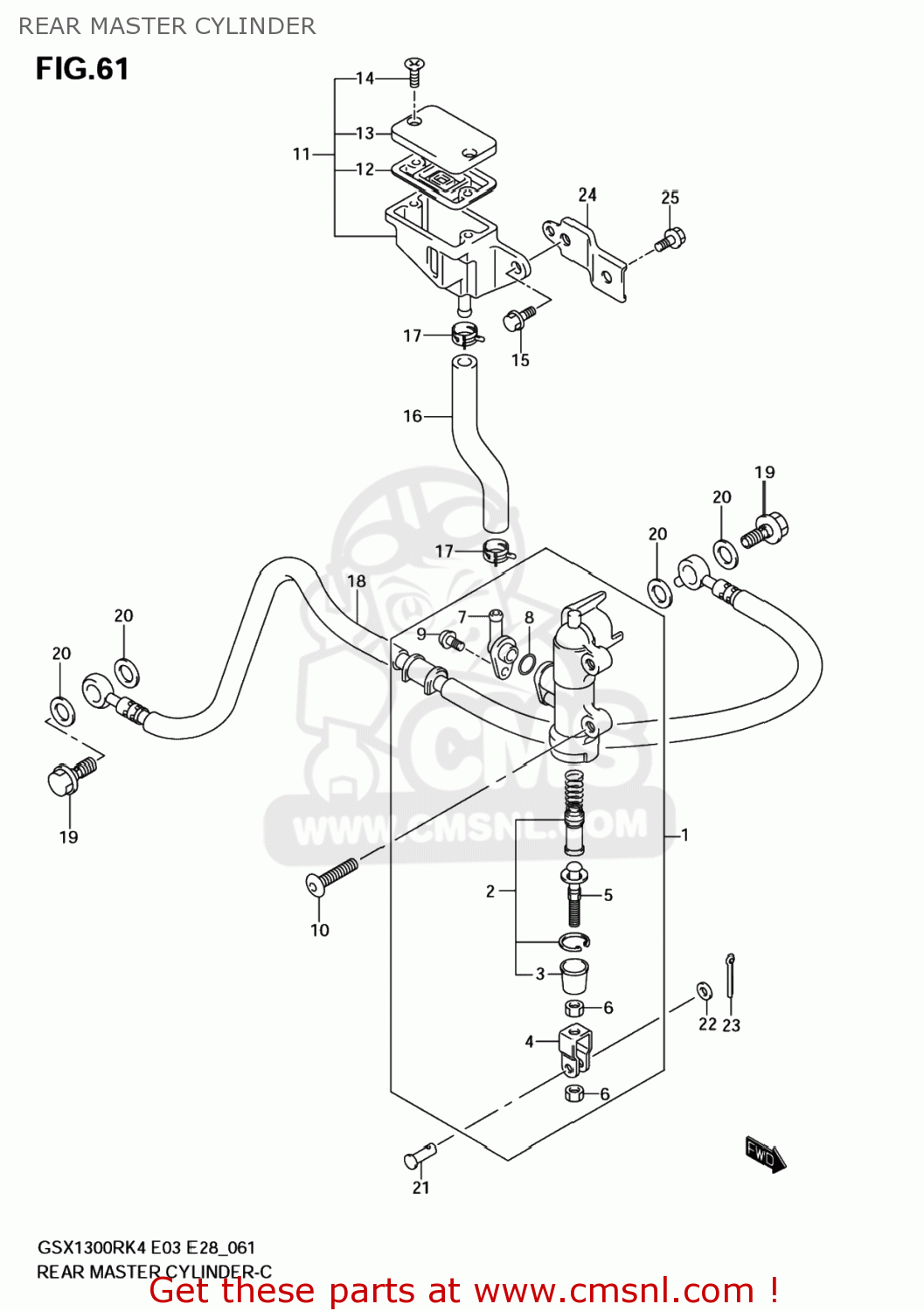

Rear master cylinder diagram GSX1300R HAYABUSA 2007 (K7) USA (E03)

REAR MASTER CYLINDER GSX1300R HAYABUSA 2007 (K7) USA (E03)
REAR MASTER CYLINDER GSX1300R HAYABUSA 2007 (K7) USA (E03)
REAR MASTER CYLINDER GSX1300R HAYABUSA 2007 (K7) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6960033C00
ref: 1
CYLINDER ASSY,RR MASTER
6960033C00
€ 194.50
2
6960004820
ref: 2
PISTON/CUP SET
6960004820
€ 31.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6969227A30
ref: 4
YOKE
6969227A30
€ 12.50
5
6967048B00
ref: 5
ROD,PUSH
6967048B00
€ 20.50
6
6969305A00
ref: 6
NUT
6969305A00
€ 1.50
7
6967205A00
ref: 7
CONNECTOR
6967205A00
€ 4.50
8
6968634200
ref: 8
O RING
6968634200
€ 3.50
9
0211274123
ref: 9
02112-7412A
SCREW
€ 2.50
10
0913906028
ref: 10
SCREW(6X20)
0913906028
€ 3.50
11
6974001D02
ref: 11
TANK ASSY,RR RESERVOIR
6974001D02
€ 58.00
12
5966704700
ref: 12
DIAPHRAGM
5966704700
€ 8.00
13
5966905D00
ref: 13
CAP
5966905D00
€ 13.50
14
6968904A00
ref: 14
SCREW
6968904A00
€ 2.00
15-1
0155006123
ref: 15-1
01550-0612A
BOLT
0155006123
€ 2.50
15-2
015500612B
ref: 15-2
BOLT
015500612B
€ 2.50
16
6973124F00
ref: 16
HOSE,RESERVOIR TANK
€ 13.00
17
0940113417
ref: 17
CLIP
0940113417
€ 2.50
18
6948024F01
ref: 18
69480-24F02
HOSE,REAR BRAKE
6948024F01
€ 109.50
19
0936010041
ref: 19
09360-10061
BOLT UNION
€ 6.50
20
0916110009
ref: 20
WASHER(10X15X1.5)
0916110009
€ 2.00
21
0920006037
ref: 21
09200-06068
PIN
0920006037
€ 5.00
22-1
0832201063
ref: 22-1
08322-0106B
WASHER
0832201063
€ 2.00
22-2
083220106B
ref: 22-2
WASHER
083220106B
€ 2.00
23-1
0411120158
ref: 23-1
04111-2015A
PIN
0411120158
€ 1.50
23-2
041112015A
ref: 23-2
PIN
041112015A
€ 1.50
24
6975024F00
ref: 24
BRACKET,RR RESERVOIR TANK
€ 8.50
25-1
0155006123
ref: 25-1
01550-0612A
BOLT
0155006123
€ 2.50
25-2
015500612B
ref: 25-2
BOLT
015500612B
€ 2.50
