MAGNETO

GSX1300R HAYABUSA 2007 (K7) USA (E03)

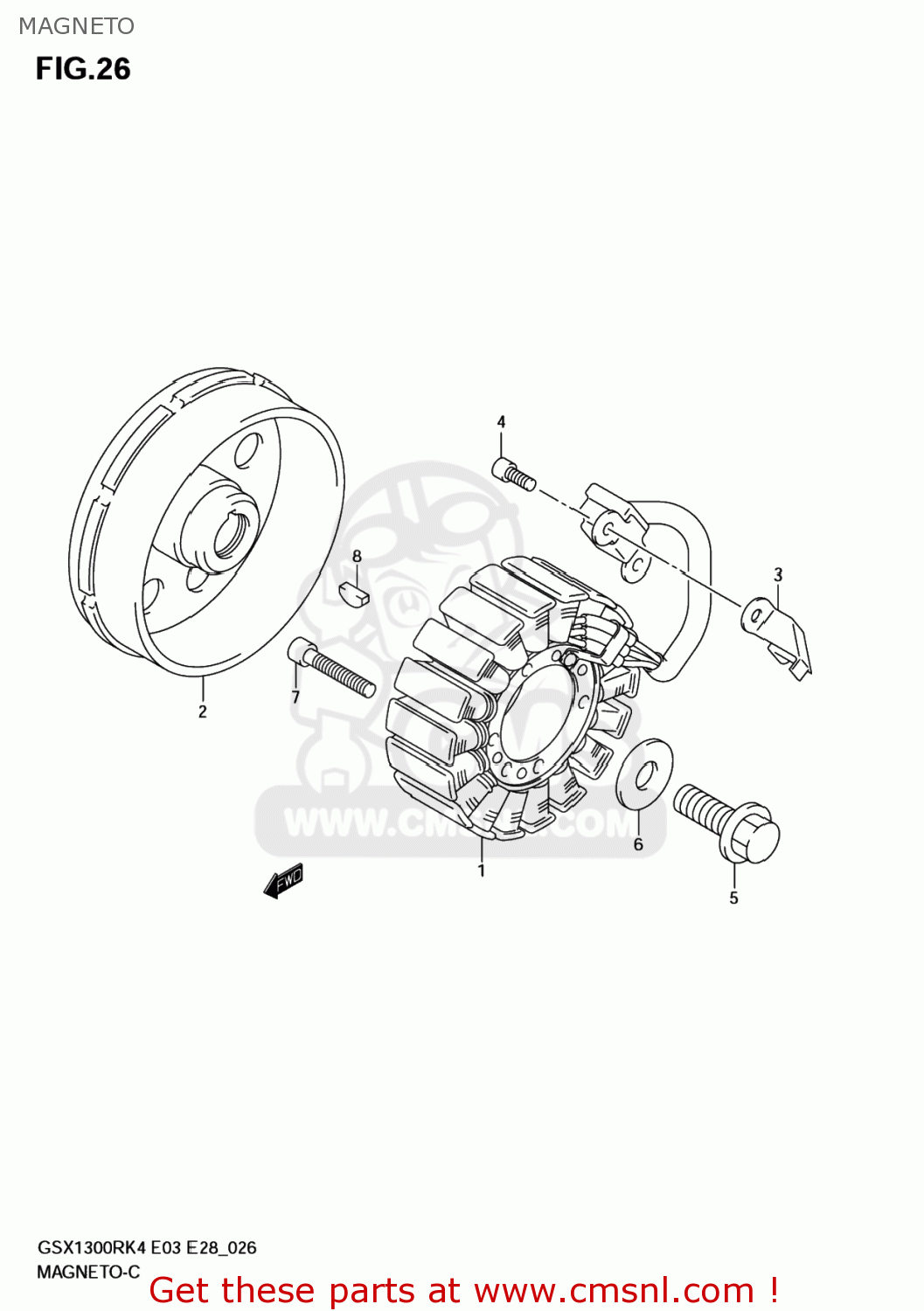

Magneto diagram GSX1300R HAYABUSA 2007 (K7) USA (E03)

MAGNETO GSX1300R HAYABUSA 2007 (K7) USA (E03)

MAGNETO GSX1300R HAYABUSA 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210124F10
ref: 1

STARTER ASSY

€ 591.00

2

3210224F10
ref: 2

ROTOR ASSY

€ 672.00

3

3237124F00
ref: 3

CLAMP,MAGNETO LEAD

€ 4.00

4

071300512B
ref: 4

BOLT

€ 2.50

5

0910312028
ref: 5

BOLT(12X30)

€ 5.00

6

0916012036
ref: 6

WASHER(12X30X3)

€ 3.00

7

071300635B
ref: 7

BOLT

€ 3.50

8

0942004008
ref: 8

KEY

€ 3.50
