WATER PUMP
GSX1300R HAYABUSA 2007 (K7) USA (E03)

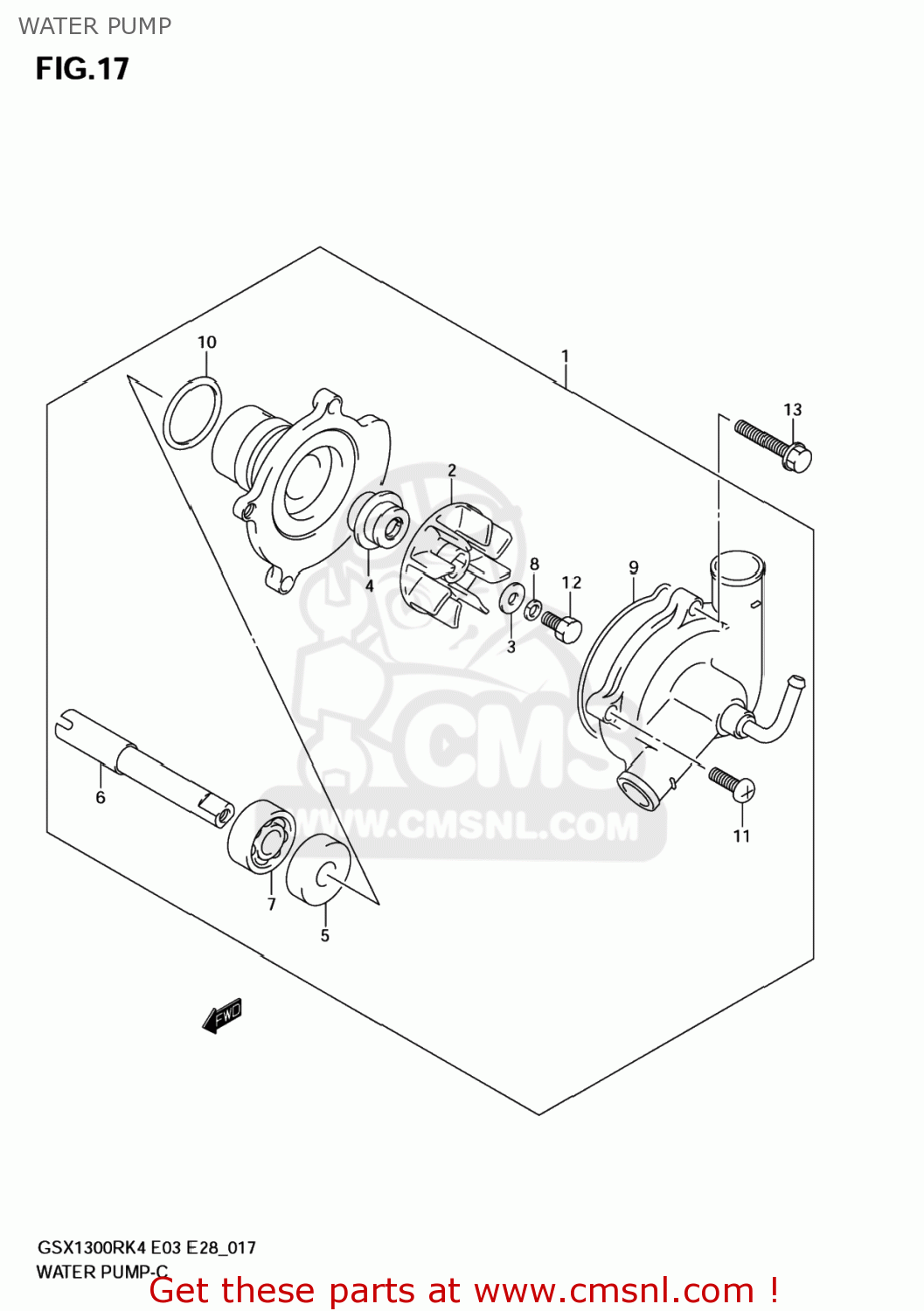

Water pump diagram GSX1300R HAYABUSA 2007 (K7) USA (E03)
WATER PUMP GSX1300R HAYABUSA 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1740024F00
ref: 1
17400-24F10
PUMP ASSEMBLY,WATER
€ 355.00
2
1749117E01
ref: 2
IMPELLER
€ 15.00
3
0916806025
ref: 3
GASKET(6X15X2.2) (NAS)
€ 3.00
4
1747002F00
ref: 4
SEAL,MECHANICAL
€ 21.50
5
0928310004
ref: 5
SEAL,OIL(10X21X5)
€ 4.50
6
1751124F00
ref: 6
SHAFT
€ 93.50
7
0926210014
ref: 7
BEARING(10X26X8)
€ 13.00
8
0916406006
ref: 8
WASHER
€ 2.50
9
1741833400
ref: 9
O RING
€ 4.00
10
1743533400
ref: 10
O RING,WATER PUMP HOLDER
€ 13.00
11
0211206163
ref: 11
02112-0616A
SCREW 6X16
€ 2.00
12
0910006099
ref: 12
BOLT(6X13)
€ 2.00
13
0154706353
ref: 13
01547-0635B
BOLT
€ 3.00
