OIL COOLER
GSX1300R HAYABUSA 2007 (K7) USA (E03)

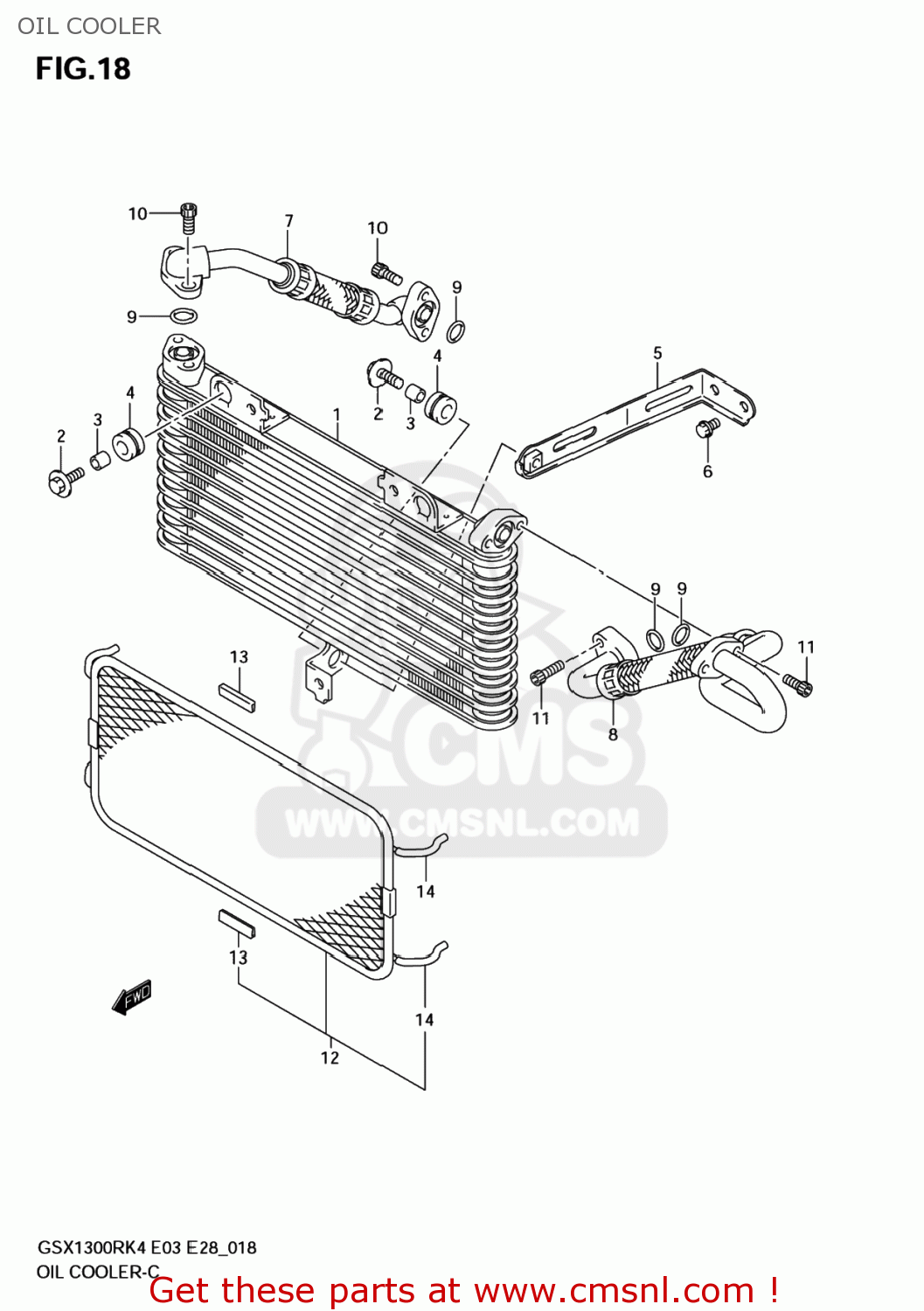

Oil cooler diagram GSX1300R HAYABUSA 2007 (K7) USA (E03)
OIL COOLER GSX1300R HAYABUSA 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1660024F10
ref: 1
COOLER ASSY,OIL
€ 1,032.50
2
0911606167
ref: 2
BOLT(6X20)
€ 2.00
3
0918006310
ref: 3
SPACER(6.5X10X10)
€ 2.00
4-1
0932010501
ref: 4-1
CUSHION
€ 5.50
4-2
0932010055
ref: 4-2
CUSHION
€ 3.50
5
1664024F00
ref: 5
BRACKET,OIL COOLER
€ 8.00
6
0154706123
ref: 6
01547-0612B
BOLT
€ 2.00
7
1646024F01
ref: 7
HOSE,OIL COOLER,R
€ 170.00
8
1647024F02
ref: 8
HOSE,OIL COOLER,L
€ 171.00
9
0928012012
ref: 9
O RING(D:2.4,ID:11.8)
€ 5.00
10
0910606096
ref: 10
BOLT(6X20)
€ 4.00
11
0910606097
ref: 11
BOLT(6X20)
€ 3.00
12
1665024F01
ref: 12
GUARD,OIL COOLER
€ 57.00
13
1776509F00
ref: 13
PROTECTOR,CTR
€ 2.50
14
0935230503600
ref: 14
HOSE(3X5X600)
€ 8.00
