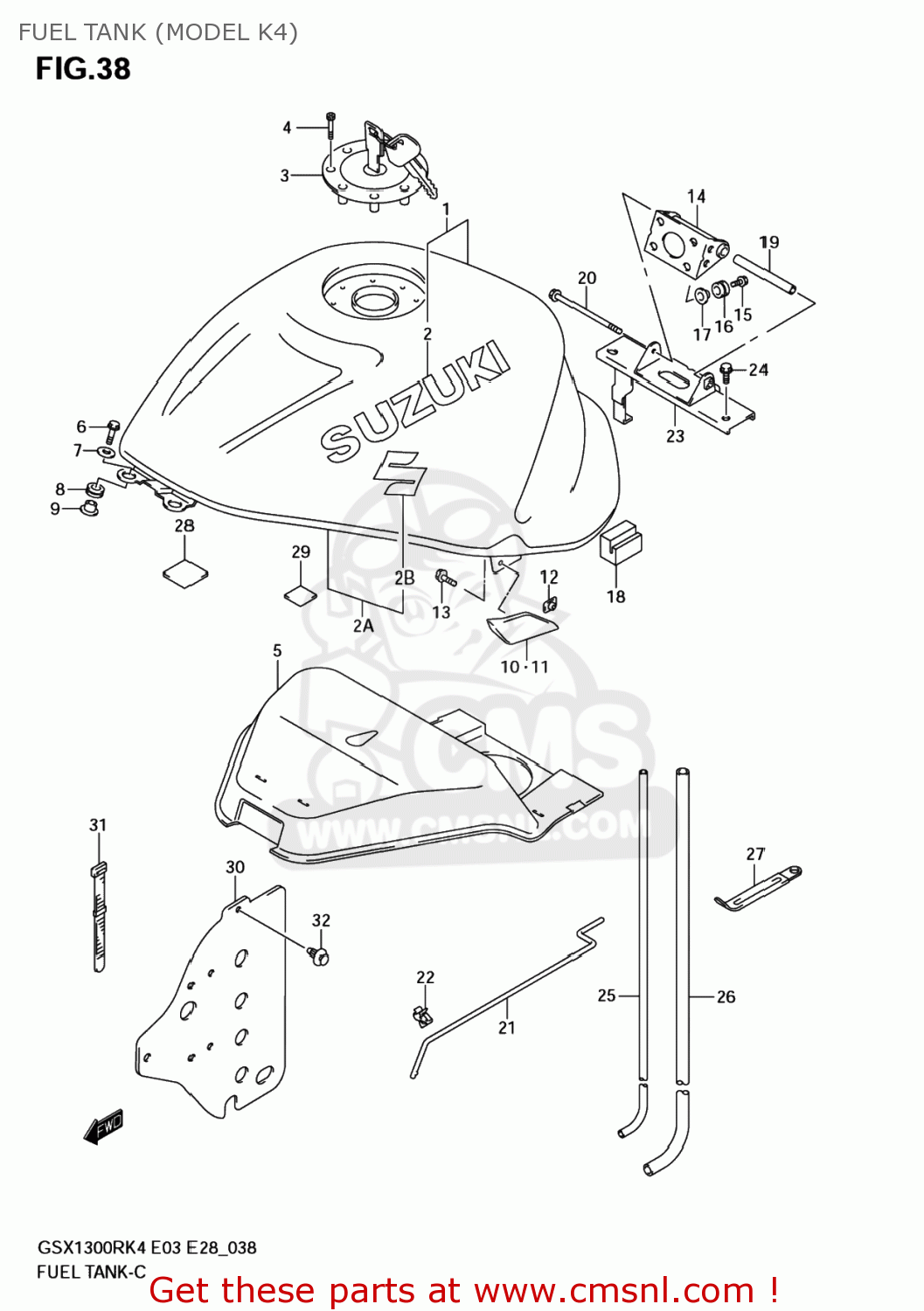

FUEL TANK (MODEL K4)

ref

part #

description

quantity

1-1

4410024FC0NY2
ref: 1-1

TANK ASSY,FUEL

€ 0.00

1-2

4410024FC0NY3
ref: 1-2

TANK ASSY,FUEL

€ 0.00

1-3

4410024FC0NY4
ref: 1-3

TANK ASSY,FUEL

€ 0.00

1-4

4410024FD0NY2
ref: 1-4

TANK ASSY,FUEL

€ 0.00

1-5

4410024FD0NY3
ref: 1-5

TANK ASSY, FUEL GSX1300R E33

€ 0.00

1-6

4410024FD0NY4
ref: 1-6

TANK ASSY,FUEL

€ 0.00

2

6811124F000AT
ref: 2

EMBLEM,FUEL TANK

€ 28.00

2B

6811118G10
ref: 2B

EMBLEM,S

€ 16.50

2A-1

4410024FK0YU7
ref: 2A-1

TANK ASSY,FUEL(RED)

€ 936.50

2A-2

4410024FM0YU7
ref: 2A-2

TANK ASSY,FUEL

€ 936.50

2A-3

4410024FL0YU7
ref: 2A-3

TANK ASSY,FUEL(RED)

€ 936.50

3-1

4420133810
ref: 3-1

CAP SET,FUEL TANK

€ 234.50

3-2

4420033890
ref: 3-2

CAP ASSY,FUEL TANK FILLER

€ 0.00

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

4419124F10
ref: 5

SHIELD,FUEL TANK HEAT

€ 300.50

6

0913906029
ref: 6

SCREW(6X25)

€ 5.00

7

0916006036
ref: 7

WASHER(6.5X18X1.5)

€ 1.50

8

0932009009
ref: 8

CUSHION

€ 5.00

9

0916906062
ref: 9

WASHER

€ 3.00

10

4453324F00
ref: 10

COVER,FUEL TANK SIDE,R

€ 17.00

11

4454324F00
ref: 11

COVER,FUEL TANK SIDE,L

€ 16.50

12

4454024F10
ref: 12

PLATE,FUEL TANK SIDE

€ 11.00

13

0214206103
ref: 13
02142-0610A

SCREW 6X10

€ 2.00

14

4456024F01
ref: 14

BRACKET,FUEL TANK RR NO.1

€ 23.50

15

0911606152
ref: 15

BOLT(6X20)

€ 2.00

16

0932008001
ref: 16

CUSHION

€ 3.50

17

0916906062
ref: 17

WASHER

€ 3.00

18

4454124F00
ref: 18

CUSHION,FUEL TANK SIDE

€ 6.00

19

4456133E10
ref: 19

SPACER,FUEL TANK RR

€ 19.00

20

0155008953
ref: 20
01550-0895A

BOLT

€ 3.50

21

4457433E01
ref: 21

STAY,FUEL TANK

€ 13.50

22

0940305310
ref: 22

CLAMP

€ 4.50

23

4455024F00
ref: 23

BRACKET,FUEL TANK RR NO.2

€ 37.50

24

0155008123
ref: 24
01550-0812A

BOLT

€ 3.50

25

4442324F00
ref: 25

HOSE,FUELTANK BREATHER

€ 10.00

26

0935270113600
ref: 26

HOSE(7X11X600)

€ 17.50

27

0940406433
ref: 27

CLAMP(L:80)

€ 3.00

28

4453424F00
ref: 28

CUSHION

€ 3.00

29

4453524F00
ref: 29
44534-24F00

CUSHION,FUEL TANK COVER

€ 3.00

30

4427124F00
ref: 30

SHEET,HEAT SHIELD RUBBER

€ 51.00

31

0940718402
ref: 31

CLAMP(L:165)

€ 2.50

32

09409063225PK
ref: 32

CLIP(BLACK)

€ 3.00
