TURNSIGNAL LAMP (MODEL K5/K6/K7)

GSX1300R HAYABUSA 2007 (K7) USA (E03)

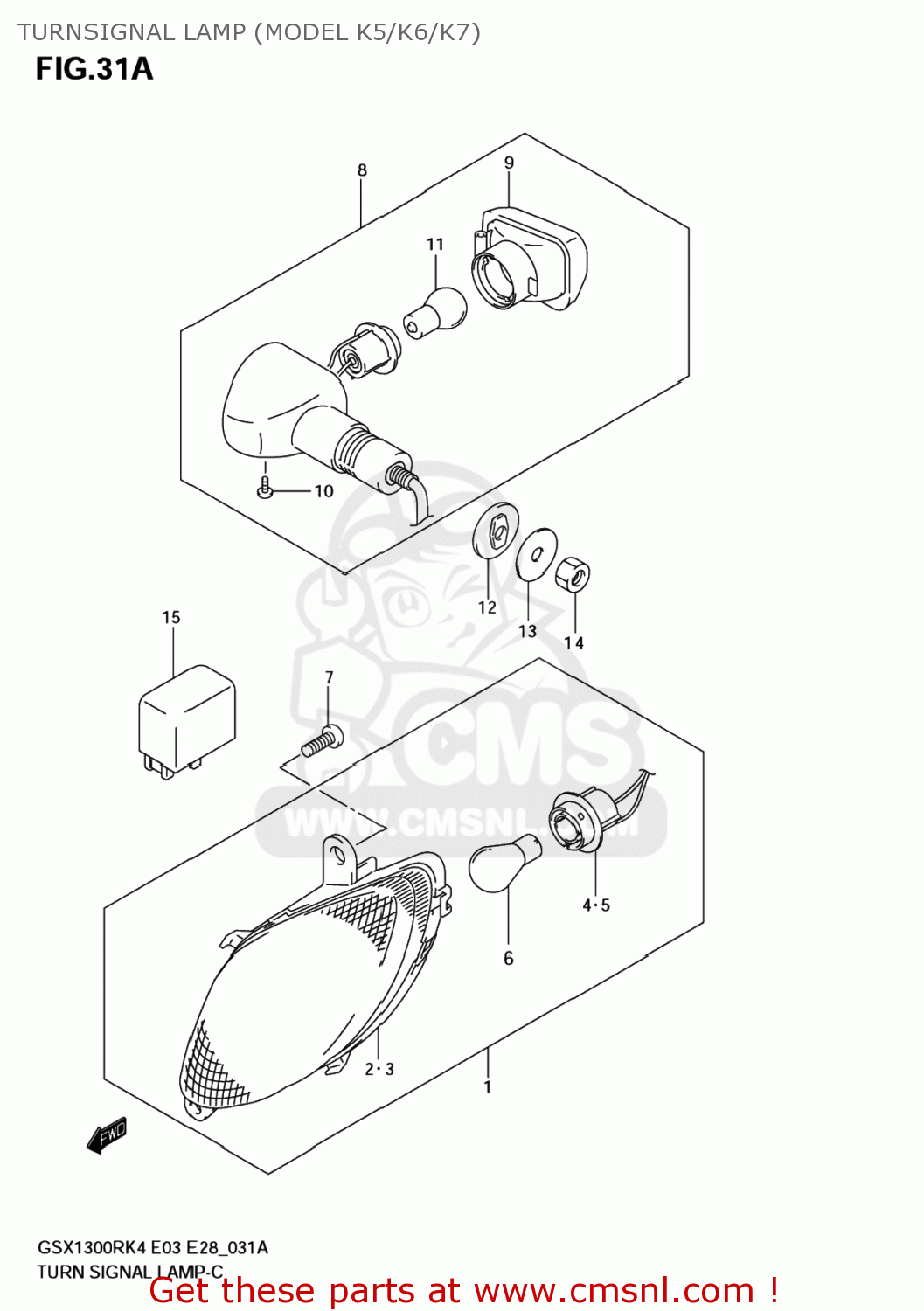

Turnsignal lamp (model k5/k6/k7) diagram GSX1300R HAYABUSA 2007 (K7) USA (E03)

TURNSIGNAL LAMP (MODEL K5/K6/K7) GSX1300R HAYABUSA 2007 (K7) USA (E03)

TURNSIGNAL LAMP (MODEL K5/K6/K7) GSX1300R HAYABUSA 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3560124F10
ref: 1-1

LAMP ASSY,FR TURN SIGNAL,R

€ 88.50

1-2

3560224F10
ref: 1-2

LAMP ASSY,FR TURN SIGNAL,L

€ 65.00

2

3561024F10
ref: 2

LAMP UNIT,R

€ 47.50

3

3563024F10
ref: 3

LAMP UNIT,L

€ 42.00

4

3561824F10
ref: 4

SOCKET & CORD,R

€ 25.50

5

3563824F10
ref: 5

SOCKET & CORD,L

€ 25.50

6

0947112186
ref: 6

BULB(12V21W,AMBER)

€ 2.50

7

035410516B
ref: 7

SCREW

€ 2.00

8-1

3560324F30
ref: 8-1

LAMP ASSY,RR TURNSIGNAL,R

€ 110.00

8-2

3560424F30
ref: 8-2

LAMP ASSY,RR TURNSIGNAL,L

€ 75.50

9

3561024F30
ref: 9

LAMP UNIT

€ 48.00

10

0324204123
ref: 10
03242-0412B

SCREW

€ 2.00

11

0947112186
ref: 11

BULB(12V21W,AMBER)

€ 2.50

12

3569517C00
ref: 12

SPACER,RR TURNSIGNAL

€ 3.00

13

0916010501
ref: 13

WASHER(10.5X30X2.3)

€ 2.50

14

083100010B
ref: 14

NUT

€ 2.00

15

3861003F00
ref: 15

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50
