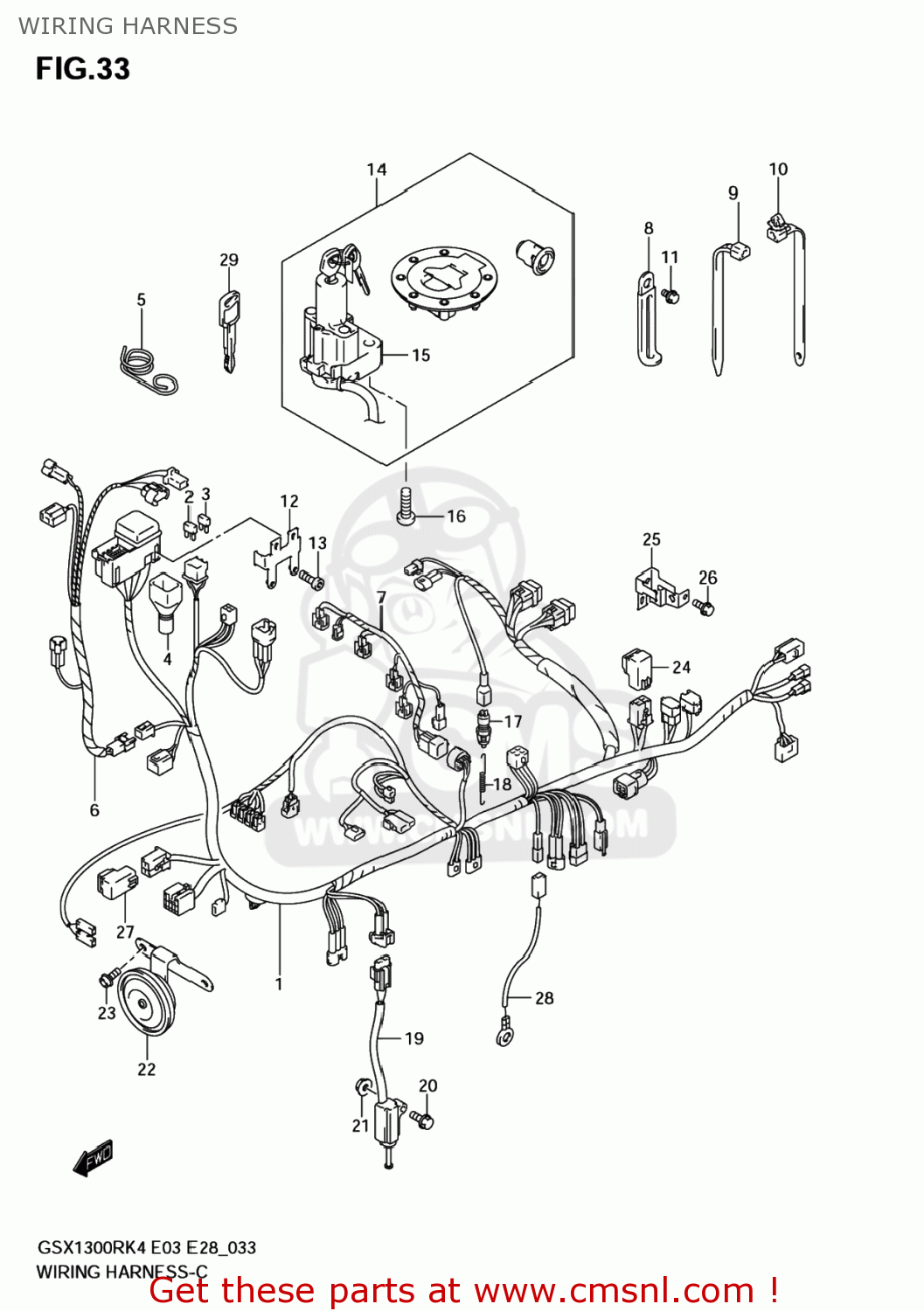

WIRING HARNESS

ref

part #

description

quantity

1-1

3661024F70
ref: 1-1

HARNESS,WIRING

€ 0.00

1-2

3661024F90
ref: 1-2

HARNESS,WIRING

€ 0.00

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3

0948115501
ref: 3

FUSE(15A)

€ 1.00

4

3661833E00
ref: 4

COVER,SPEEDOMETER COUPLER

€ 5.50

5

3661924F00
ref: 5

GUIDE,WIRING HARNESS

€ 7.00

6

3662024F10
ref: 6

HARNESS,WIRING NO.2

€ 155.00

7

3685624F10
ref: 7

WIRE,INJECTOR LEAD

€ 101.00

8-1

0940406429
ref: 8-1

CLAMP(L:45)

€ 2.50

8-2

0940406431
ref: 8-2
09404-06432

CLAMP(L:65)

€ 2.50

8-3

0940406433
ref: 8-3

CLAMP(L:80)

€ 3.00

9-1

0940714403
ref: 9-1

CLAMP(L:125)

€ 2.50

9-2

0940718402
ref: 9-2

CLAMP(L:165)

€ 2.50

10-1

0940711402
ref: 10-1

CLAMP(L:90)

€ 2.50

10-2

0940714408
ref: 10-2
09407-17402

CLAMP(L:120)

€ 5.00

11

015500610B
ref: 11

BOLT

€ 2.50

12

3674424F00
ref: 12

BRACKET,FUSE BOX

€ 7.50

13

071200510B
ref: 13

BOLT

€ 2.00

14-1

3700024810
ref: 14-1

LOCK SET

€ 508.00

14-2

3700024830
ref: 14-2

LOCK SET

€ 0.00

15

3710024F00
ref: 15

LOCK ASSY,STEERING

€ 225.00

16

0913908016
ref: 16

BOLT(8X20)

€ 3.50

17

3774024A00
ref: 17

SWITCH ASSY,STOP LAMP

€ 20.50

18

0944306012
ref: 18

SPRING

€ 3.00

19

3784024F00
ref: 19

SWITCH ASSY,SIDE STAND

€ 63.50

20

0910308357
ref: 20

BOLT(8X35)

€ 2.00

21

083161008B
ref: 21

NUT

€ 3.00

22

3850024F00
ref: 22

HORN ASSY

€ 83.00

23

071200612B
ref: 23

BOLT

€ 3.50

24

3874026E00
ref: 24

RELAY ASSY

€ 32.50

25

3874124F00
ref: 25

BRACKET,FUEL PUMP RLY

€ 5.00

26

015500612B
ref: 26

BOLT

€ 2.50

27

3874026E00
ref: 27

RELAY ASSY

€ 32.50

28

3685117E10
ref: 28

WIRE,OIL PRESSURE SWITCH LEAD

€ 13.50

29

3714633E00
ref: 29

KEY,BLANK

€ 13.00

all assemblies
