REAR FENDER

GSX1300R HAYABUSA 2007 (K7) USA (E03)

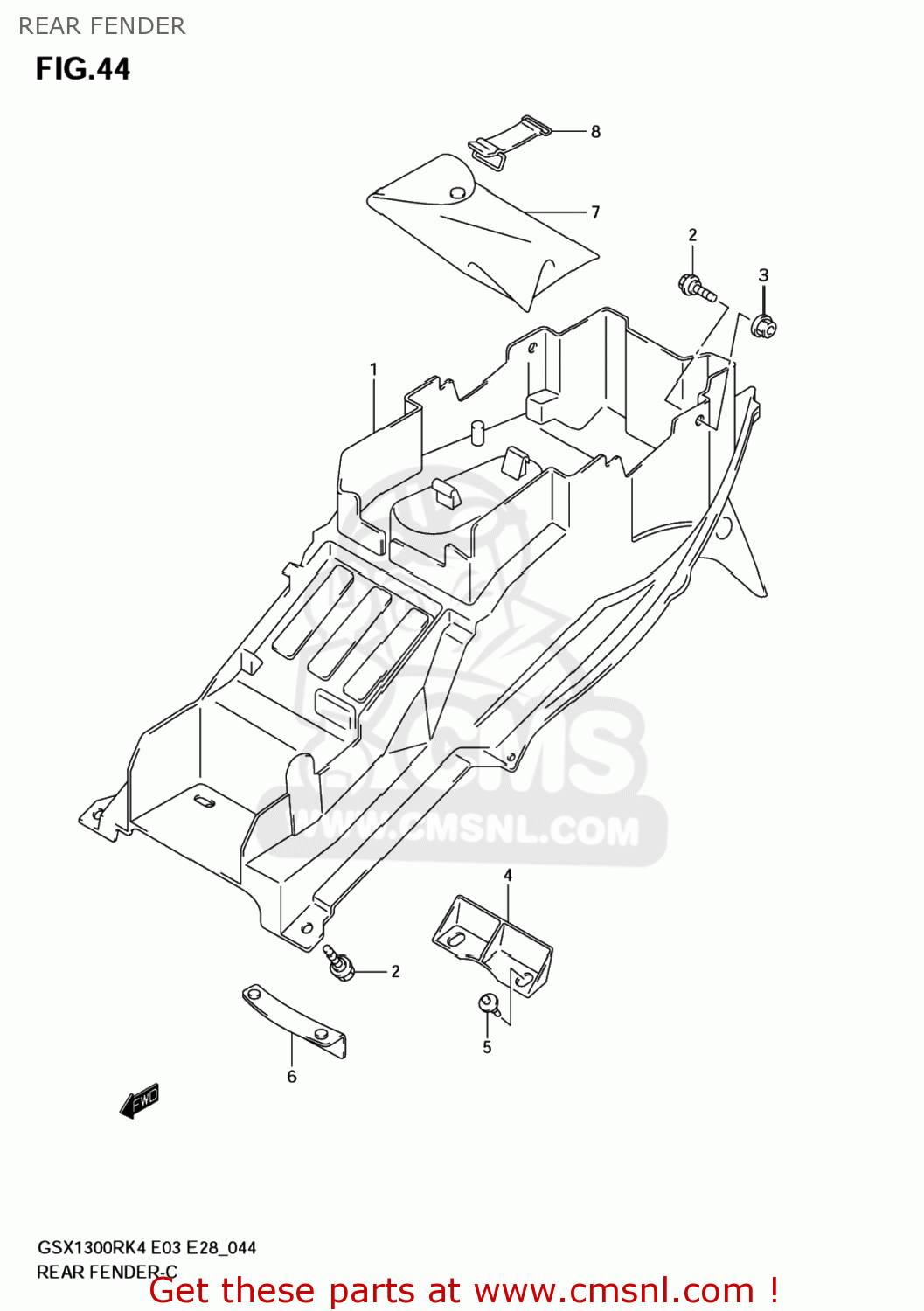

Rear fender diagram GSX1300R HAYABUSA 2007 (K7) USA (E03)

REAR FENDER GSX1300R HAYABUSA 2007 (K7) USA (E03)

REAR FENDER GSX1300R HAYABUSA 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311124F21
ref: 1

FENDER,RR

€ 139.00

2

0911306001
ref: 2

BOLT(6X16)

€ 3.00

3-1

0831610063
ref: 3-1
08316-1006B

NUT

€ 2.50

3-2

083161006B
ref: 3-2

NUT

€ 2.50

4

6341124F00
ref: 4

MUDGUARD,RR FENDER

€ 6.00

5

0940907333
ref: 5

CLIP

€ 2.50

6

6342124F00
ref: 6

MUDGUARD,RR FENDER FR UPR

€ 7.00

7

0980021039
ref: 7

TOOL ASSY

€ 73.00

8

0946200093
ref: 8

BAND

€ 8.50
