ELECTRICAL (GSX1300RAL4 E33)

GSX1300RA HAYABUSA 2014 (L4) USA (E03)

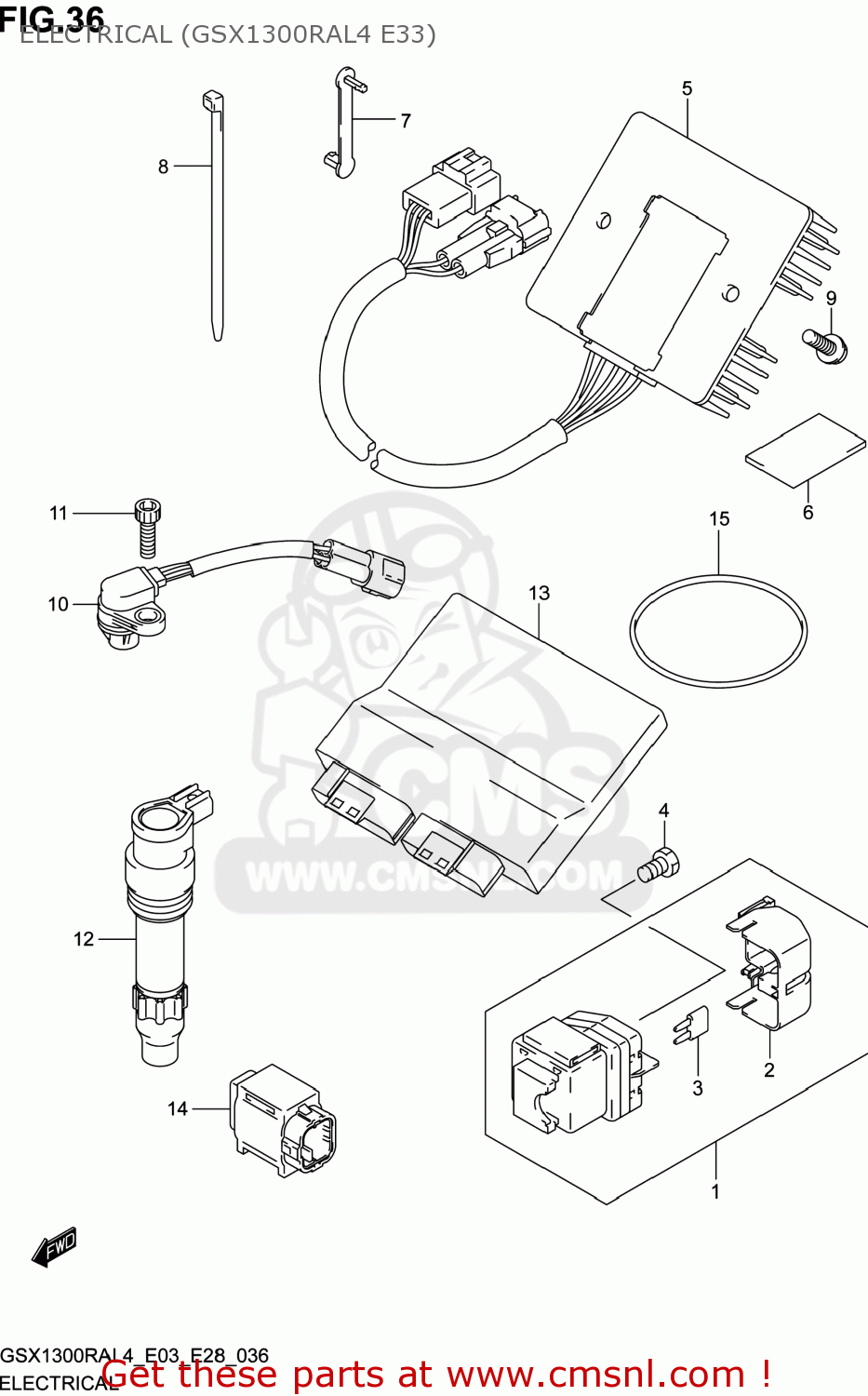

Electrical (gsx1300ral4 e33) diagram GSX1300RA HAYABUSA 2014 (L4) USA (E03)

ELECTRICAL (GSX1300RAL4 E33) GSX1300RA HAYABUSA 2014 (L4) USA (E03)
ELECTRICAL (GSX1300RAL4 E33) GSX1300RA HAYABUSA 2014 (L4) USA (E03)
ELECTRICAL (GSX1300RAL4 E33) GSX1300RA HAYABUSA 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3180044G00
ref: 1
RELAY ASSY,STARTING MOTOR
3180044G00
€ 77.50
2
3186138G00
ref: 2
COVER
3186138G00
€ 3.50
3
0948130501
ref: 3
FUSE(30A)
0948130501
€ 0.50
4
0912806013
ref: 4
SCREW(6X8)
0912806013
€ 1.50
5
3280010G40
ref: 5
RECTIFIER ASSY
3280010G40
€ 273.00
6
3365236000
ref: 6
CUSHION(30X50X3)
€ 5.00
7
3665148E00
ref: 7
CLAMP(L:63)
3665148E00
€ 2.50
8
0940714407
ref: 8
CLAMP(L:145)
0940714407
€ 4.00
9
021620616A
ref: 9
02162-0616B
SCREW
€ 1.50
10
3322001H00
ref: 10
SENSOR ASSY,CAM POSITION
3322001H00
€ 108.00
11
071300616A
ref: 11
07130-0616B
BOLT
071300616A
€ 3.00
12
3341024F10
ref: 12
COIL ASSY,IGNITION
€ 139.00
13
3292015H90
ref: 13
CONTROL UNIT,FI
€ 1,240.00
14
3396006G10
ref: 14
SENSOR ASSY,FUEL CUT
3396006G10
€ 75.00
15
0928076005
ref: 15
O RING(D:3.5,ID:76)
0928076005
€ 3.50
