REAR MASTER CYLINDER (GSX1300RAL4 E28)

GSX1300RA HAYABUSA 2014 (L4) USA (E03)

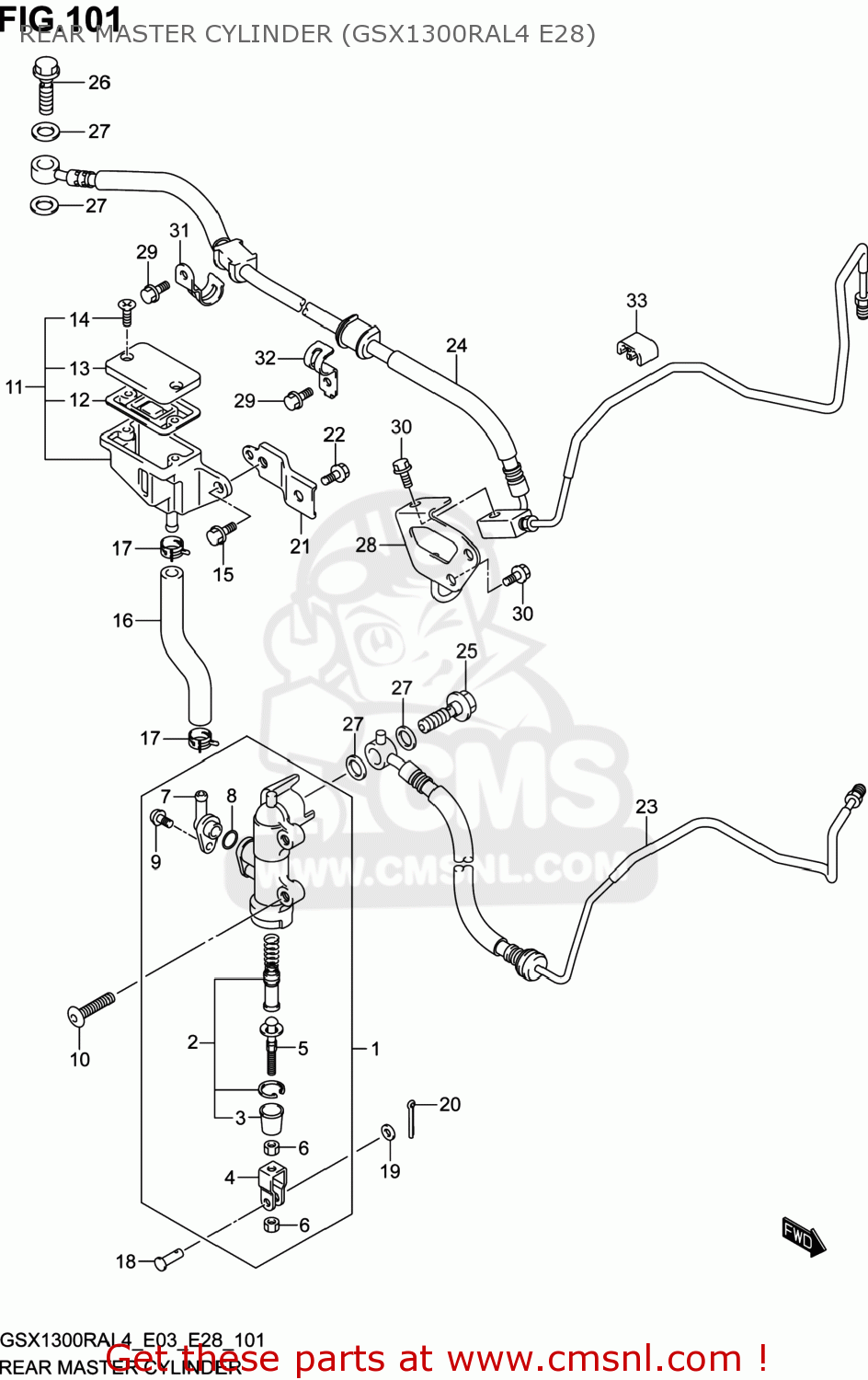

Rear master cylinder (gsx1300ral4 e28) diagram GSX1300RA HAYABUSA 2014 (L4) USA (E03)

REAR MASTER CYLINDER (GSX1300RAL4 E28) GSX1300RA HAYABUSA 2014 (L4) USA (E03)

REAR MASTER CYLINDER (GSX1300RAL4 E28) GSX1300RA HAYABUSA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6960015H00
ref: 1

CYLINDER ASSY,RR MASTER

€ 177.50

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969227A30
ref: 4

YOKE

€ 12.50

5

6967027A30
ref: 5

ROD,PUSH

€ 13.50

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967205A00
ref: 7

CONNECTOR

€ 4.50

8

6968634200
ref: 8

O RING

€ 3.50

9

021127412A
ref: 9

SCREW

€ 2.50

10

0913906028
ref: 10

SCREW(6X20)

€ 3.50

11

6974001D02
ref: 11

TANK ASSY,RR RESERVOIR

€ 58.00

12

5966704700
ref: 12

DIAPHRAGM

€ 8.00

13

5966905D00
ref: 13

CAP

€ 13.50

14

6968904A00
ref: 14

SCREW

€ 2.00

15

015470612A
ref: 15

BOLT

€ 2.00

16

6973124F00
ref: 16

HOSE,RESERVOIR TANK

€ 13.00

17

0940113417
ref: 17

CLIP

€ 2.50

18

0920006068
ref: 18

PIN(6X18.2)

€ 5.00

19

083220106A
ref: 19

WASHER

€ 2.00

20

041112015A
ref: 20

PIN

€ 1.50

21

6975015H00
ref: 21

BRACKET,RR RESERVOIR TANK

€ 8.50

22

015500612A
ref: 22

BOLT

€ 2.50

23

6920015H00
ref: 23

HOSE ASSY,RR BRAKE NO.1

€ 58.00

24

6940015H00
ref: 24

HOSE ASSY,RR BRAKE NO.2

€ 61.50

25

0936010061
ref: 25

BOLT UNION

€ 6.50

26

0936010062
ref: 26

BOLT UNION

€ 5.00

27

0916110009
ref: 27

WASHER(10X15X1.5)

€ 2.00

28

6926015H00
ref: 28

CLAMP,RR BRAKE HOSE

€ 6.50

29

015470612A
ref: 29

BOLT

€ 2.00

30

015470616A
ref: 30

BOLT

€ 2.00

31

6926815H00
ref: 31

CLAMP,RR BRAKE HOSE

€ 9.00

32

6927515H00
ref: 32

CLAMP,RR BRAKE HOSE NO.1

€ 4.00

33

0940306324
ref: 33

CLAMP

€ 2.50
